APPENDIX

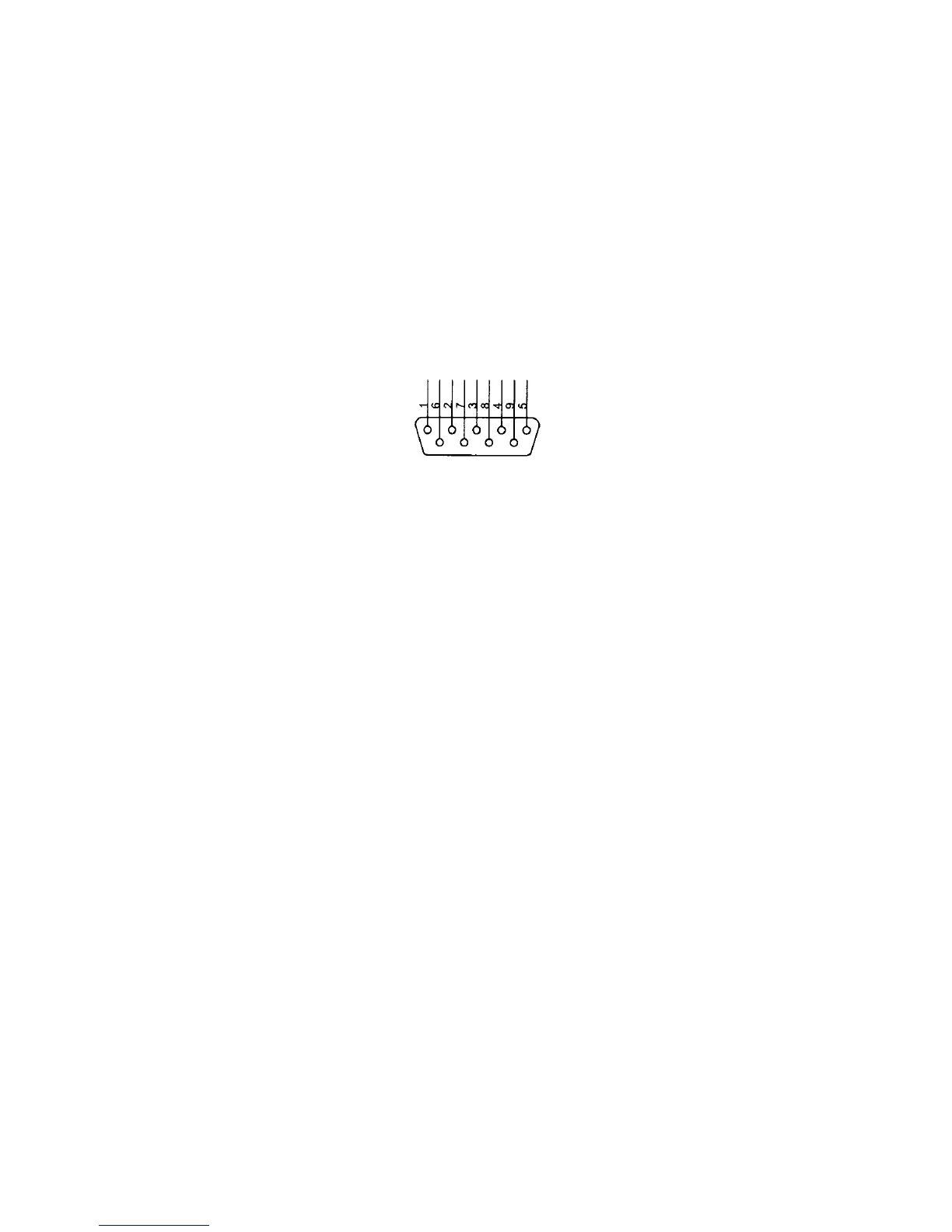

Here are described the “pin” of the connector labeled “REMOTE” placed on the back of the amplifier.
NOTE: the view is the one that appears from the back.
Pin n°: Description: Connect to the plug of the transceiver named:
-1 ALC OUT EXTERNAL ALC IN
-2 BAND DATA D BAND DATA D
-3 BAND DATA C BAND DATA C
-4 BAND DATA B BAND DATA B
-5 BAND DATA A BAND DATA A
-6 RELAY TX GND
-7 N.C. N.C.
-8 N.C. N.C.
-9 GND GND
NOTE: - the RCA plug labeled “ALC OUT” is connected also to the pin number 1;
- the RCA plug labeled “RELAY” is connected also to the pin number 6.
- use quality audio shielded cable.
