RFRemotech MS Series - Product Overview and Components; Transmitter Description

Contents
Warnings------------------------------------------------------------------------------------ P1
Contents------------------------------------------------------------------------------------- P2
A. Description---------------------------------------------------------------------------------------------- P2
1) Transmitters ------------------------------------------------------------------------- P2
2) Receiver ------------------------------------------------------------------------------ P3
3) Components-------------------------------------------------------------------------- P3
B. How the system works in Two Different Firing Modes------------------------------- P4
1) Use Transmitter A for Instant Firing mode----------------------------------------- P4
2) Use Transmitter B for Firing-In-Sequence Mode---------------------------------- P4
C. Before Attaching E-matches/Igniters-------------------------------------------------- P4
1) Installing or Connecting Batteries-------------------------------------------------- P4
2) Safety Tests -------------------------------------------------------------------------- P4
D. Some Available Functions--------------------------------------------------------------- P5
Learn Codes / Clear Codes ------------------------------------------------------------- P5
Test--------------------------------------------------------------------------------------- P5
Arm--------------------------------------------------------------------------------------- P5
Wired Control Mode--------------------------------------------------------------------- P5
Low Power Alarm------------------------------------------------------------------------ P5
Digital Readout Meter------------------------------------------------------------------- P5
A. Description：
 FCC & CE certified.
 OOK (ASK) Wireless Radio, 433.92MHz.
 12 cues.
 Overload Protection.
 Reverse Protection.
 ID address code is visible.
 Learning Code, with more than one million address code combinations
.
 Two Firing Modes: Instant Firing and Firing In-Sequence.
 Output Component: MOSFets
 Dual powered: Either 6x AA internal batteries or
external SLA battery @ 12V. It may use 6V to 14V. The
Maximum firing current is 10A.
 Range 100m.
 May be used as a slave unit thru RS485 ports and a
MASTER unit (in 2013).
 Working temperature: From -10℃ to +50℃

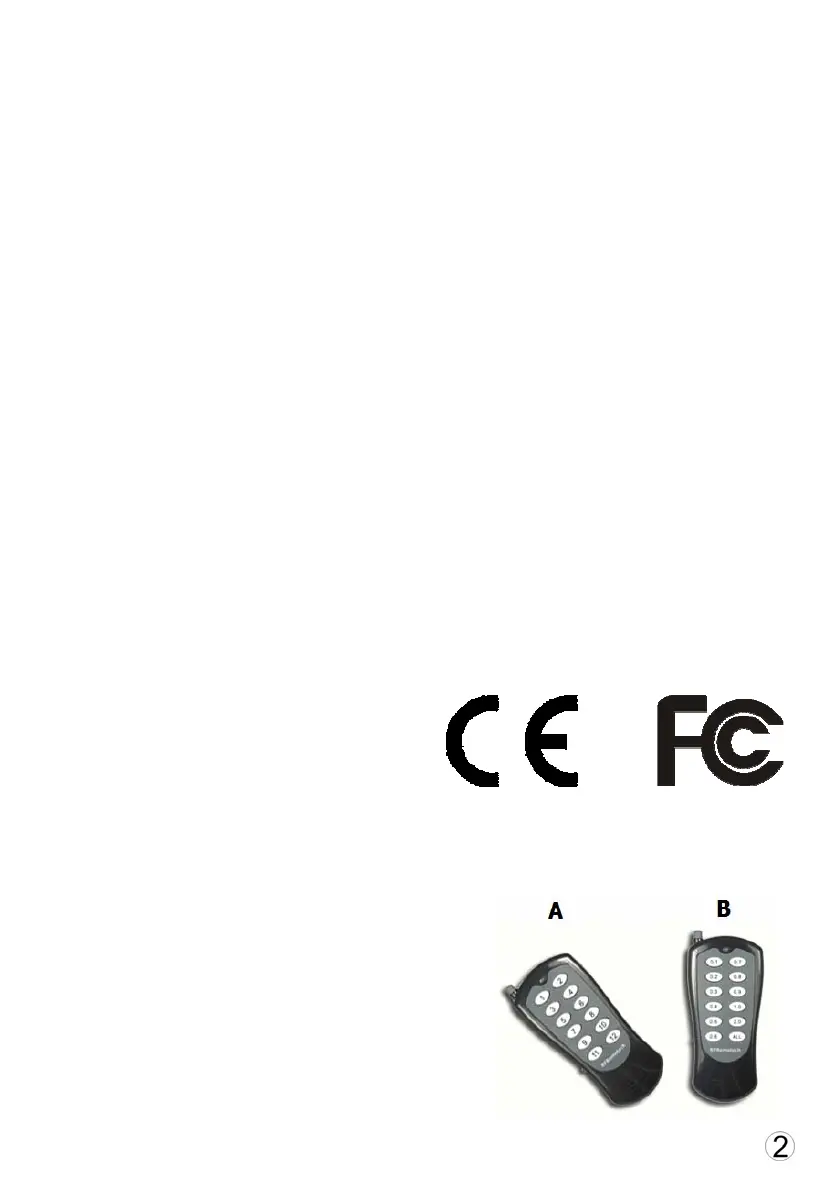

1) Transmitters:
 Model No.:
Transmitter A: TCF100-12LN, FCC/CE certified. Buttons
have 1, 2… 12.
Transmitter B: TCF100-12LNX, FCC/CE certified, Buttons have 0.1, 0.2 … 0.9, 1.0, 2.0, ALL.
