2) Receiver
Model No.: RF32C
Cue: 32 cues
Power:
Inner batteries: 10x AA battery,
rechargeable or not rechargeable
is available; battery enclosure
inside the receiver;
External batteries: 12-24VDC, SLA
batteries available.
Firing current: >750mA, Max. 15A
Test current: <40mA
Sizes: 236x144x45mm, antenna is
retractile and folded.

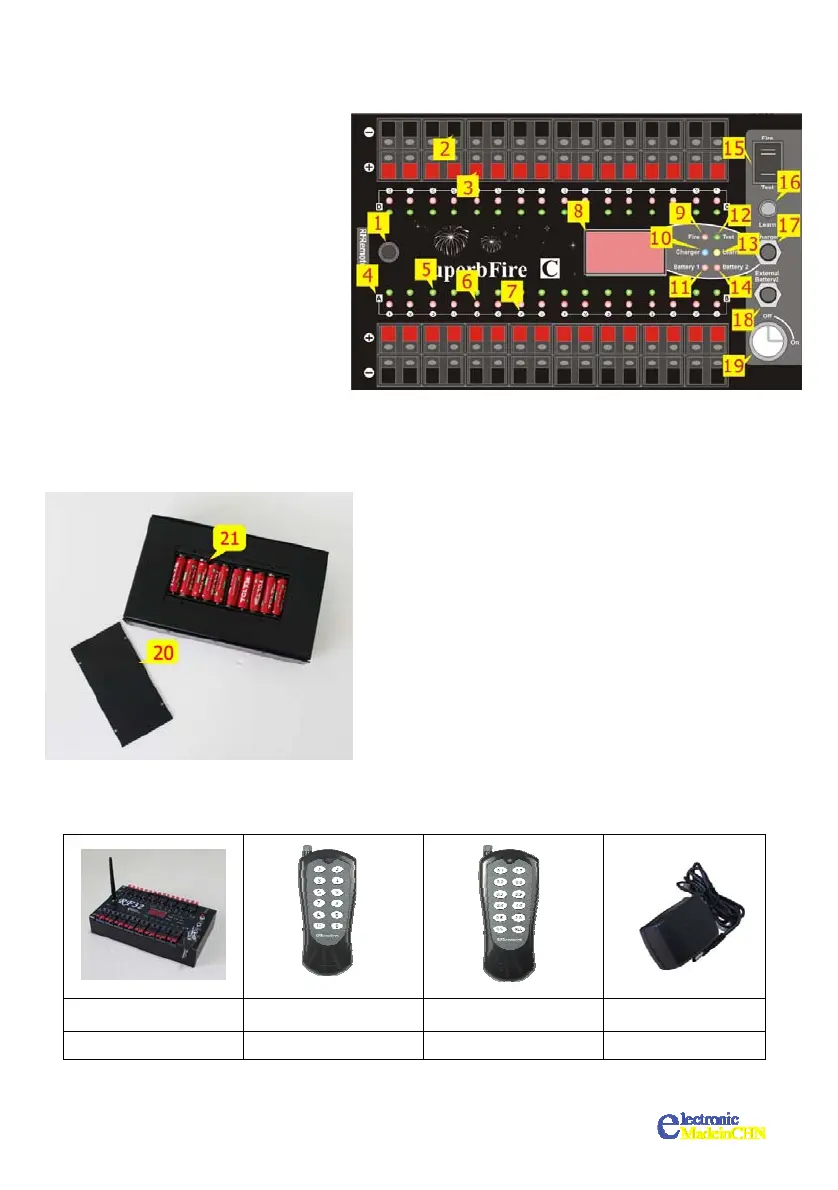

1- Whip Antenna
2- Fast Fastening Terminal, cathod
3- Fast Fastening Terminal, anode
4- Cue Group, total 4 groups-A,B,C & D,
each group includes 8 cues, total 32 cues
5- Cue Test LED, total 32 LEDs
6- Cue Fire LED, total 32 LEDs
7- Cue Sequence, works with the same sequence of button 1 to 8 in the transmitter TCL100-12LNABCD
8- Voltage Meter, indicate the voltage value of inner batteries, external batteries or charger
9- Fire Ready LED
10-Chargeing LED, available for inner batteries
11- Inner Battery 1 LED
12- Test Ready LED
13- Learning LED, for to learn transmitter
14- External Battery 2 LED
15- Rocker Switch, 3 positions, Test-
Continuity test;
Fire-channels are armed to fire, or receiver will learn
transmitter.
16- Learning Button. Only when Main Power Switch #19 is
on and Rocker Switch #15 is at Fire, Learning button can
work.
17- Charger Jack. When plug of charger is plugged in, power
will be cut off, inner batteries are being charged.
18- External Battery Jack. 6-27VDC are available. SLA
battery one or two pieces are recommanded
19- Main Switch, lock switch.
20- Battery Cover, can be screwed out
21- Battery Enclosure, for 10x AA battery, both normal
battery and rechargeable battery are available
3) Components:
RF32C
Transmitter A
TCF100-12LNABCD
Transmitter B
TCF100-12LNX
Charger
1 pcs, basic unit 1 pcs, basic unit 1 pcs, optional 1 pcs, optional
Page 3 of 6
