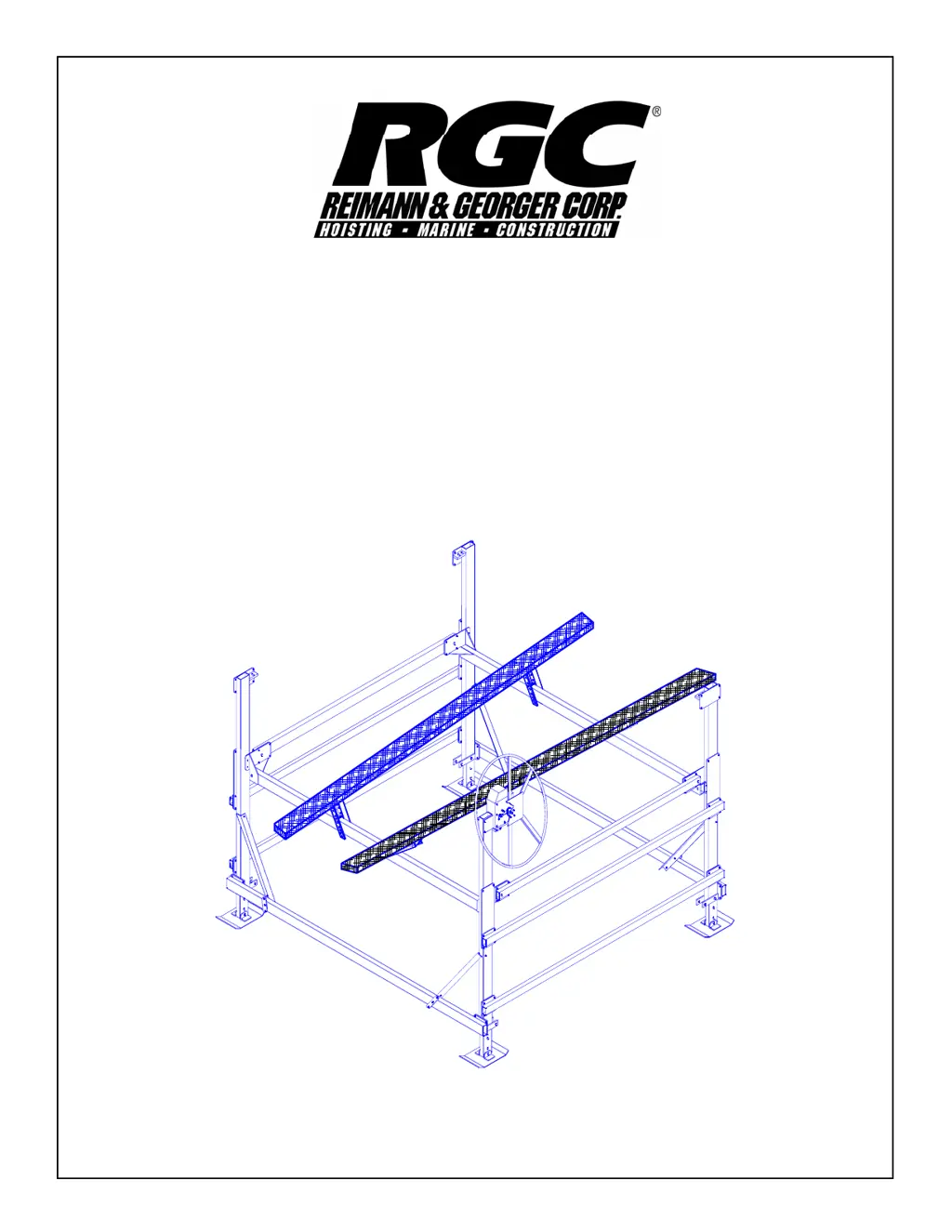

VL4000
VERTICAL LIFT
INSTRUCTIONS
REIMANN & GEORGER CORPORATION
MARINE PRODUCTS BUFFALO, NY
P/N 6112070 3/1/01

Table of Contents

Questions and Answers

  • M
    Miguel GreenAug 7, 2025
    What to do if my RGC VL4000 winch is operating properly, but platform raising is difficult?
    • B
      Brian KellyAug 7, 2025
      If the winch is working, but the platform is hard to raise, consider these possibilities: * The platform might be binding because the frame isn't square or level in the water. * There may be broken wires. * The sheaves are binding and need inspection, lubrication, or replacement. * Cables may be excessively worn and need replacing, following the wire rope inspection procedure. * The load might exceed the rated capacity, so reduce the weight. * User-installed locking devices may be in place and should be removed. * Auxiliary equipment might be improperly hung on the lift and should be removed permanently.
  • S
    shawchristopherAug 13, 2025
    Why is my RGC VL4000 Lifting Systems winch resisting platform raising?
    • M
      Michelle RobertsAug 14, 2025
      If the winch resists raising the platform, here are a few potential reasons: * The winch may have been reeved incorrectly and must turn clockwise to raise the platform. * The sheaves may be binding and need inspection, lubrication, or replacement. * The winch cable might be rubbing against the winch frame and the winch reeving should be repeated if necessary.
  • D
    David WilliamsAug 19, 2025
    What to do if lowering RGC Lifting Systems triggers a “freewheeling” of the handwheel?
    • M
      Monica JonesSep 12, 2025
      If lowering the platform causes the handwheel to “freewheel,” it could be due to: * The winch being reeved incorrectly (the winch must turn counterclockwise to lower the platform). * An unauthorized brake pawl release.
  • A
    amy75Aug 25, 2025
    Why is the boat shifting position when operating the RGC VL4000 Lifting Systems?
    • C
      cummingschristineAug 26, 2025
      If the boat shifts position when you operate the lift, it's likely because the boat isn't properly secured on the lift. Failure to properly secure the boat can cause equipment damage or serious personal injury.
  • A
    andrea25Aug 30, 2025
    How to fix a boat that is not lifting level on RGC VL4000 Lifting Systems?
    • M
      Michelle HallAug 31, 2025
      If the boat isn't lifting level (stern lifting higher or lower than the bow): * The frame isn't level in the water, so relocate pin connections between the adjustable and vertical legs. * The frame is level, but spreader tube cables aren't tight enough: tighten the cable stud nut to add tension to the B-C and A-D spreader tube cables. * Check that the B-C and A-D spreader tube cables are equal in tension and that the platform is level.

Summary

Safety

Introduction and Safety Definitions

Covers the manual's introduction, safety definitions, and alert symbols.

Equipment Safety Labels and Personnel Safety

Discusses safety labels and essential safety guidelines for equipment and personnel.

Installation Safety

Installation Safety Guidelines

Details safety procedures and precautions for lift installation.

Operating Safety

General Operating Safety

Covers general safety rules and precautions during lift operation.

Safety When Raising the Boat

Provides safety guidelines specific to raising the boat with the lift.

Safety When Lowering the Boat

Provides safety guidelines specific to lowering the boat with the lift.

Maintenance and Storage Safety

Guidelines for safe maintenance, repair, and storage of the lift.

Specifications

Technical Data and Identification

Details technical specifications, model, and serial number tag information.

Optional Equipment

Lists available optional equipment for customizing the lift.

Installation and Setup

Pre-Installation Checks and Preparation

Covers initial checks, warnings for electric drives, and preparation before assembly.

Vertical Leg Assembly

Instructions for assembling the vertical leg components and adjusting height.

Frame Side Assembly

Instructions for assembling the frame sides and ensuring squareness.

Platform Assembly

Details on assembling the platform load and spreader tubes.

Mounting Platform to Frame

Steps for securely mounting the assembled platform onto the lift frame.

Mounting Lower Diagonal Braces

Procedure for attaching the lower diagonal braces to the frame for stability.

Platform Reeving and Adjustment

Instructions for reeving cables and adjusting the platform for level lifting.

Winch and Handwheel Mounting

Steps for mounting the winch and attaching the handwheel and spinner knob.

Reeving the Winch

Detailed procedure for properly reeving the winch cable with safety warnings.

Moving Lift to Operating Position

Guidelines and precautions for safely moving the lift to its final position.

Frame Squaring Verification

Instructions for verifying the frame is square using diagonal measurements.

Operation

Before Operating the Lift

Key checks and safety precautions to follow before operating the lift.

Testing Winch Operation

Procedures for testing the winch's functionality and brake mechanism.

Raising and Lowering the Platform

Step-by-step guide for raising and lowering the lift platform safely.

Securing Lift When Not in Use

Instructions on how to secure the lift to prevent unauthorized use.

Inspection and Maintenance

General Maintenance Rules

Covers general rules for maintenance, repairs, and safety during these tasks.

Wire Rope Inspection Procedure

Detailed steps for inspecting wire rope for wear, damage, and defects.

Annual Inspection Procedure

Annual inspection checklist and critical safety warning before use.

Annual Winch Maintenance

Schedule and procedures for annual maintenance of the winch mechanism.

Storage Procedure

Guidelines for properly storing the lift to protect it from damage and the elements.

Troubleshooting

Winch Issues and Solutions

Common problems with winch operation and their corrective actions.

Platform Binding and Leveling Issues

Troubleshooting for difficult platform raising and uneven lifting.

Boat Shifting and Lowering Issues

Addresses boat shifting during operation and handwheel freewheeling during lowering.

Platform Height and Damage Issues

Troubleshooting for incorrect platform height and damage during operations.

Parts Lists

VL 40108 Bundle Parts

Lists parts for VL 40108 model bundles 1 and 2.

VL 40116 Bundle Parts

Lists parts for VL 40116 model bundles 1 and 2.

VL Bunks and Extension Legs

Parts lists for VL Bunks and VL Extension Legs.

Common Hardware and Handwheel Parts

Lists common hardware for VL 40108/40116 and parts for the VL Handwheel.

Limited Product Warranty

Consumer Product Provisions

Details the 2-year and 15-year limited warranties for consumer use.

Warranty Exclusions and Limitations

Covers exclusions, liability limits, statute of limitations, and warranty performance procedure.

Warranty Modification and Legal Rights

Manufacturer's right to modify, no authority to alter warranty, and specific legal rights.

Commercial Product Provisions

Commercial Warranty Terms

Details the 1-year and 5-year limited warranties for commercial use.

Commercial Warranty Exclusions

Lists exclusions from the commercial limited warranty.
