REFER TO WIRING DIAGRAM ON TRANSFORMER
120 208 240120 208 240
to 24VACto 24VAC
transformertransformer
(supplied)(supplied)
120 208 240
to 24VAC
transformer
(supplied)
All wire connections must be made within the provided enclosure
using wire-nuts or insulation tape with appropriate voltage ratings.
Unused wires must be individually capped off.
THIS EQUIPMENT MUST ONLY BE INSTALLED BY A QUALIFIED INSTALLER. CET
EQUIPEMENT DOIT ETRE INSTALLE UNIQUEMENT PAR UN INSTALLATEUR
QUALIFIE.
CAUTION: ENSURE THAT THE CERTIFIED CLASS 2 24V TRANSFORMER
PROVIDES AT LEAST 700mA FOR EACH UNIT INSTALLED ON THE CIRCUIT.
ATTENTION: ASSUREZ-VOUS QUE LE TRANSFORMATEUR 24V FOURNIT AU MOINS
700MA A CHAQUE APPAREIL INSTALLE SUR LE CIRCUIT.
IF MULTIPLE UNITS ARE INSTALLED ON A LARGER CAPACITY 24V TRANSFORMER
THE INSTALLER MUST PROVIDE AN ADEQUATE ENCLOSURE AS PER LOCAL CODES
AND REGULATIONS.
SI PLUSIEURS APPAREILS SONT INSTALLES SUR UN TRANSFORMATEUR 24 V DE
PLUS GRANDE CAPACITE, L'INSTALLATEUR DOIT FOURNIR UN ENCEINTE
ADEQUATE CONFORMEMENT AUX CODES ET REGLEMENTS LOCAUX.
5
RISQUE DE CHOC ELECTRIQUE. COUPER L'ALIMENTATION AVANT DE
CHANGER LA CELL-PHI.

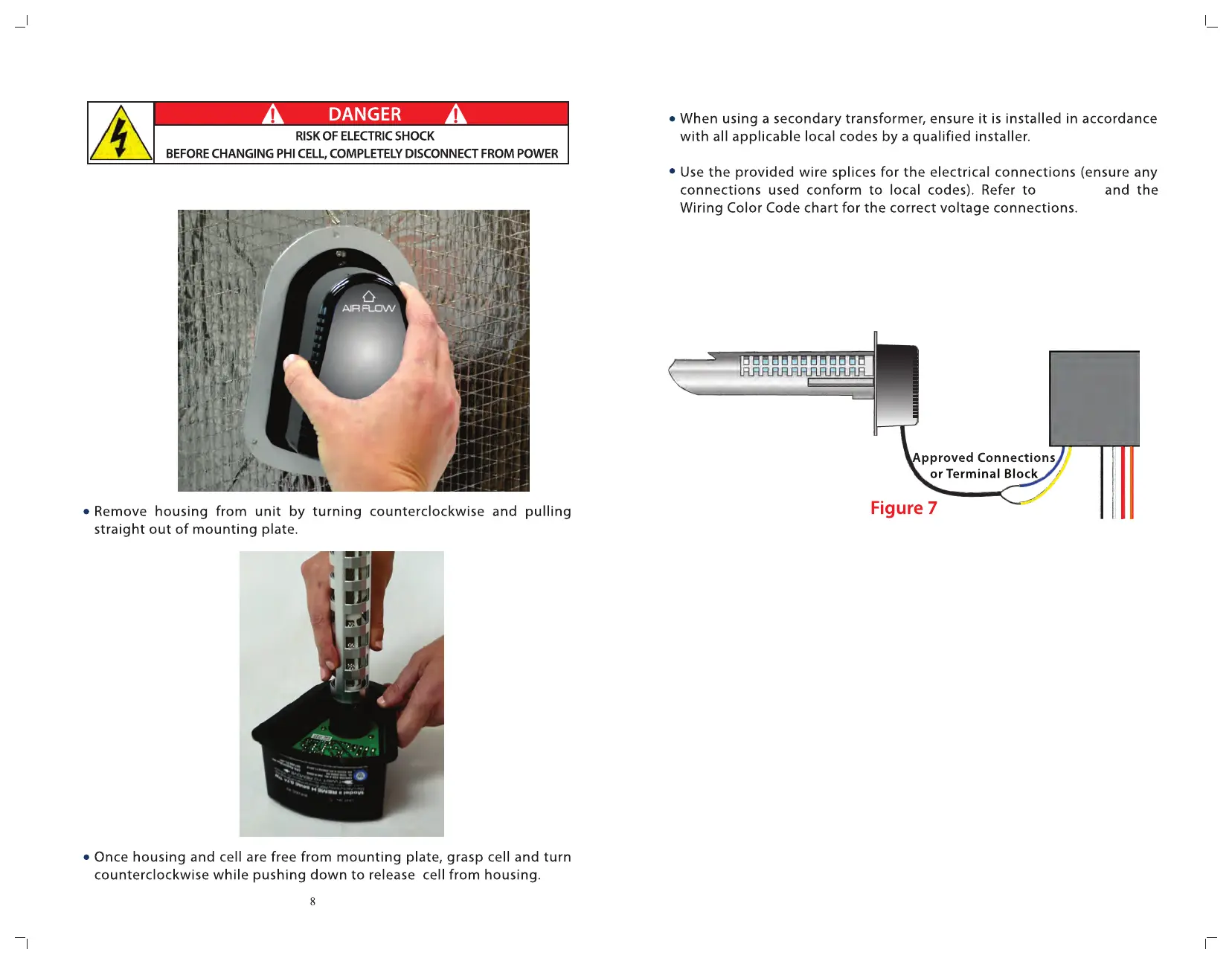

Replacing REME HALO®Zero Cell (Part # PHIC-RH-3)
REME HALO®Zero Unit
Input 24 VAC 700 mA to
the REME HALO®Zero Unit
3b. Electrical Connection (Secondary Transformer)
Figure 7
To Next Page
