11
SEE CRITICAL HOSE CLAMP
1/4” TUBE CUT
APPROXIMATLY 10-20° TILT
11a
APPROXIMATLY 10-20° TILT
LOCATION NOTE IN THE
GENERAL CONVERSION
INSTRUCTIONS.
HOSE D
I
N
11d
HOSE E
L
L
11c
1/4” TUBE CUT
TO FIT (APPROX
11e
10°
ON INDUCER COUPLING
ROTATE INDUCER COUPLING TO ENSURE
DOWNWARD FLOW OF CONDENSATE FROM
-2010°
ON INDUCER COUPLING
GROUND
ROTATE INDUCER COUPLING TO ENSURE
DOWNWARD FLOW OF CONDENSATE FROM

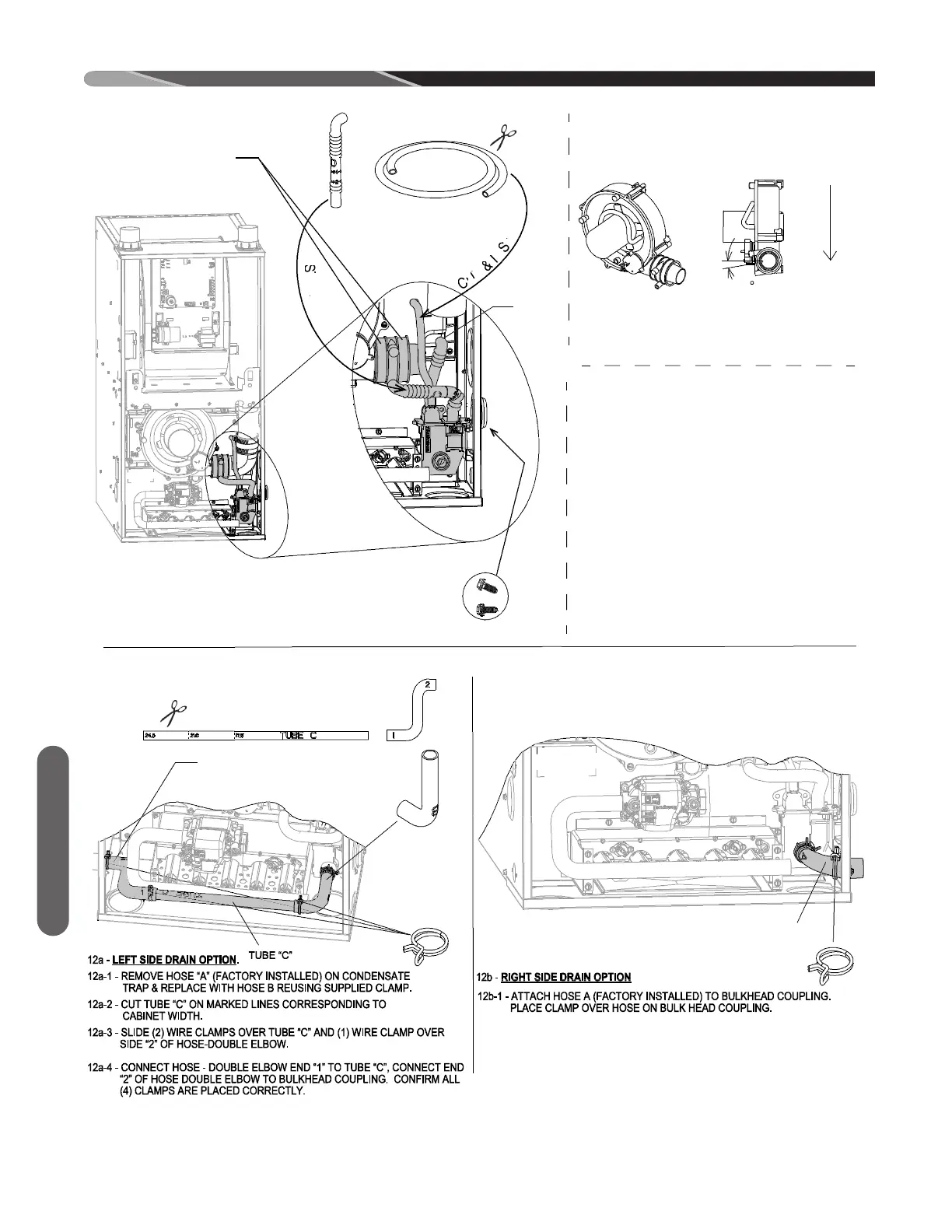

11b - INSTALL CONDENSATE TRAP BY MOUNTING
BRACKET TO JACKET USING (2) SCREWS.
11c - CUT 1/4" VENT TUBE TO FIT (APPROX.10-1/2").
INSTALL AS SHOWN.
11a - ROTATE INDUCER COUPLING 10°
! NOTE: TIGHTEN ELBOW COUPLING CLAMPS TO
FLUE PIPE WITH 5/16" NUT DRIVER. (NOT SHOWN)
FLUE VENTING
11b - INSTALL CONDENSATE TRAP BY MOUNTING
BRACKET TO JACKET USING (2) SCREWS.
11c - CUT 1/4" VENT TUBE TO FIT (APPROX.10-1/2").
11a - ROTATE INDUCER COUPLING 10°
! NOTE: TIGHTEN ELBOW COUPLING CLAMPS TO
FLUE PIPE WITH 5/16" NUT DRIVER. (NOT SHOWN)
NOTE:
USE SOAPY WATER TO FACILITATE EASY HOSE AND TUBE ASSEMBLY
ELBOW NOT SHOWN
FOR CLARITY
USE SOAPY WATER TO FACILITATE EASY HOSE AND TUBE ASSEMBLY
ELBOW NOT SHOWN
11b
USE SOAPY WATER TO FACILITATE EASY HOSE AND TUBE ASSEMBLY
11e - ATTACH HOSE E TO THE TOP OF
CONDENSATE TRAP.
11d - INSTALL HOSE D (REMOVED IN STEP 1) FROM
TRANSITION COULPLING TO THE FLUE TAP ON
THE CONDENSATE TRAP.
11e - ATTACH HOSE E TO THE TOP OF
11d - INSTALL HOSE D (REMOVED IN STEP 1) FROM
TRANSITION COULPLING TO THE FLUE TAP ON
THE CONDENSATE TRAP.
12a
ATTACH SIDE
"2" TO BULKHEAD
COUPLING
OPTION
DRAIN LEFT
SIDE
ATTACH SIDE
"2" TO BULKHEAD
COUPLING
TUBE “C”
CUT TO FIT
CABINET WIDTH
12b
OPTION
DRAIN RIGHT
SIDE
HOSE “B”
(X3)
HOSE A
NOTE: PLIERS NECCESSARY TO ADD OR REMOVE CLAMPS
NOTE: PLIERS NECCESSARY TO ADD OR REMOVE CLAMPS
NOTE: PLIERS NECCESSARY TO ADD OR REMOVE CLAMPS
ST-A1194-31-04
