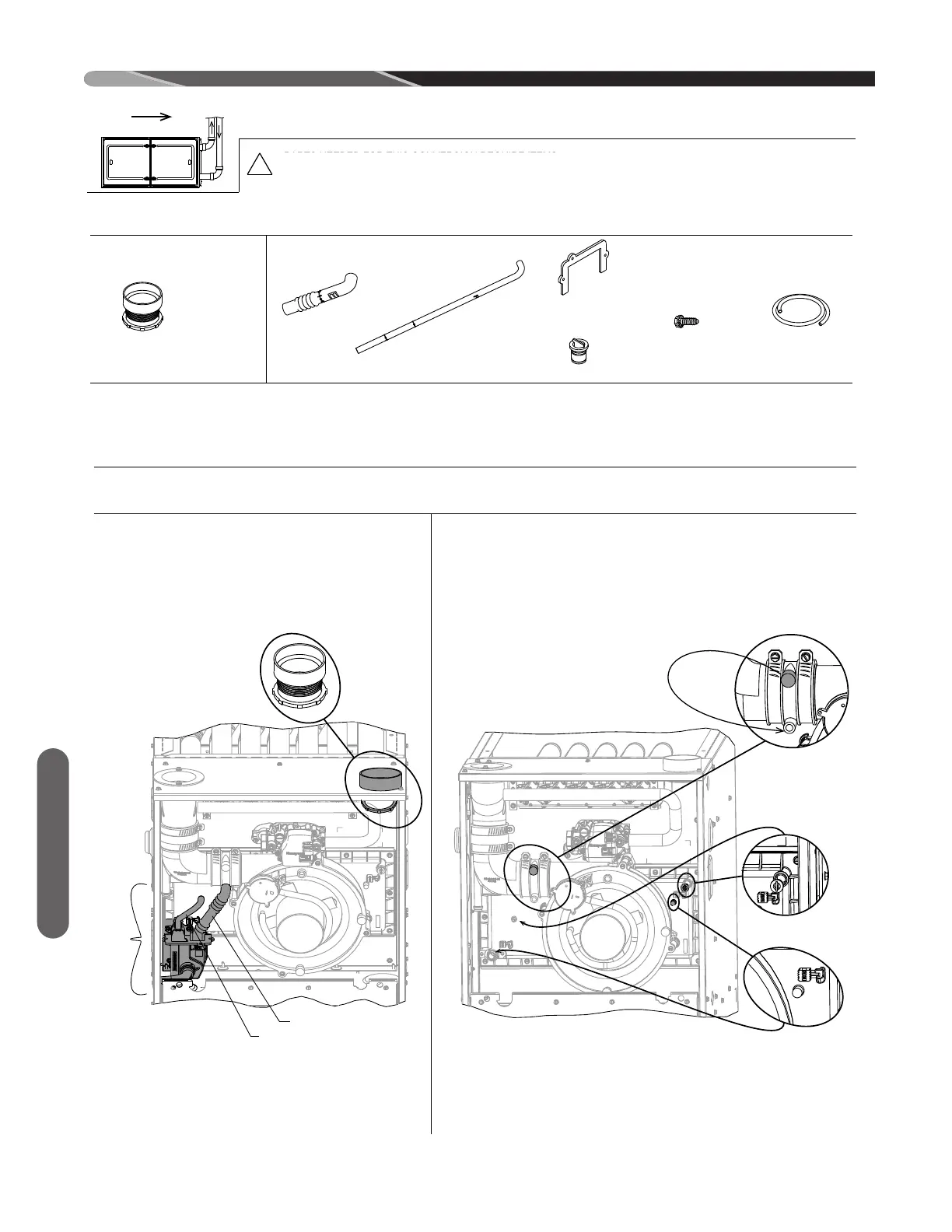

PARTS NEEDED:
PARTS NEEDED FOR THIS CONVERSION REQUIRE ITEMS
FROM THE PARTS BAG AND CONVERSION KIT RXGY-CK.
YOU MUST HAVE THE PARTS OUTLINED BELOW BEFORE PROCEEDING.
!
NOTE: STEPS 1- 5 SHOWN WITH FURNACE IN “AS SHIPPED CONDITION”
NOTE: THESE CONVERSION INSTRUCTIONS ARE INTENTIONALLY GENERIC, SOME PARTS MAY BE DIFFERENT IN YOUR FURNACE
HORIZONTAL RIGHT / RIGHT VENT
ST-A1194-32-01
2
2a - RELOCATE 1/2" VINYL CAP (YELLOW) ON THE
INDUCER COUPLING
2b - RELOCATE THE .403" DRAIN PLUG IN THE
COLLECTOR BOX.
2c - RELOCATE 1/4" VINYL CAP (YELLOW) ON
COLLECTOR BOX VENT TAP.
2a
2b
2c
MOVE
MOVE
MOVE
1
1a - REMOVE TRAP AND HOSES
(NOTE: TO REMOVE TRAP, REMOVE (2) SCREWS
AND PULL STRAIGHT OUT)
1b - INSTALL INTAKE COUPLING IN TOP PLATE
AS SHOWN.
1a
1b
HOSE “D” (DISCARD)
VENT HOSE (DISCARD)
DRILL
1/8" DRILL BIT
PLIERS
FLAT HEAD SCREWDRIVER
5/16 HEX HEAD DRIVER
1/4" HEX HEAD DRIVER
TOOLS/MATERIALS NEEDED:
CONDENSATE
TRAP GASKET
.559 DRAIN PLUG
#8 X 1/2"
SCREW
(X3)
1/4" BLACK
VENT TUBE
1/2" DRAIN
HOSE E
1/2" DRAIN
HOSE F
FROM CONVERSION KIT RXGY-CK
INTAKE
COUPLING
AND NUT
FROM PARTS BAG
(PROVIDED WITH UNIT)
AIRFLOW
PARTS NEEDED FOR THIS CONVERSION REQUIRE ITEMS
FROM THE PARTS BAG AND CONVERSION KIT RXGY-CK.
YOU MUST HAVE THE PARTS OUTLINED BELOW BEFORE PROCEEDING.
