Function Settings
RP17**H Series
Function Settings (con’t)
SETTING METHOD
1. Be sure to disconnect the power supply or tun off the
breaker.
2. Change the DIP switch setting according to the required
setting.
• Various settings can be adjusted by changing DIP switches
and push switches on the board of the outdoor unit.

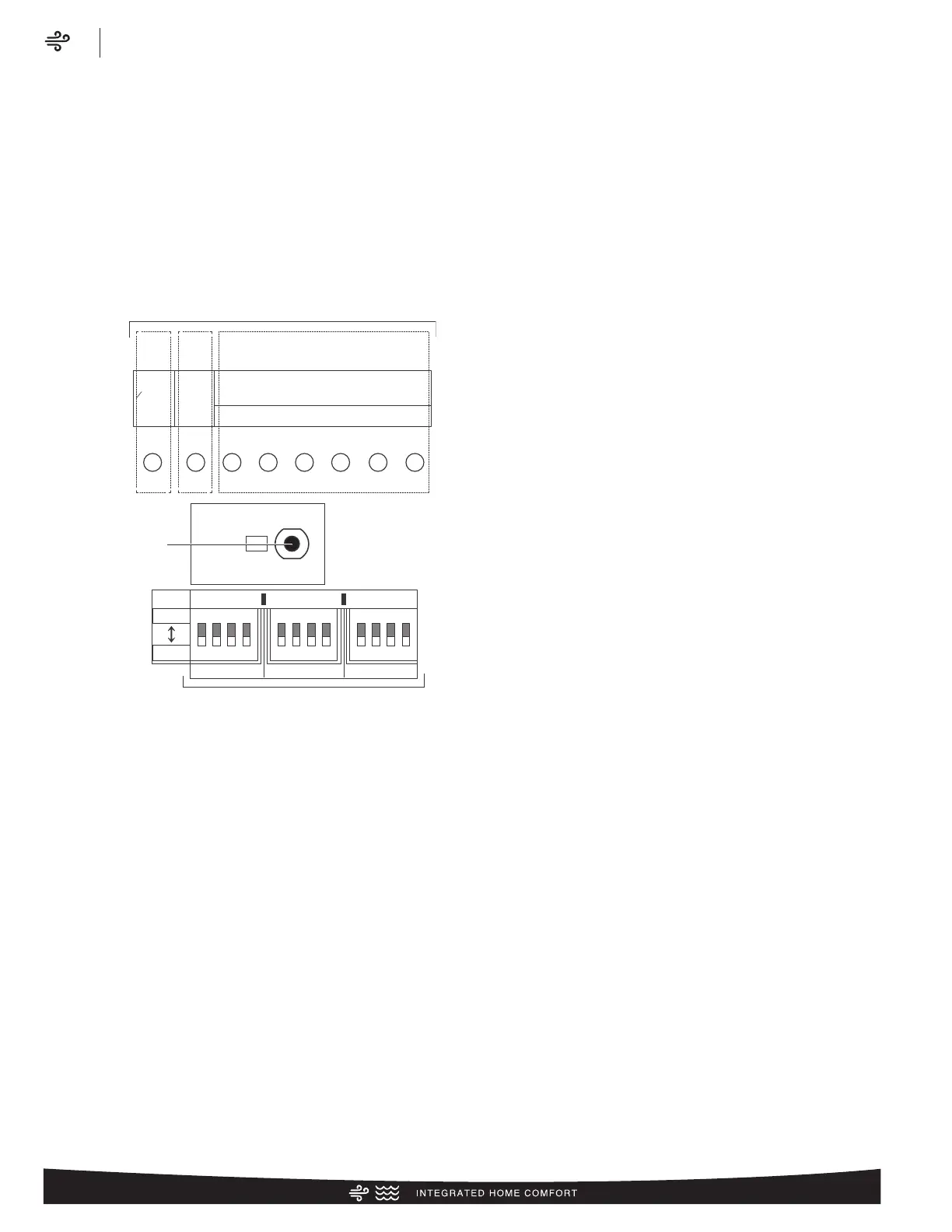

• The printed characters for the LED display are shown
below.
DIP switch part
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
PUMP DOWN
1WS
TEST RUN
SET1
SET1-1
HEAT
COOL
SET2 SET3
FEDC
MONITOR
ERROR
BA
POWER
MODE
(
1
)(
2
)(
3
)
SW1
LED display part
