Rheem Classic Plus Series - Installation Space

14
Air
Installation Space
RP17**H Series
Installation Space—RP1724HJVXA and RP1730HJVXA (con’t)

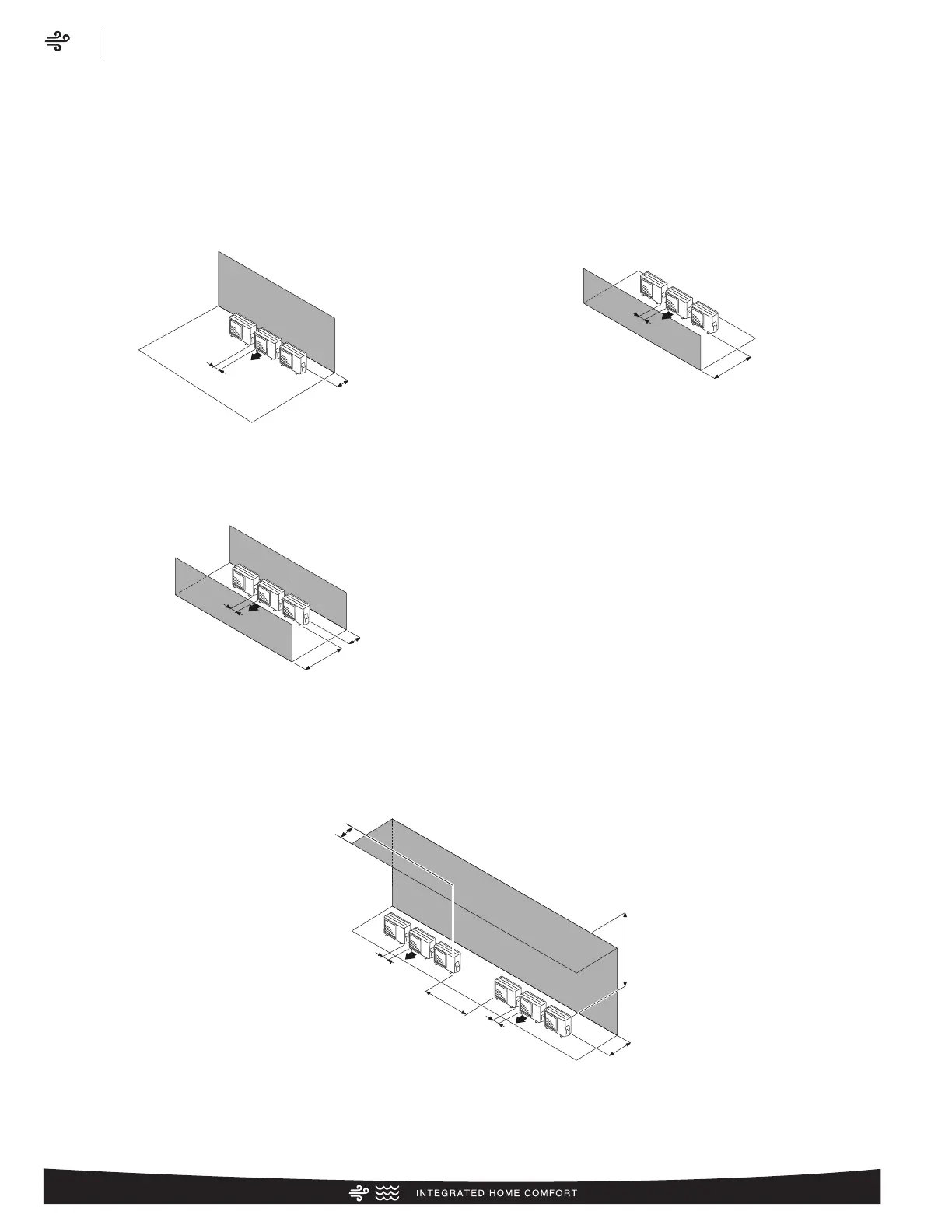

MULTIPLE OUTDOOR UNIT INSTALLATION
When the upper space is open:
WHEN THERE ARE OBSTACLES AT THE REAR ONLY. WHEN THERE ARE OBSTACLES AT THE FRONT ONLY.
WHEN THERE ARE OBSTACLES AT THE FRONT AND REAR.
10 [250 mm]
OR MORE
12 [300 mm]
OR MORE
10 [250 mm] OR MORE
60 [1500 mm]
OR MORE
10 [250 mm] OR MORE
60 [1500 mm]
OR MORE
20 [500 mm]
OR MORE
When there is an obstruction in the upper space:
WHEN THERE ARE OBSTACLES AT THE REAR AND ABOVE.
10 [250 mm]
OR MORE
20 [500 mm] OR MORE
60 [1500 mm] OR MORE
60 [1500 mm]
OR MORE
MAXIMUM 11 [300 mm]
OR MORE
[ ] Designates Metric Conversions
