Function Settings
RP17**H Series
29
Function Settings
SETTING METHODS
WARNING: Never touch electrical components such as the ter-
minal blocks or reactor except the switch on the display board.
It may cause a serious accident such as electric shock.
CAUTION
• Once refrigerant charging is completed, be sure to open the
valve prior to performing the location settings. Otherwise, the
compressor may fail.
• Discharge any static electricity from your body before touch-
ing the push switches. Never touch any terminal or pattern of
any parts on the control board.

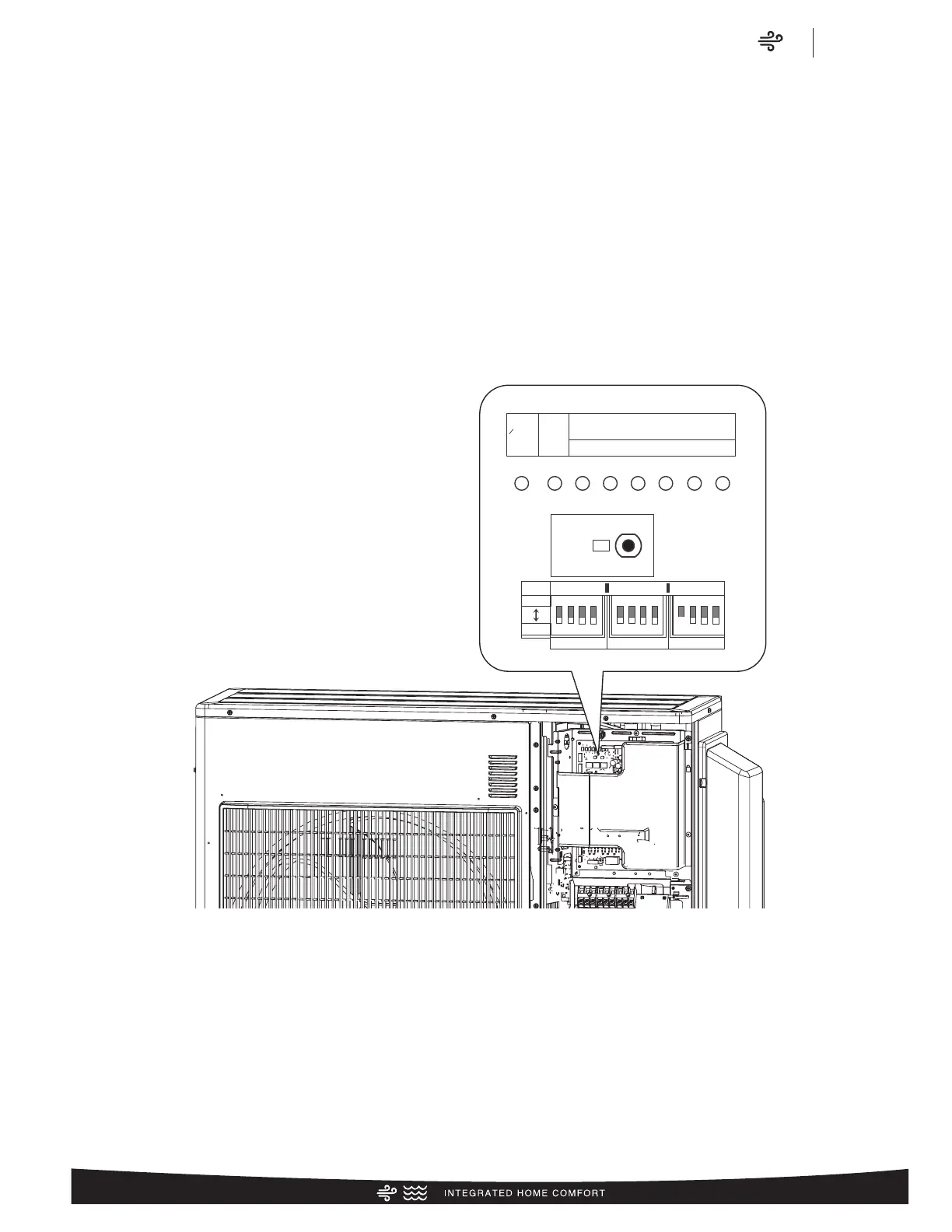

The positions of the switches on the outdoor unit control board
are shown in the figure below.
