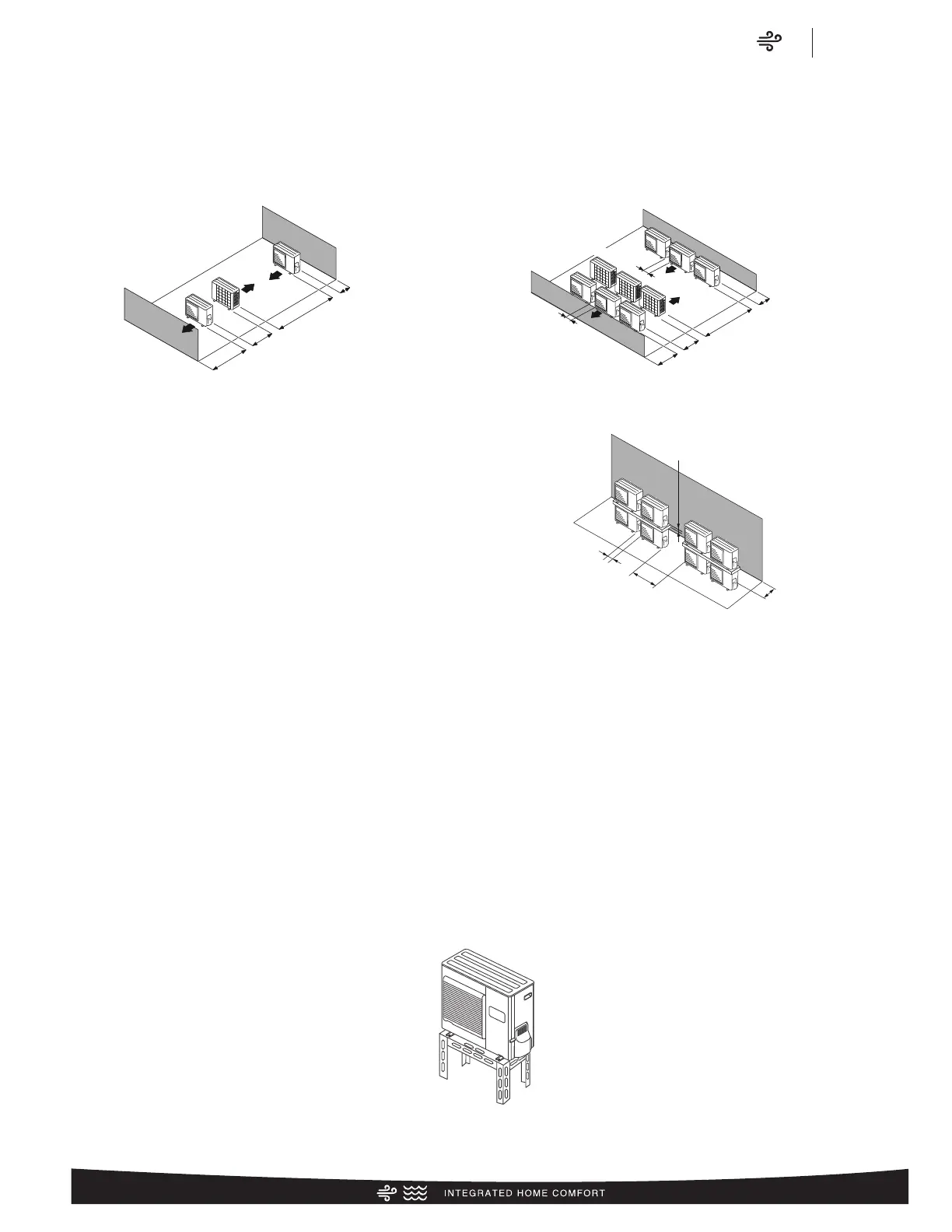

SINGLE PARALLEL UNIT ARRANGEMENT MULTIPLE PARALLEL UNIT ARRANGEMENT
40[1000 mm] OR MORE
24[600 mm] OR MORE
79[2000 mm] OR MORE
6[150 mm] OR MORE
20[500 mm] OR MORE
24[600 mm] OR MORE
60[1500 mm] OR MORE
10
[250 mm] O
R
MO
R
E
6[150 mm] OR MORE
10[250 mm] OR MORE
60[1500 mm] OR MORE
20[500 mm] OR MORE
Air
Installation Space
RP17**H Series
15
Installation Space—RP1724HJVXA and RP1730HJVXA (con’t)
OUTDOOR UNIT INSTALLATION IN MULTI-ROW
NOTES:
1. If the space is larger than stated above, the condition will be the same as when there is no obstacle.
2. Height above the floor level should be 2 in. [50 mm] or more.
3. When installing the outdoor unit, be sure to open the front and left side to obtain better operation efficiency.
CAUTION:
1. Do not install the outdoor unit in two-stage where the drain water could freeze. Otherwise the drainage from the upper
unit may form ice and cause a malfunction of the lower unit.
2. When the outdoor temperature is 32º F [0º C] or less, do not use the accessory drain pipe and drain cap. If the drain
pipe and drain cap are used, the drain water in the pipe may feeze in extremely cold climate. (For reverse cycle
model only.)
3. In area with heavy snowfall, if the inlet and outlet of the outdoor unit is blocked with snow, it might become difficult to
get warm, and it is likely to cause product malfunction. Construct a canopy and a pedestal, or place the unit on a high
stand that is locally installed.
[ ] Designates Metric Conversions
