16
Air
Installation Space
RP17**H Series

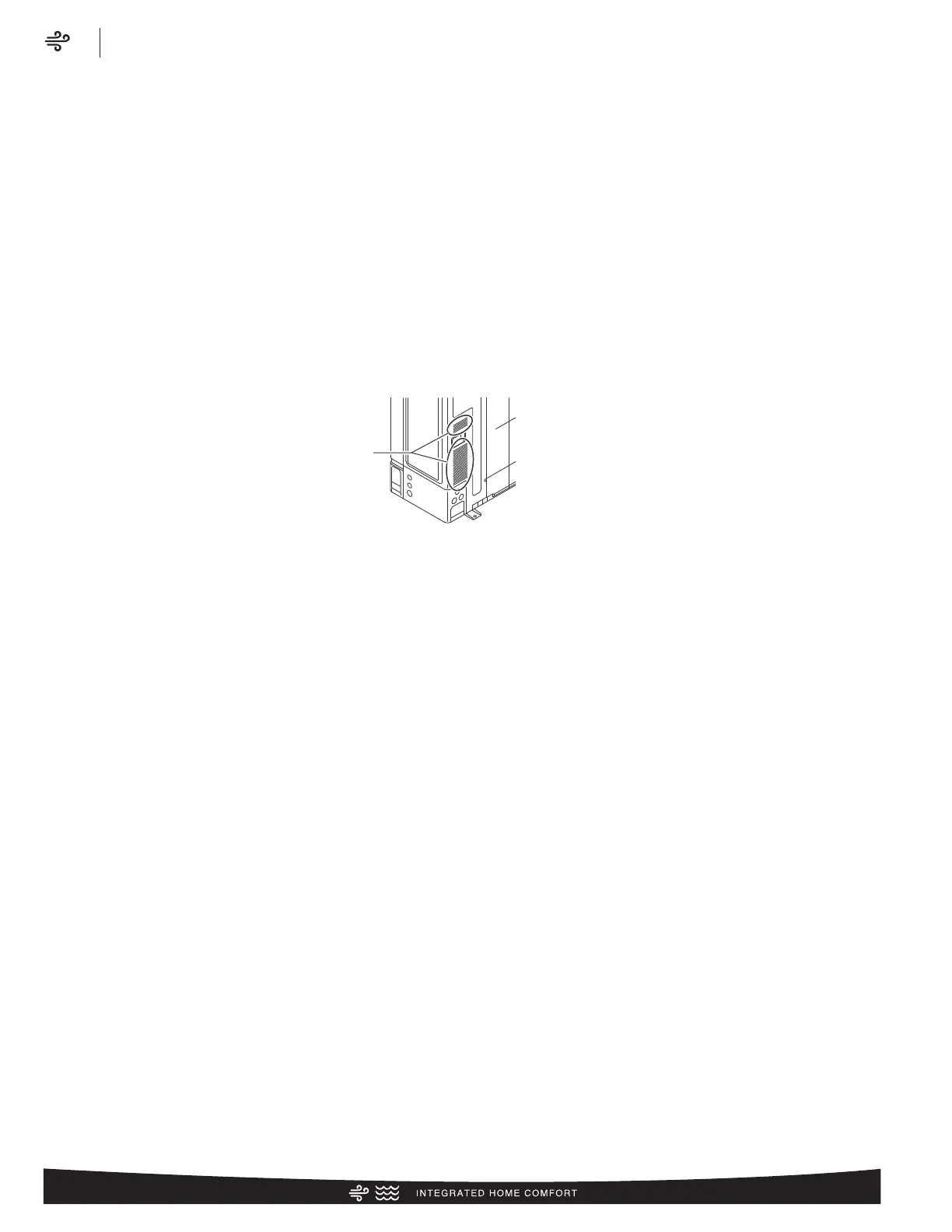

Installation Space—RP1736HJVXA and RP1748HJVXA
CAUTION:
4. The installation space shown in the following examples is based on an ambient temperature under cooling operation
of 95ºFDB [35ºCDB] at the air intake of the outdoor unit. Provide more space around the air intake than shown in the
examples if the ambient temperature exceeds 95ºFDB [35ºCDB] or if the thermal load of all of the outdoor units
exceeds the capacity.
5. Consider the transportation route, installation space, maintenance space, and access, and install the unit in a location
with sufficient space for the refrigerant piping
6. Observe the installation space specifications that are shown in the figures. Provide the same space for the air intake at
the rear of the outdoor unit.
If the installation is not performed according to the specifications, it could cause a short circuit and result in a lack of
operating performance. As a result, the outdoor unit might easily be stopped by high-pressure protection.
7. Installation methods not shown in the following examples are not recommended. Performance may drop significantly.
To Next Page
