Rheem Classic Plus Series - Page 17

Air
Installation Space
RP17**H Series
17
WHEN THERE ARE OBSTACLES AT THE REAR AND ABOVE. WHEN THERE ARE OBSTACLES AT THE REAR, SIDES AND ABOVE.
40 [1000 mm]
OR MORE
6 [150 mm]
OR MORE
40 [1000 mm]
OR MORE
6 [150 mm]
OR MORE
6 [150 mm]
OR MORE
6 [150 mm]
OR MORE
MAXIMUM 19 [500 mm]

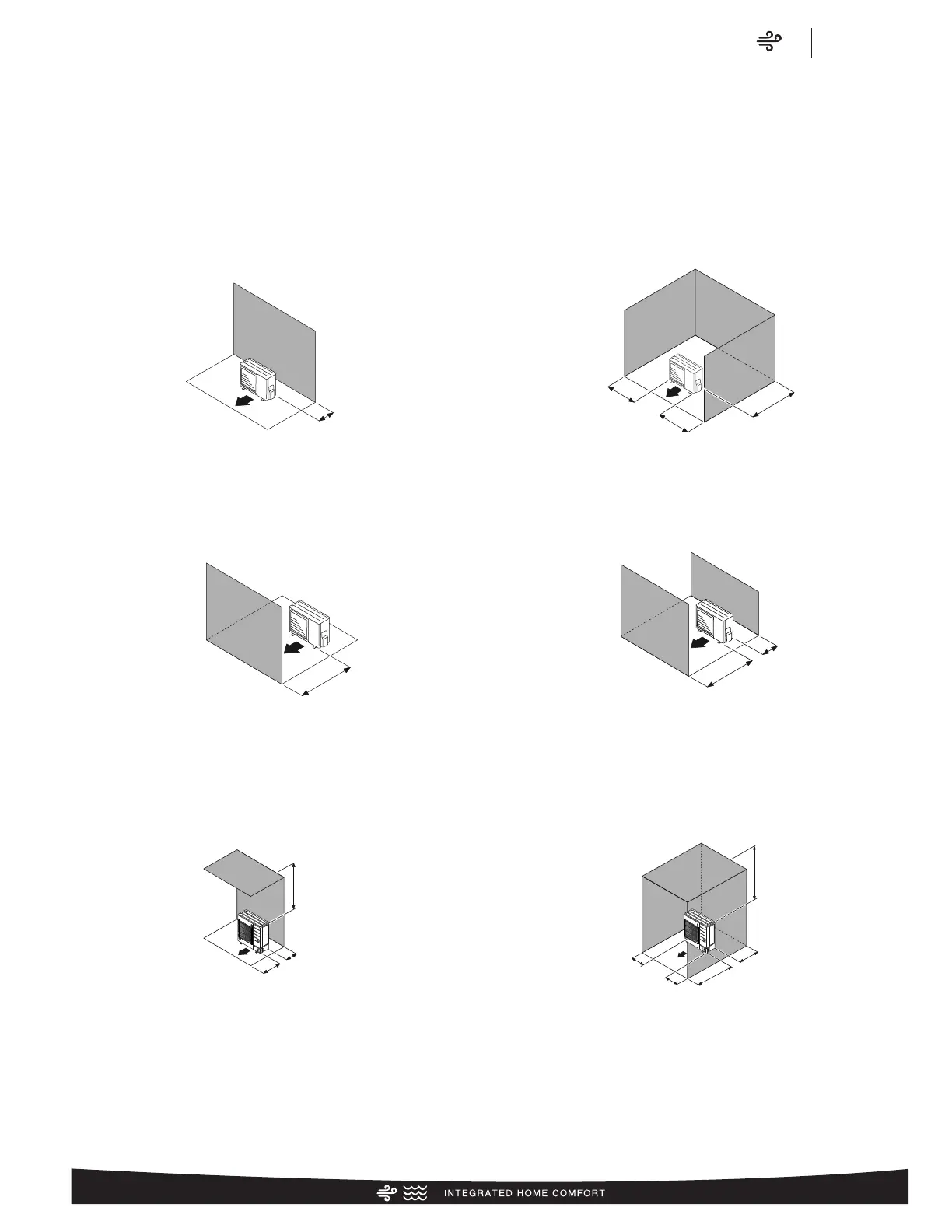

SPACE REQUIREMENT
Provide sufficient installation space for product safety.
SINGLE OUTDOOR UNIT INSTALLATION
When the upper space is open:
WHEN THERE ARE OBSTACLES AT THE REAR ONLY. WHEN THERE ARE OBSTACLES AT THE REAR AND SIDES.
WHEN THERE ARE OBSTACLES AT THE FRONT ONLY. WHEN THERE ARE OBSTACLES AT THE FRONT AND REAR.
6 [150 mm]
OR MORE
8 [200 mm]
OR MORE
8 [200 mm]
OR MORE
12 [300 mm]
OR MORE
40 [1000 mm]
OR MORE
40 [1000 mm]
OR MORE
6 [150 mm]
OR MORE
When there is an obstruction in the upper space:
Installation Space—RP1736HJVXA and RP1748HJVXA (con’t)
[ ] Designates Metric Conversions
