18
Air
Installation Space
RP17**H Series
Installation Space—RP1736HJVXA and RP1748HJVXA (con’t)

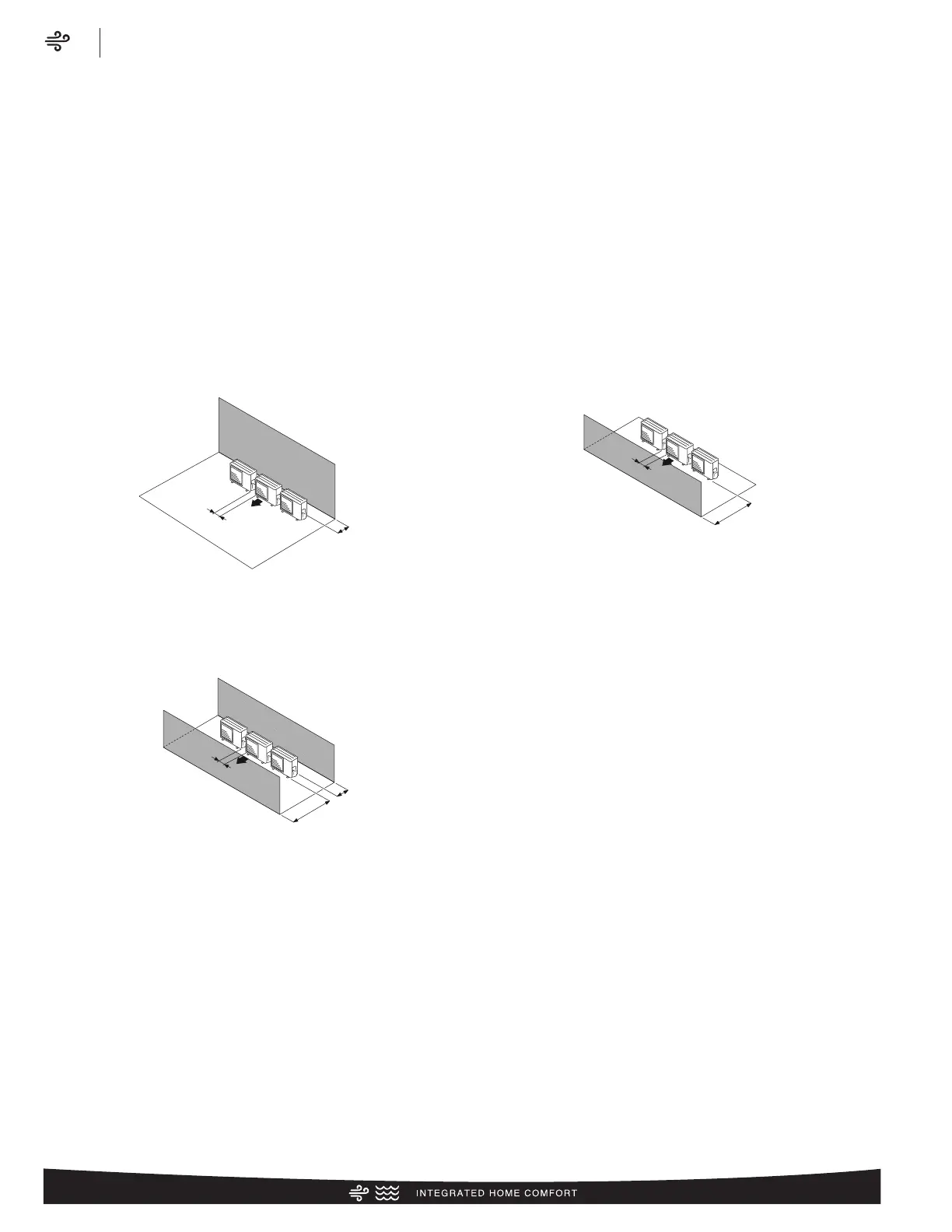

MULTIPLE OUTDOOR UNIT INSTALLATION
When the upper space is open:
WHEN THERE ARE OBSTACLES AT THE REAR ONLY. WHEN THERE ARE OBSTACLES AT THE FRONT ONLY.
WHEN THERE ARE OBSTACLES AT THE FRONT AND REAR.
12 [300 mm]
OR MORE
60 [1500 mm]
OR MORE
60 [1500 mm]
OR MORE
20 [500 mm]
OR MORE
NOTES:
1. Provide at least of space between the outdoor units if multiple units are installed.
2. When routing the piping from the side of an outdoor unit, provide space for the piping.
3. No more than 3 units must be installed side by side. When 3 units or more are arranged in a line, provide the space as
shown in the following example when an obstruction is present also in the upward area.
[ ] Designates Metric Conversions
