25

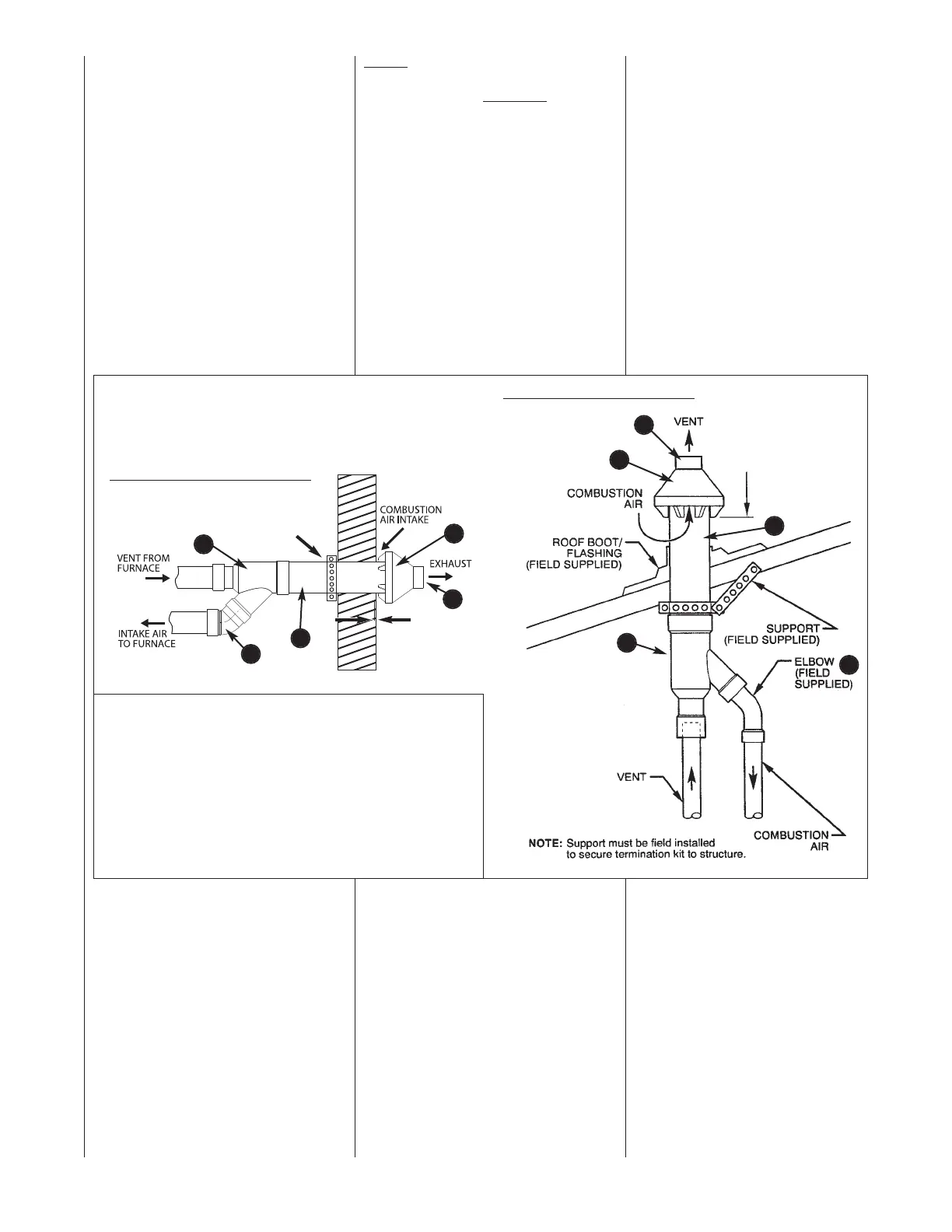

FIGURE 19
CONCENTRIC VENT KIT NO. RXGY-E03A
SIDEWALL ASSEMBLY
ROOF INSTALLATION
1" MAXIMUM
FIELD-SUPPLIED
STRAP
ITEM No. DESCRIPTION
A 2.5" PVC PIPE SCHEDULE 40 -- 37.125" LONG
B4" PVC PIPE SCHEDULE 40 -- 24" LONG
C3" x 3" x 4" SPECIAL CONCENTRIC FITTING
D3" x 45° STREET ELBOW (FIELD SUPPLIED)
E PVC RAINCAP
E
B
A
C
D
E
B
A
C
D
CONCENTRIC
TERMINATIONS
VERTICAL/HORIZONTAL
CONCENTRIC VENT
KIT NO. RXGY-E03A
This kit is for vertical/horizontal
intake air/vent runs and may be
installed through roofs and
sidewalls. One 5” diameter hole is
required for the installation. See
Figure 19 for the general layout.
Complete installation instructions
are included with the kit.
MAINTAIN 12 IN.
MINIMUM CLEARANCE
ABOVE HIGHEST
ANTICIPATED SNOW
LEVEL. MAXIMUM OF
24 IN. ABOVE ROOF.
NOTE: The following IPEX brand
concentric terminations (System 636)
may be purchased in the field
and
used in place of factory supplied kits:
3” Concentric Kit – Item # 196006
