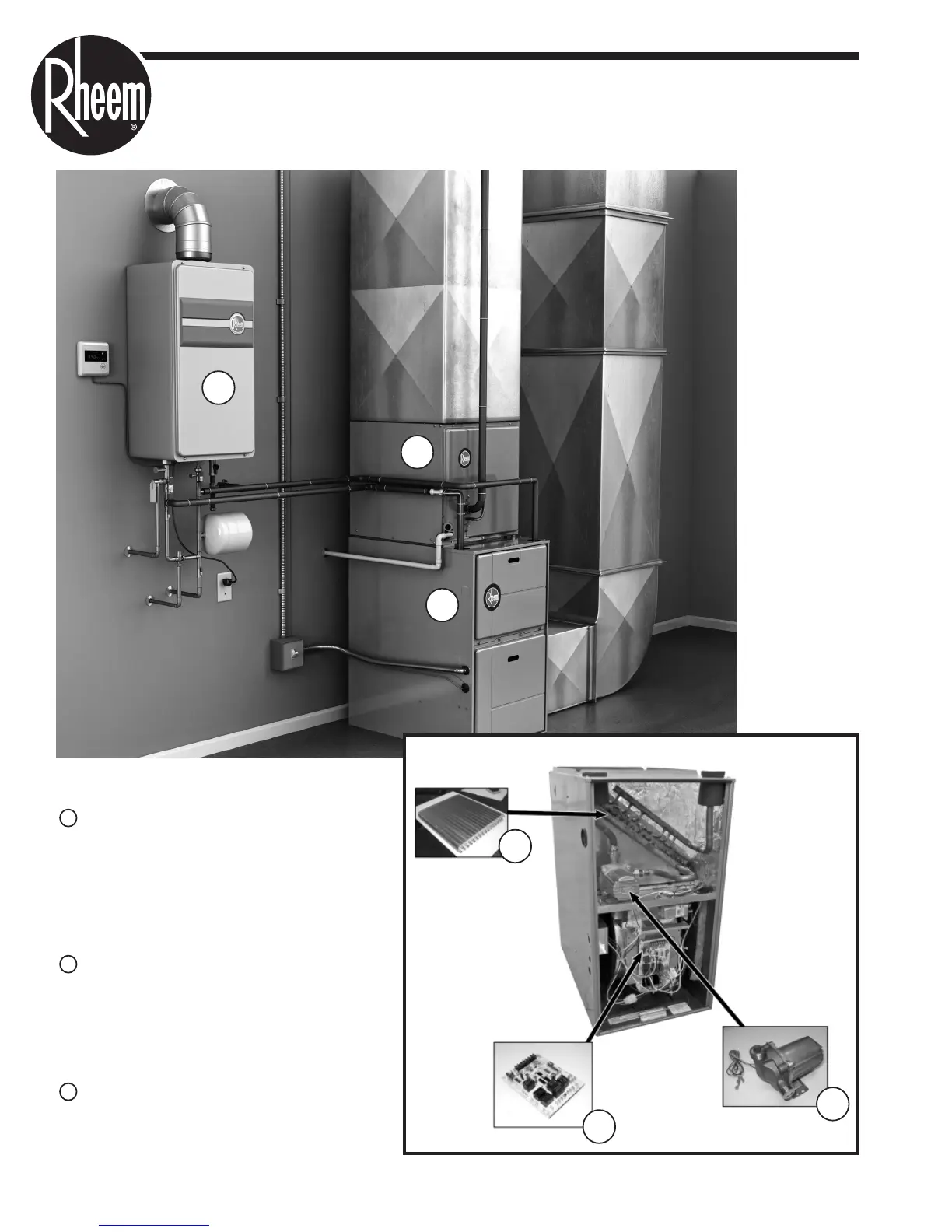

SYSTEM COMPONENTS
1
TANKLESS WATER HEATER
TheRheemtanklesswaterheaterservestwopur-
posesinthehydronicsystem:itprovidescontinuous
hotwaterforusethroughoutthehome.Whenacall
forheatismade,thetanklesswaterheateralsoacts
astheheat-sourceforairhandler,providingbothhot
waterandheatingforthehomesimultaneously.
2
HYDRONIC AIR HANDLER
Thehydronicairhandlerfeaturesahydronicheating
coilinplaceofeitherelectricheatingelementsor
gas-redheatexchangers.Wheninheatingmode,
thehydropumpcirculateshotwaterbetweenthe
tanklesswaterheaterandthehydroniccoil.
3
COOLING COIL
Incoolingmode,thecoolingcoiloperatesthesame
asanyotherRheemheatingandcoolingsystem.
2 Rheem Heating, Cooling and Water Heating
STANDARD EQUIPMENT
Completely assembled and wired; Hydronic coil; copper tubes with aluminum
fins; blower compartment door safety switch; solid state time on/off blower
control; cool fan off delay; field selectable heat fan “off” delay; power and self-
test diagnostics; electronic air cleaner connections; humidifier connections;
humidifier on/off delay; single speed option for heating and cooling applications;
transformer; direct drive, multi-speed blower motor. (Note: a thermostat is not
included as standard equipment.)
OPTIONAL EQUIPMENT
Side and bottom filter racks; return air cabinet for all sizes.
HYDRONIC COIL
HYDRO PUMP
INTEGRATED
CONTROL
HYDRONIC AIR HANDLER
HYDRONIC AIR HANDLER – INSIDE VIEW
A
B
C
HOME HEATING & WATER HEATING
POWERED BY TANKLESS TECHNOLOGY
