solar collector array
anti-scald
valve
expansion tank
ll/purge valves
air separator
circulator w/
isolation
anges
solar
controller
solar indirect water heater
pressure
relief
valve
conventional water heater
electric
heating
element
electric
heating
element
cold water
hot water
N.C.
N.O.N.O.
air vent w/ shut
o valve

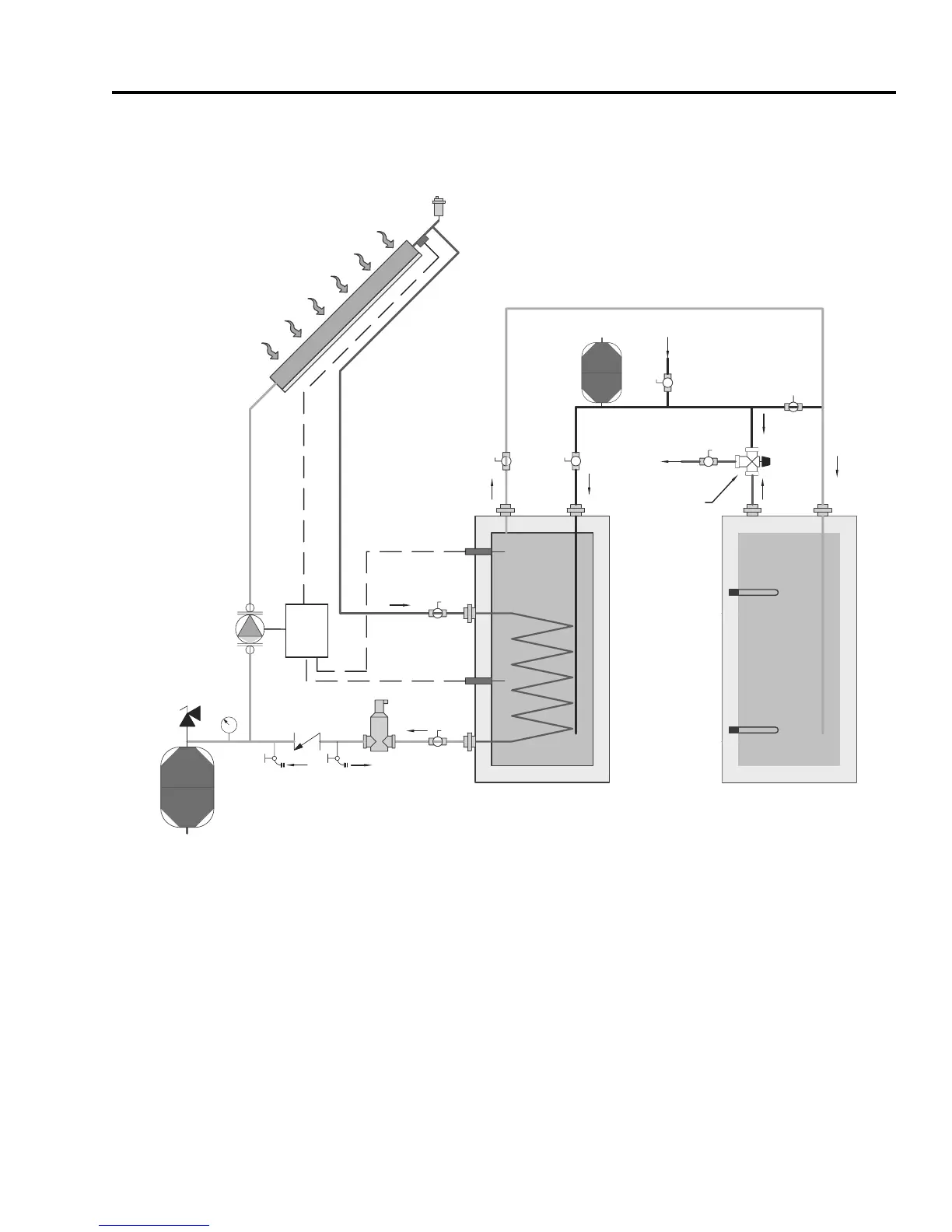

Figure 4: Two tank system with existing heater
A typical two tank system is shown in Figure 4. The two tank system is mainly used
where a conventional water heater is already installed.
