Figure 5 shows an example of a domestic solar heating system based on an indirect water
heater with two coils. The domestic water can be heated by the solar system as well as the
boiler.
Page 12
cold water
hot water
solar collector array
anti-scald valve
expansion tank
ll/purge valves
air separator
circulator w/
isolation
anges
solar
controller
solar indirect water heater w/
two coils
pressure
relief
valve
air vent w/ shut
o valve
boiler
boiler
circulator
w/ check
valve and
isolation
anges
pressure
reducing
valve
backow
preventer
air separator
purge
valve

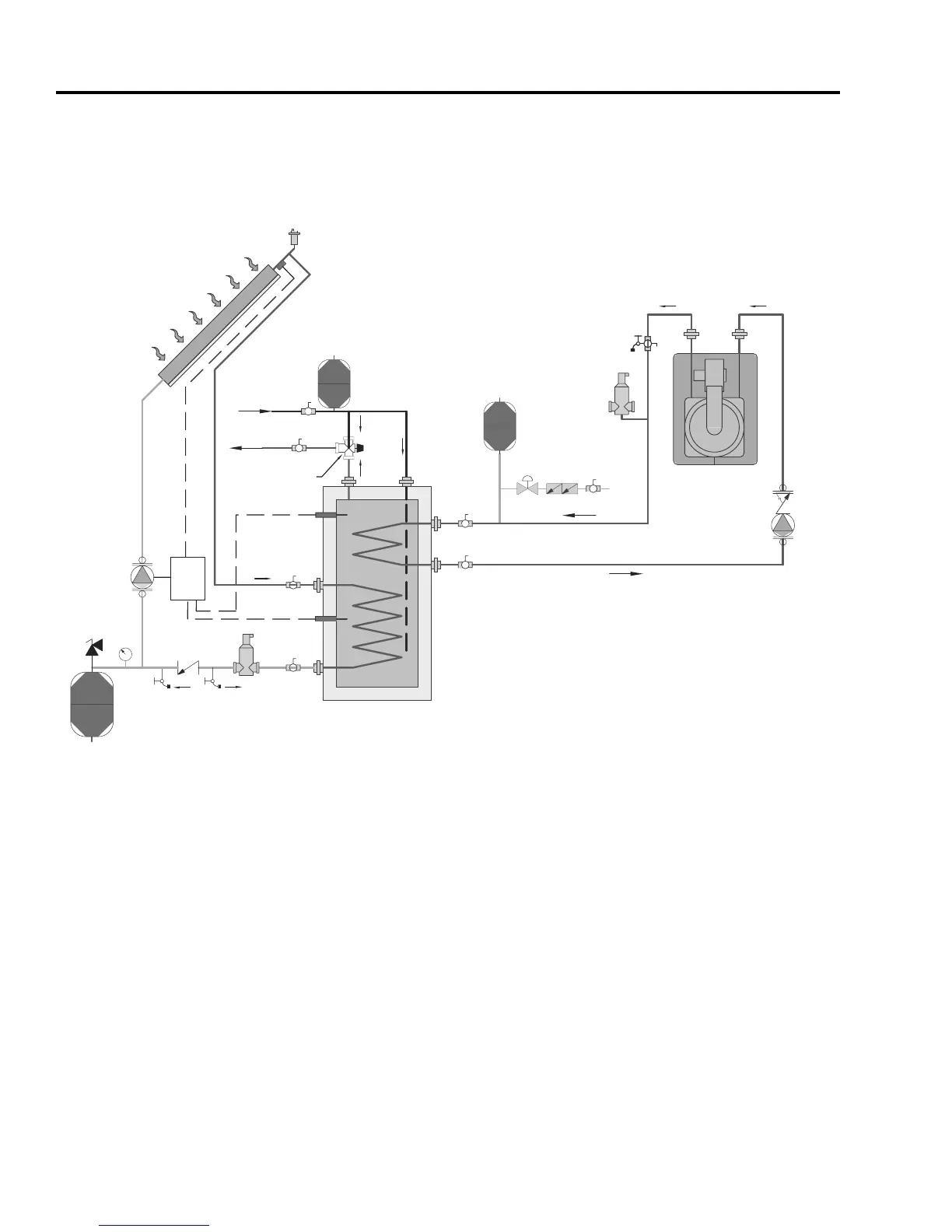

Figure 5: Single tank system with boiler backup
