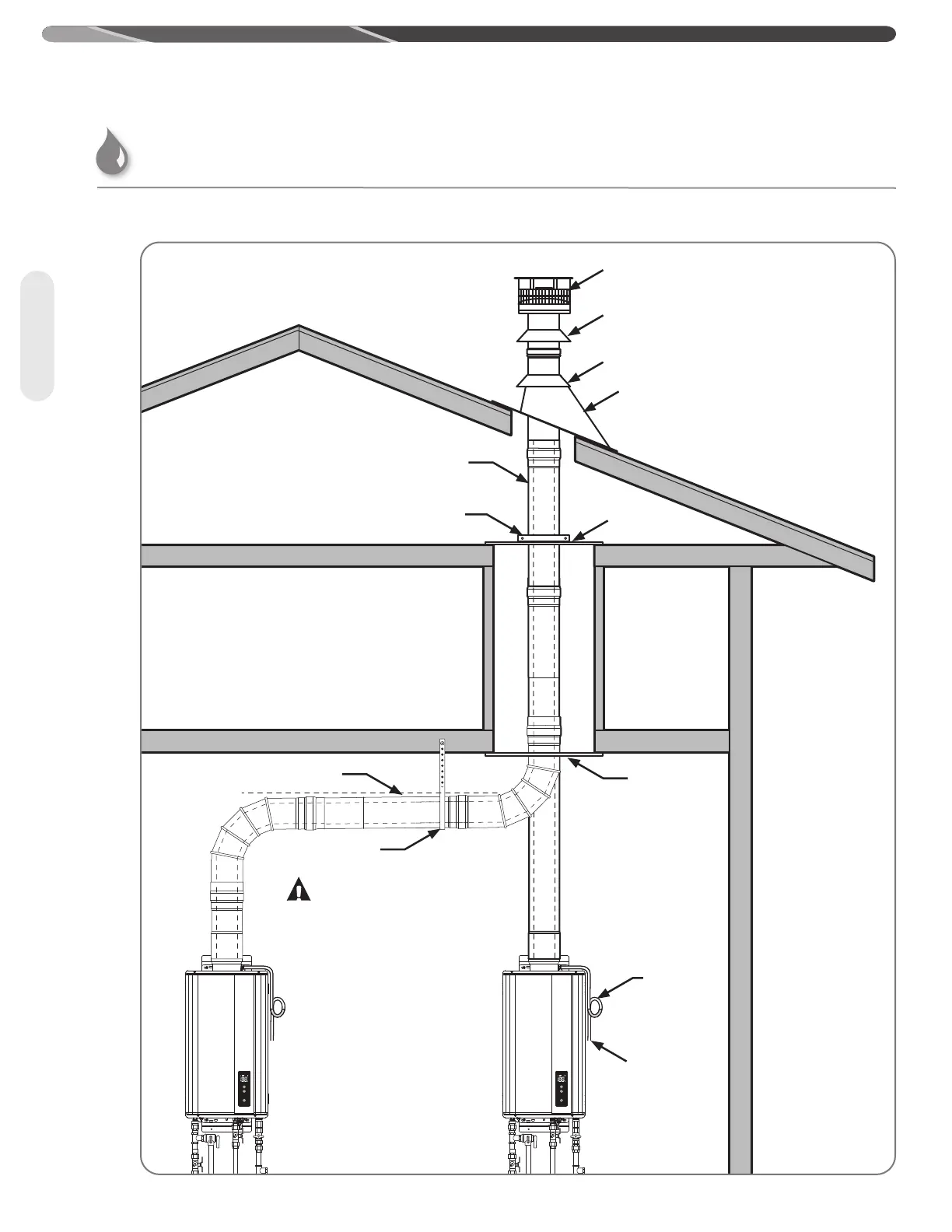

Venting for Direct-Vent Water Heater
Standard Vertical Vent Termination
CAUTION:
The condensate collector must
be used with vertical vent
installation.
Support Hanger
Fire Stop
Fire Stop
Adjustable
Roof
Flashing
Storm
Collar
Air
Intake
Vertical
Termination
Adapter
Support Clamp
3" to 5" Concentric Pipe
Condensate
Trap
To Drain:
Dispose of
condensate in
accordance to
local codes
1/4" Per Foot Upward Slope
