Operation Manual RHE 07, 08, 11 Page 21
- Request command termination: <CR><LF><7FH><7FH>
- RHE reply termination: <7FH><7FH><CR><LF>
CR: carriage return
LF: line feed
7FH: character for synchronizing serial DataStream (HEX)
- Commands:
There are also some commands, that are sent to the transmitter without request for special meas-
urement data.
These commands must also be sent like the request instructions between the command head and the
command termination:
instruction command transmitter reply
reset totalizer r r
hold on totalizer hon hon
hold off totalizer hoff hoff
clear error c c
2.1.3.6.3. External contact inputs
The RHE electronic offers two possible inputs. Both are galvanically isolated and are passive. This
means that in order to activate the inputs, the opto isolators LED’s have to be switched using an
external support voltage of maximum 24 VDC (R = 2700 Ohm).

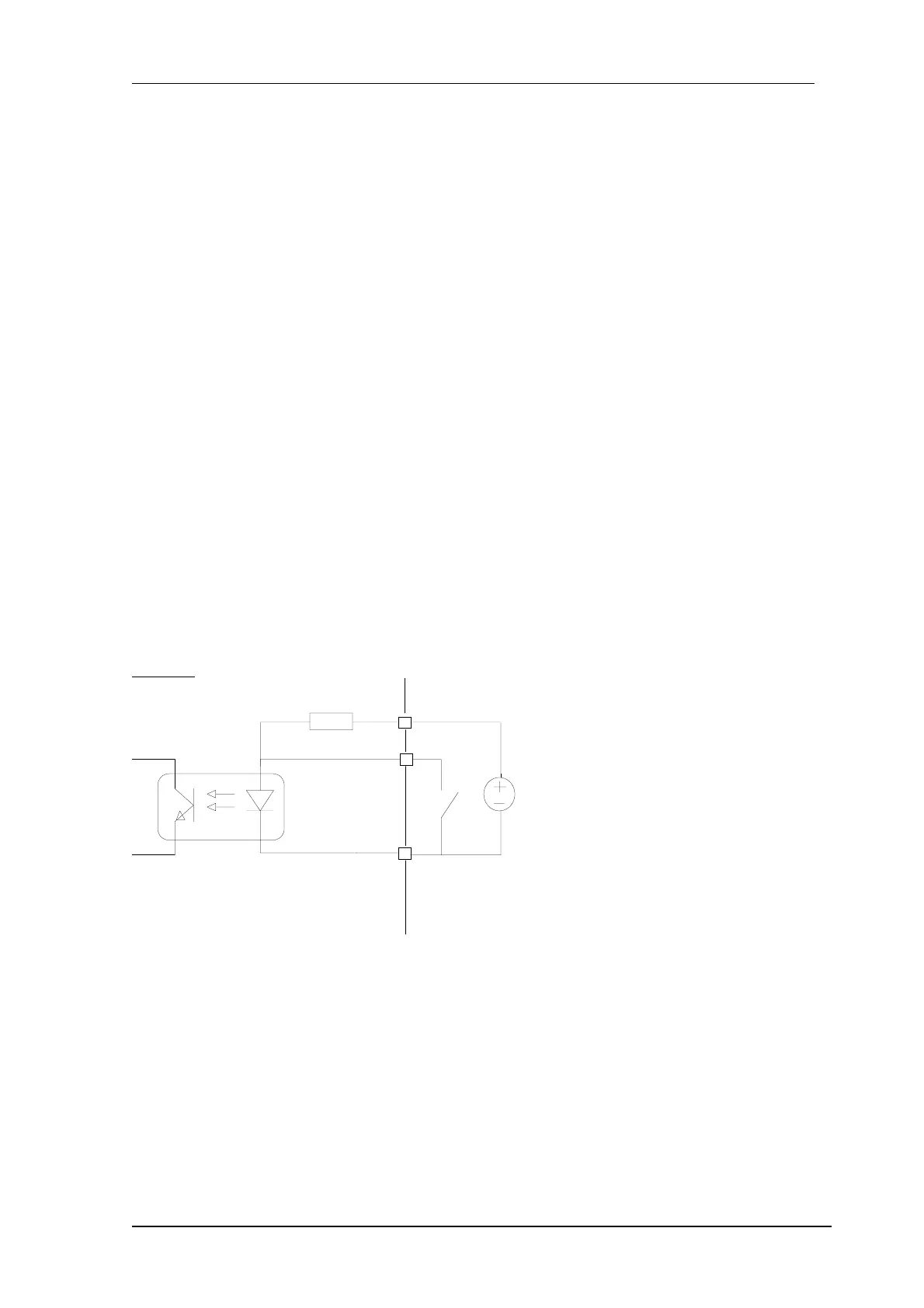

example:
resistor
Optocoupler
DC voltage
max. 24 V
external contact input
(switch, relay )
Both inputs can be programmed by software keys as:
- Not used (if the input is not used)
- Reset Total (set totalizer to zero)
- Hold Total (block totalizer counting during flow)
- Zero Flow (start zero calibration procedure)
- Quit Error (acknowledge error message)
- Batch Start (only with activated Batch Option)
- Batch Stop (only with activated Batch Option)
