2.1.3.6.5. Configuration of the digital outputs:
Output Status active open active clsd selectable*
Limit Flow > value closed open yes
Limit Temp > value closed open yes
Limit Dens > value closed open yes
Limit Mass > value closed open yes
Error open at error – at normal operation closed no
Flow Direc < > flow direction +/- no
Empty Tube > 300 kg/m³ closed open yes
(only active with option density measurement)
* if “yes” is shown under selectable, you can choose in a separate menu point between
out active open or out active clsd (closed).
All outputs can be selected in one and the same direction only !
Attention: The maximum allowed current for the output transistor is 50 mA.
Please use a protection diode for inductive loads.

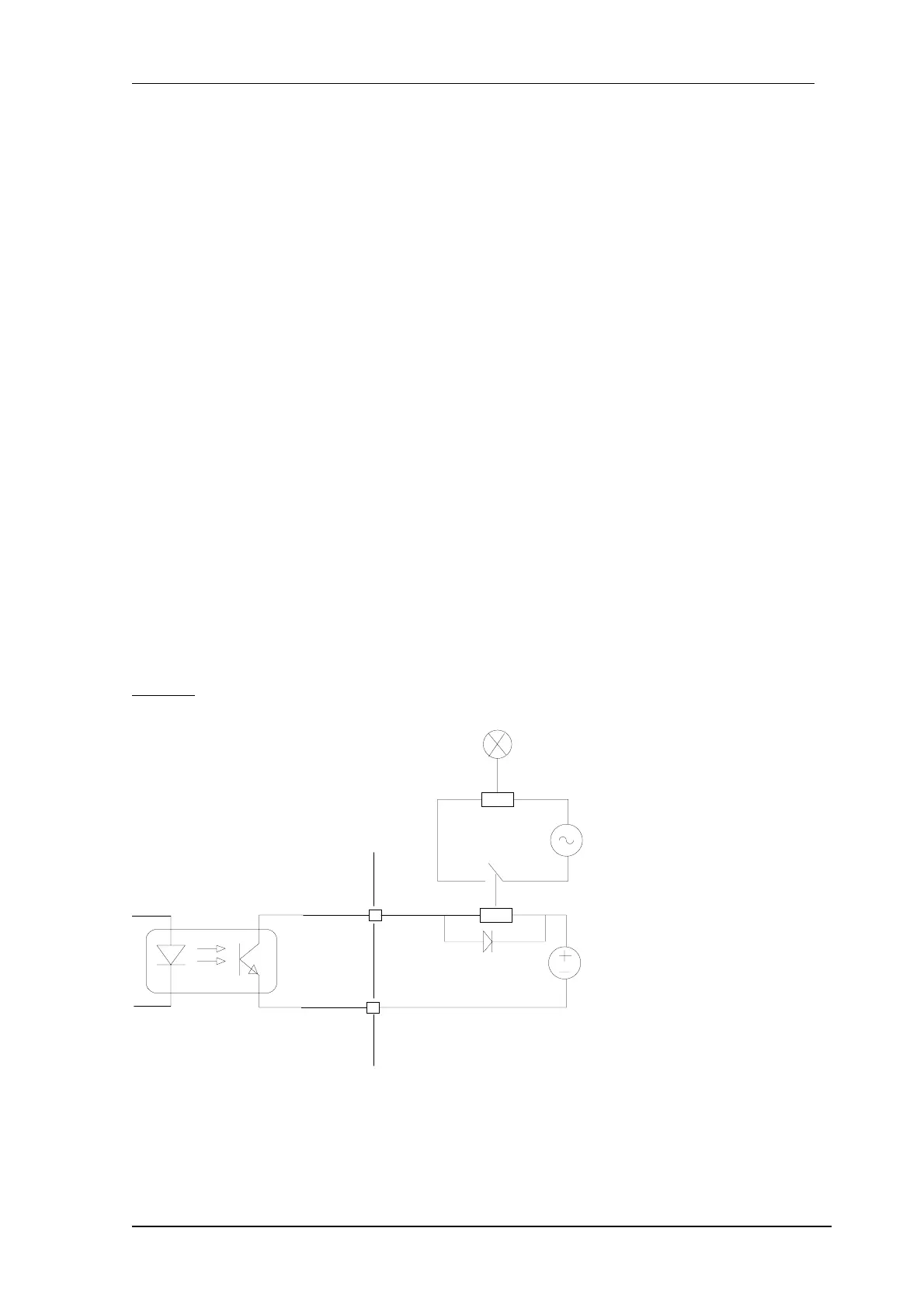

example:
Optocoupler
DC voltage
max. 24 V
115 VAC or
230 VAC
Diode
1N4002
Relay
Valve
