RHEONIK Messgeräte GmbH REV. I, Apr. 2004
.
Operation Manual RHE 07, 08, 11
Page
33
6. Option batch function
(from Software version M300998 Version 1.19)
6.1. Introduction
With option batch a 1 stage batch process with automatic overflow control, or a 2 stage batch process
without automatic overflow control can be performed. The limit outputs of the RHE 07/08/11 unit can
be used via relays to control one or two valves. The Preset value and the Prewarn value can be set
either by pressing keys in the menu of the remote unit or via serial interface (option).
If automatic overflow control is activated it will automatically after a few batches set the Prewarn
value to the correct value in order to have exactly the required batch value (Pset). If a batch is
stopped, it is possible to decide afterwards to continue (GoOn) or to stop the batch and start a new
one (Clear).
If the power supply is disconnected during a batch, this batch is stopped and cannot be continued
from the last value anymore - a new batch has to be started.
6.2. Remote electronic RHE 07/08/11 batch menu
(see batch menu Schema)

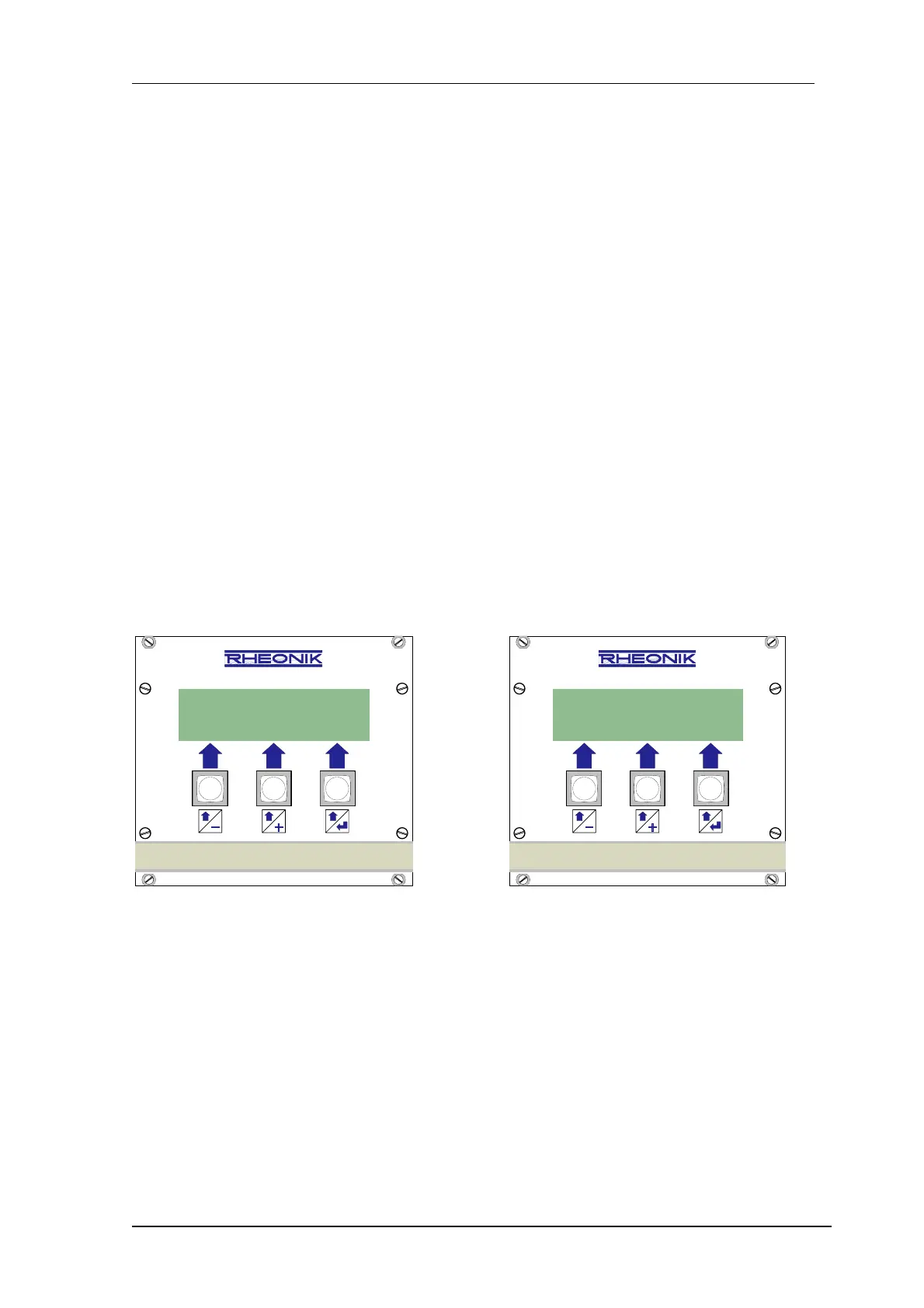

To enter the batch menu the left button has to be pressed, then the following menu (picture left)
appears.
MASS FLOW TRANSMITTER
Batch Display
Batch Setup Next
MASS FLOW TRANSMITTER
X.XX kg
Start Stop Next
If you press Batch you can use the left pushbutton as Start and middle as Stop.
Press Setup to configure the Pset value in mass flow units and after pressing Next and passing the
password, the Pwarn setup menu will appear.
To Next Page
