RHEONIK Messgeräte GmbH REV. I, Apr. 2004
.
Operation Manual RHE 07, 08, 11
Page
8
fixation screw
If you are connecting flexible tubing or hose
directly to the sensor please use sensor
housing flanges for rigid sensor mounting. In
order to insure a stable zero point, the sensor
must be firmly installed.
Use a high quality valve downstream from the
sensor for proper zero point calibration. For
sensor sizes RHM 015, 03 und 04 two valves,
upstream and downstream, are recommended. Since the piping is not stable, we recommend install-
ing these sensor sizes directly on the connection block.
For mechanical installation of these small meters we recommend a mounting skid made of alumin-
ium, in order to achieve an optimum of stability with low installation time and costs.

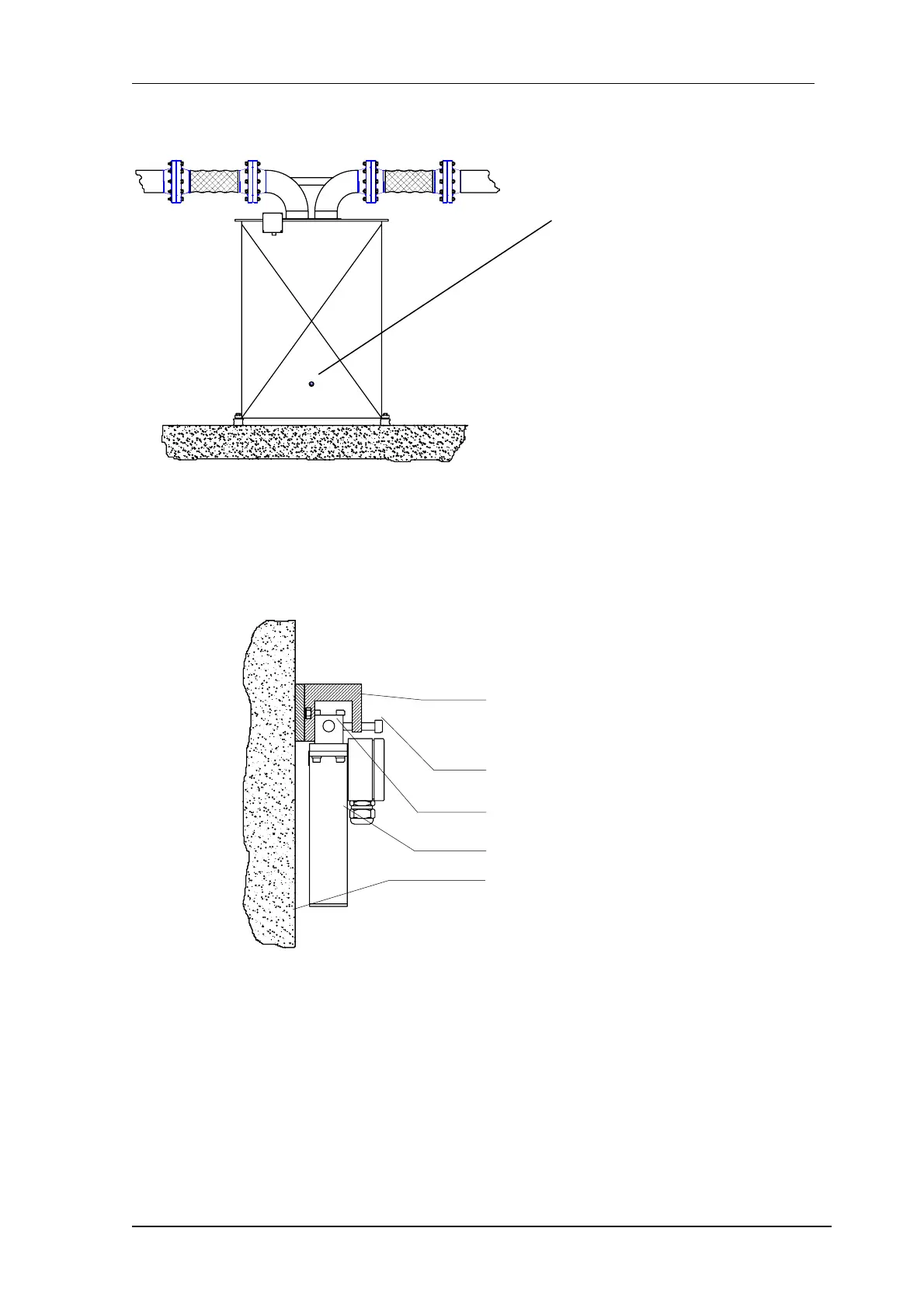

Installing scheme with holder:
The sensor RHM, as well as the measuring cable (RHM/RHE) must be installed as far away from
sources of electrical interference (transformers, high tension switching components, large electrical
motors, frequency converters, etc.) as possible.
sensor RHM ..
connection block
fixation screw
mouting skid for wall mounting
wall or rigid skid
