ASSEMBLY
GR60/72 02/07 Assembly Section 3-6
© 2007 Alamo Group Inc.
ASSEMBLY

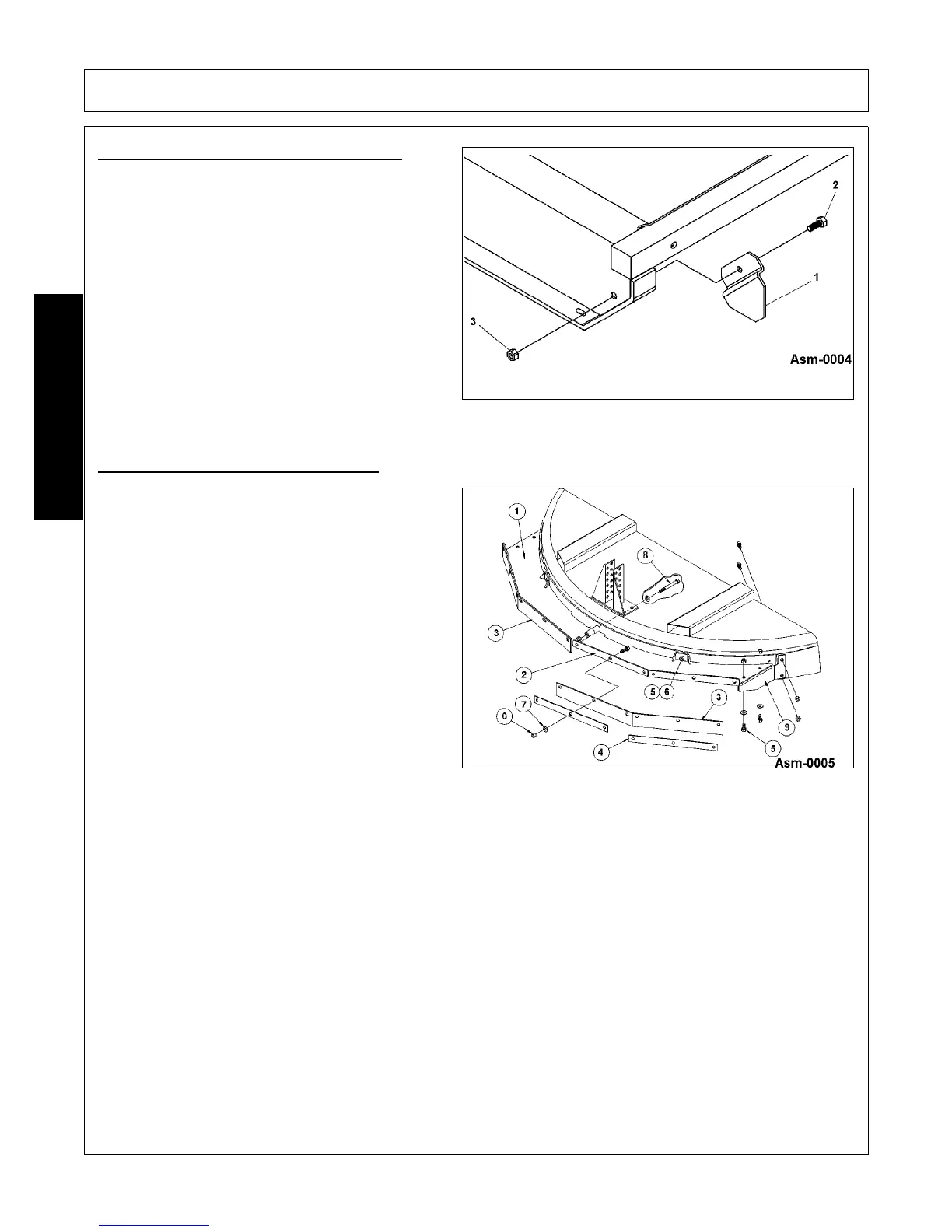

Deflector Corner Plate (Figure Asm-0004)
1. Attach the corner plate (1) to the side of the
deck with a 1/2" x 1-1/4" Bolt (2), and Locknut
(2).
Rear Deflectors (Standard Equipment)
Rear Deflector (Figure Asm-0005)
1. Attach both Deflectors (1 & 2) to deck using 1/
2" x 1-1/4" Bolts (5) and Locknuts (6). In center
of deck use Bolt 8) and Locknut (6) to tie both
Deflectors (1 & 2) together.
2. Secure Debris Deflector (3) to Deflector (1 & 2)
using 1/2" x 1-1/4" Bolts (5), Bar (4),
Flatwashers (7), and Locknuts (8).
3. Fasten Rear Plate (9) on both ends of Deflector
(1 & 2) using 1/2" x 1-1/4" Bolts (5) and
Locknuts (6).
