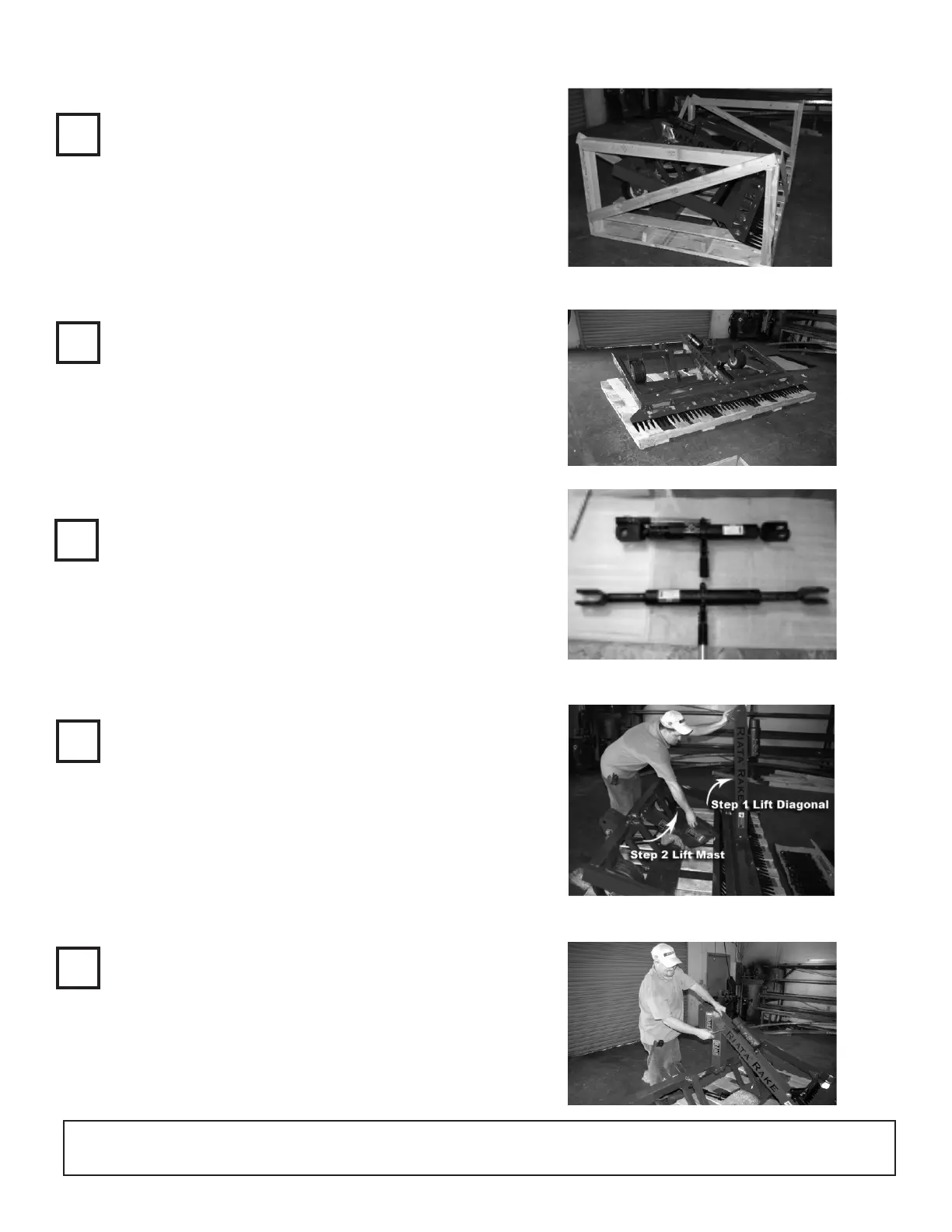

EXTEND RATCHET JACK
Ratchet Jack is attached to tine bar of unit.
Fully extend the ratchet jack for later assem-
bly.
REMOVE PALLET SIDE/CROSS BRACING
Removing the side bracing and cross brac-
ing will provide access to assemble Riata
Rake.
POSITION SPINE DIAGONAL MEMBERS
(two person operation)
1) Lift spine diagonal to a vertical position, then
lift the mast to a vertical position. Diagonal ts
over the vertical mast.
1
2
4a
3
DISCARD PALLET BRACING
Removing the side bracing and cross brac-
ing will provide access to assemble Riata
Rake.
CONNECT SPINE DIAGONAL MEMBERS
After joining spine mast and diagonal, connect
using the 1" pin.
4b
8 DEALER INSTRUCTIONS
