RIB L1/R2-CRX User Manual

32
G
B

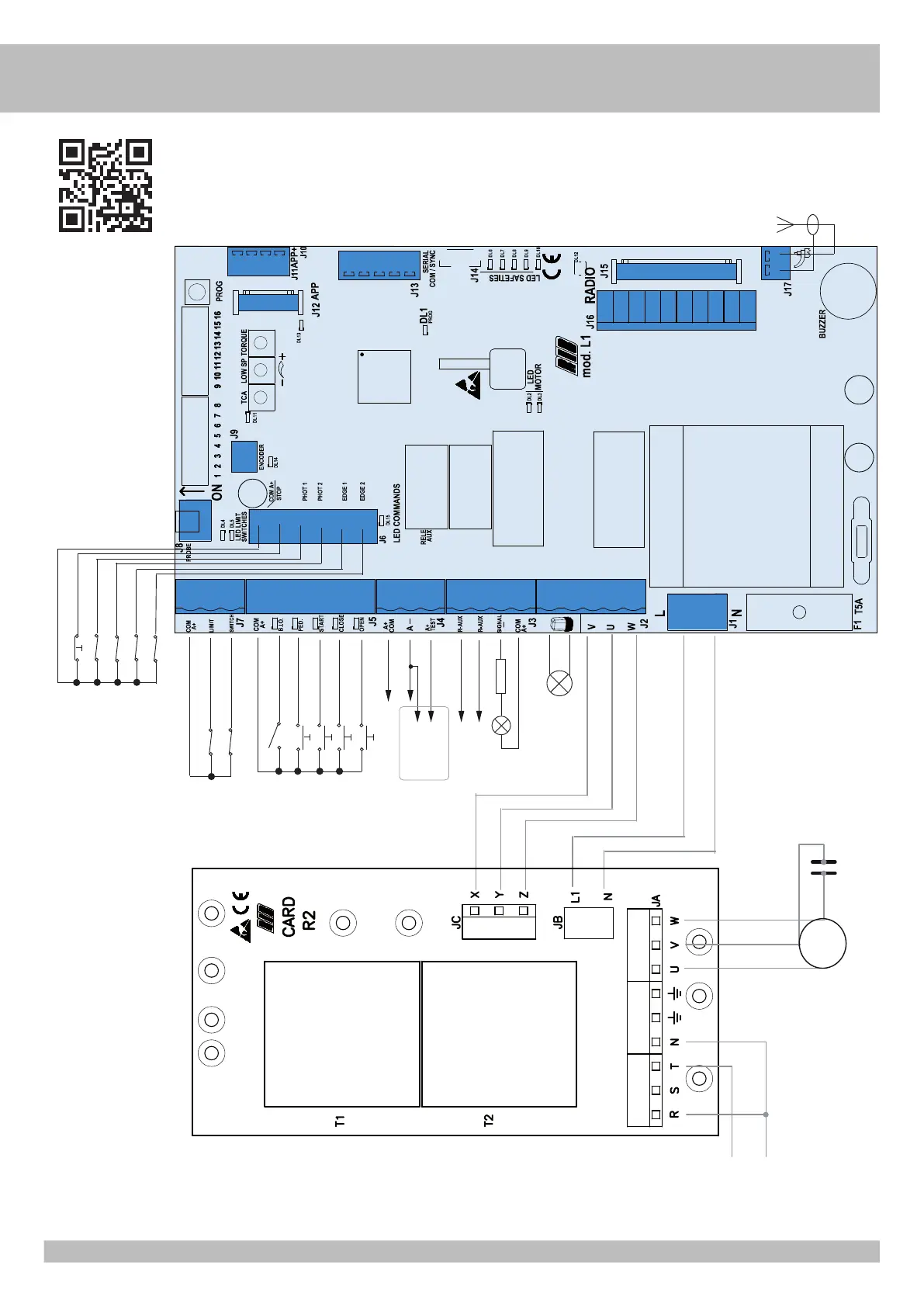

ELECTRIC CONNECTIONS
L1 code AC08082
M
BLINKER
230Vac 40W MAX
LIMIT SWITCH LIMIT SWITCH
COMMON
PHOTOCELL 1
PEDESTRIAN
OPEN
STOP
CLOSE
TIMER
SINGLE COMMAND
LED
R=2,2K 1/4W
COMMON COMMON
COMMON
COMMON
EDGE 2
PHOTOCELL 2
EDGE 1
A+TEST / A- PHOTOCELLS AUTO-TEST
ANTENNA 433 MHz
ANTENNA BRAIDING
24Vdc 0,4A ±15% 24Vdc 0,4A ±15%
700 W MAX
CLOSE
OPEN
COMMON
POWER SUPPLY
230Vac 50 Hz
CAPACITOR
