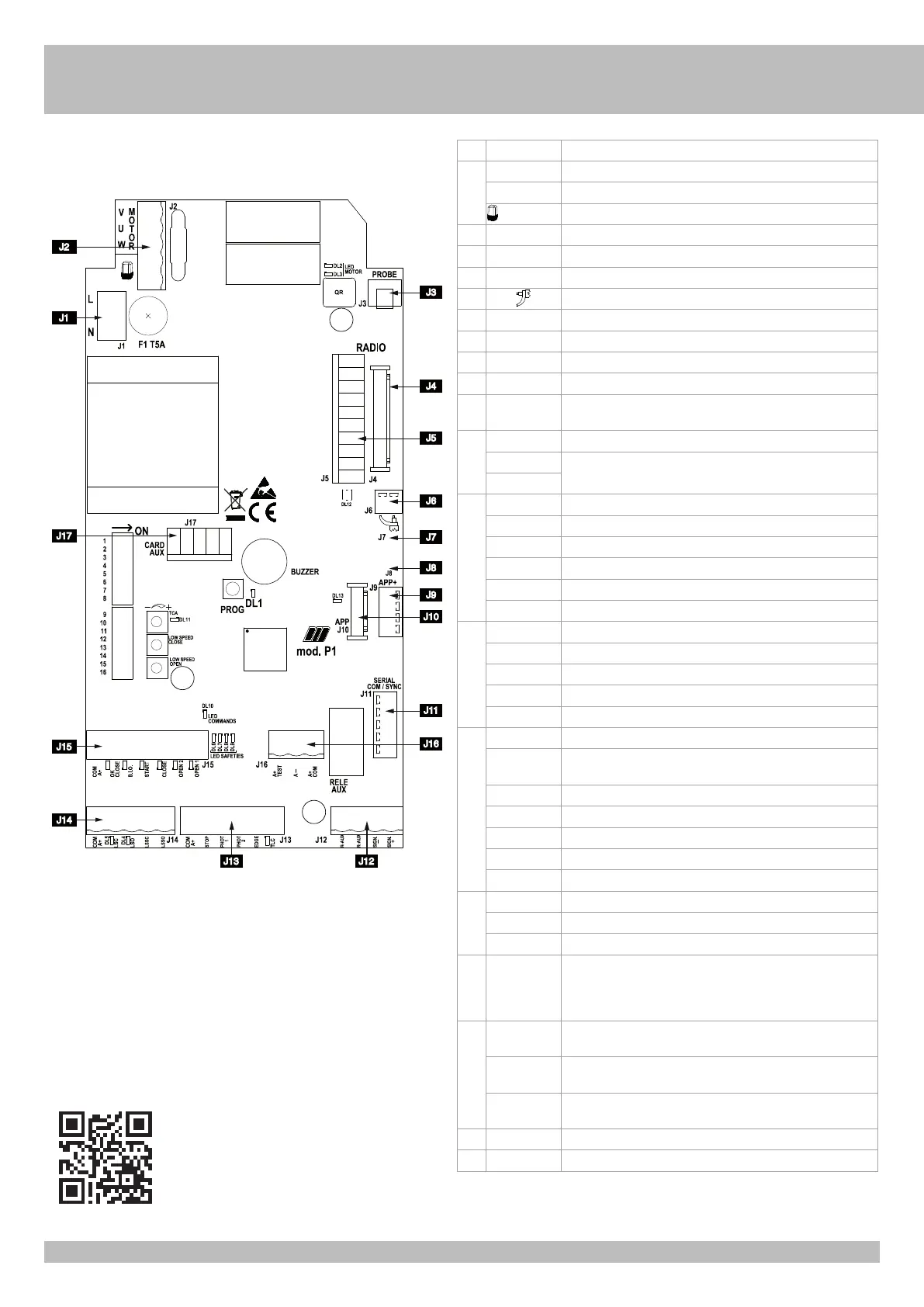

POINT A- CONTROL PANEL FEATURES
J1
J15
J17
J2
J14
J4
J5
J3
J6
J9
J10
J11
J16
J7
J8
J13 J12
J1 L-N 230 Vac 50/60Hz power supply (120 Vac 60 Hz upon request)
J2 U - MOTOR Motor common connection
V-W - MOTOR Motor phases and capacitor connections
Flashing light (max 40W )
J3 PROBE Temperature sensor cable connection probe (code ACG4666 optional)
J4 RADIO Connector for radio module ACG8069
J5 RADIO Connector for radio receiver RIB, 24 Vdc supply
J6
433 MHz Radio antenna
J7 Predisposition for inverter (available)
J8 RS485 termination of J9
J9 APP+ Connector for APP+ card
J10 APP Connector for APP card
J11 SERIAL COM /
SYNC
Connector for serial connection
J12 R-AUX Auxiliary relay contact (NO) Max 700 W
SIGN. - Gate open state (12 Vdc 3 W max)
SIGN. +
J13 COM A+ Common contacts / Positive 24 Vdc
STOP STOP impulse contact (NC)
PHOTO 1 Photocells contact 1 (NC)
PHOTO 2 Photocells contact 2 (NC)
EDGE Edge contact (NC)
TLC Vehicle presence signal (NO) (only when switched to PARK mode)
J14 COM A+ Common contacts / Positive 24 Vdc
LSC Closing limit switch contact (NC)
LSO Opening limit switch contact (NC)
LSSC Closing slowing down limit switch contact (NO)
LSSO Opening slowing down limit switch contact (NO)
J15 COM A+ Common contacts / Positive 24 Vdc
OK CLOSE Immediate closure command contact (only when switched to PARK
mode)
B.I.O. Contact (NO) dedicated to a timer
START Single pulse contact (NO)
CLOSE Closing impulse contact (NO)
OPEN 2 Opening impulse contact (NO) - to exit (only in PARK mode)
OPEN 1 Opening impulse contact (NO) - to enter
J16 A+ COM + 24 Vdc accessories power supply
A- - 24 Vdc accessories power supply
A+TEST + 24 Vdc photocells self-test power supply
J17 CARD AUX Card 1 relay connector (code ACQ9080) for management of courtesy
light or boom arm locking magnet
Card 3 relay connector (code ACQ9081) for management of courtesy
light or boom arm locking magnet and traffic lights.
TCA Trimmer for automatic closing time adjustment (By factory DISABLED
AND DL11 LED OFF)
LOW SPEED
CLOSE
Electronic regulator for low speed on approach in closure
LOW SPEED
OPEN
Electronic regulator for low speed on approach in opening
PROG. Programming button
F1 F T5A Fuse for motor protection
