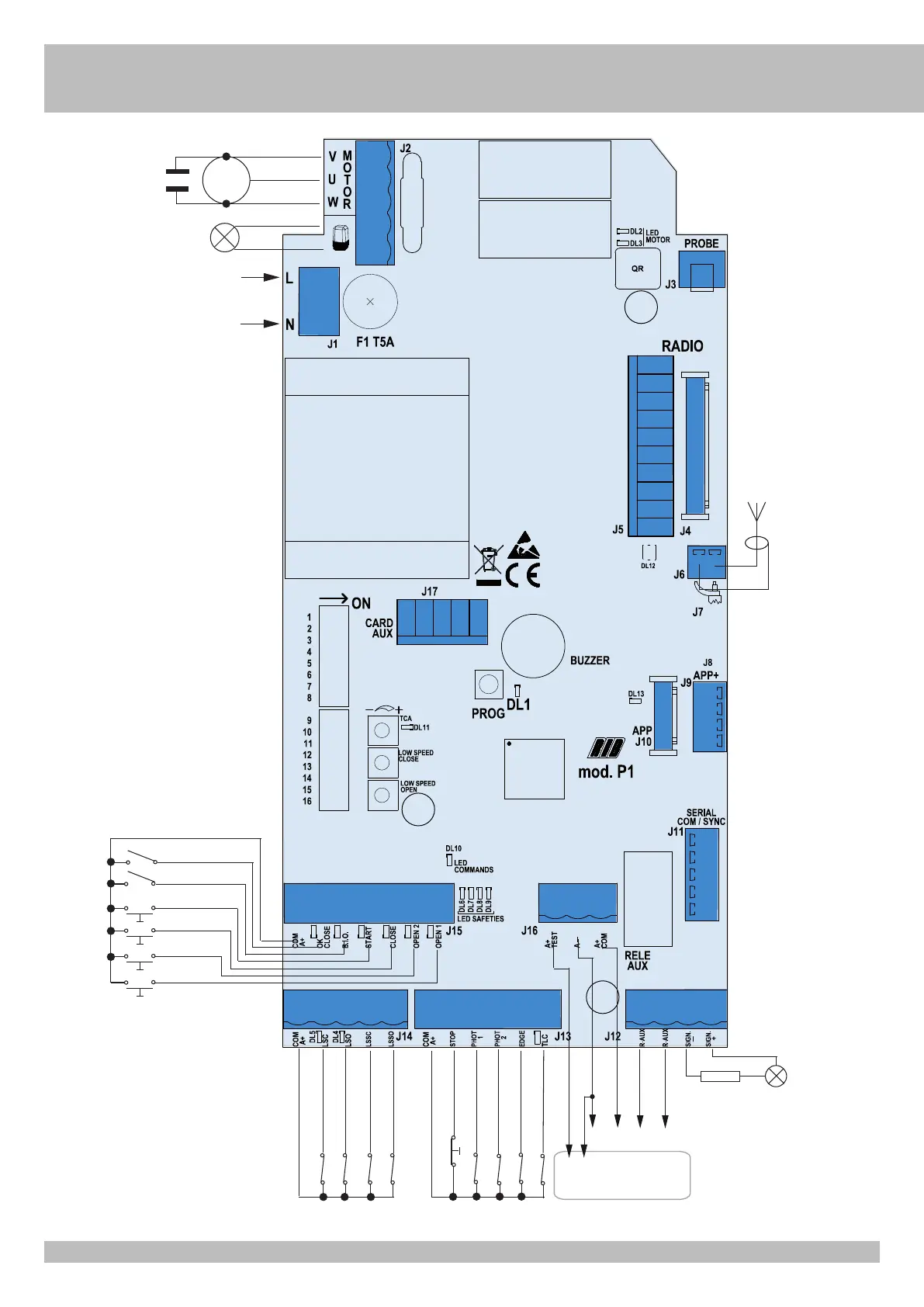

ELECTRIC CONNECTIONS
M
ANTENNA
433 MHz
ANTENNA
BRAIDING
CLOSE
OPEN
COMMON
BLINKER
230Vac 40W
POWER SUPPLY
230Vac 50 Hz
TIMER
OPEN 2
CLOSE
OK CLOSE
SINGLE COMMAND
OPEN 1
24Vdc 0,4A ±15%
24Vdc 0,4A ±15%
A+TEST / A-
PHOTOCELLS
AUTO-TEST
LED
R=2,2K 1/4W
LIMIT SWITCH CLOSE
LIMIT SWITCH OPEN
LIMIT SWITCH LOW SPEED CLOSE
LIMIT SWITCH LOW SPEED OPEN
COMMON
PHOTOCELL 1
STOP
MAGNETIC LOOP ON ENTRANCE
PHOTOCELL 2
EDGE
COMMON
COMMON
COMMON
700 W MAX
G
B
