Ribind UP - Sliding Arm Installation; Positioning Drills for Sliding Arm

40
1
2
~ 6 mm
Fig. A
G
B
X* = 52mm (STANDARD) X* = STANDARD + ACG9485 (110 mm)

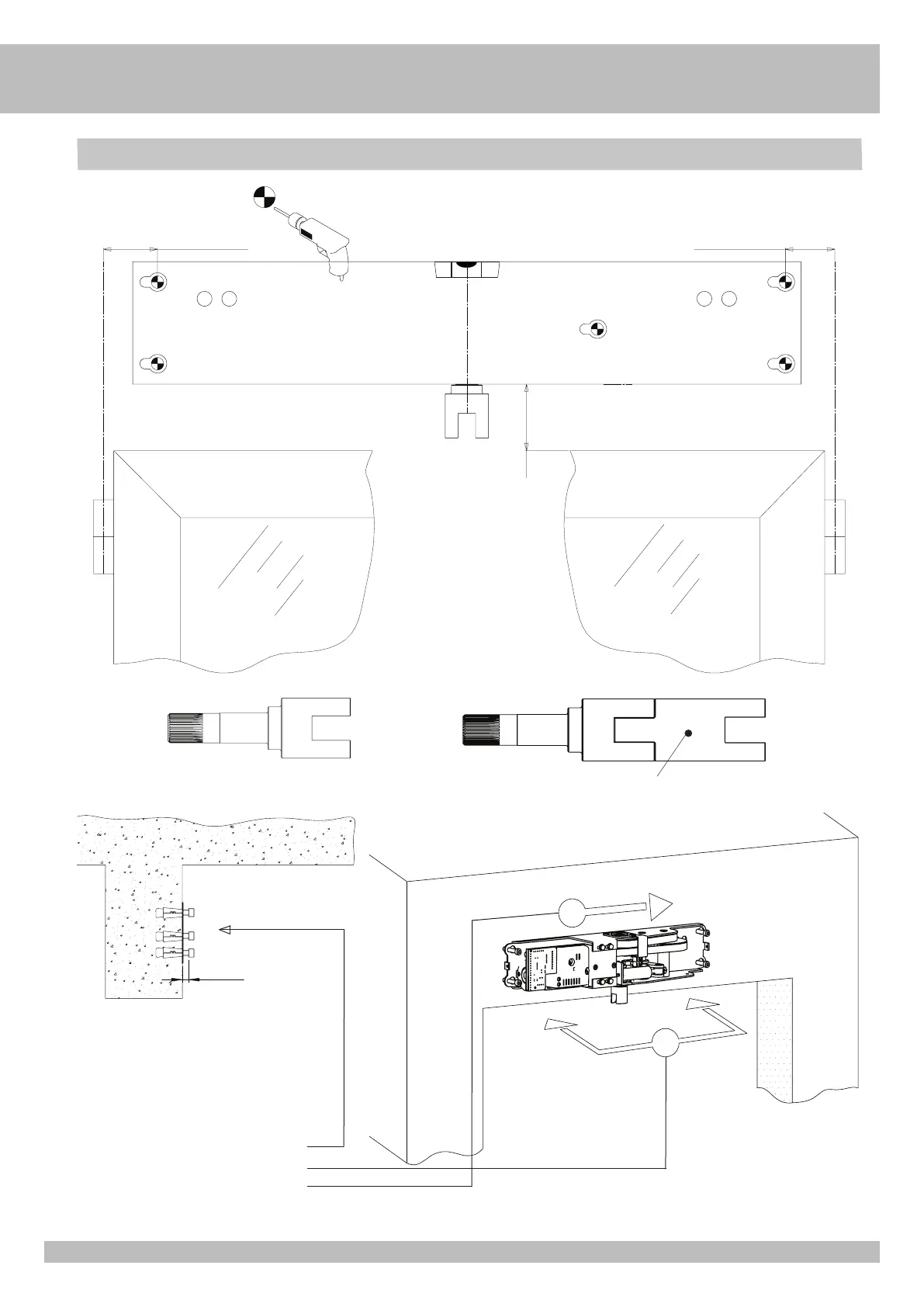

Positioning of drills to fasten UP automation with sliding arm (AA12052)
1 - Check that the wall is straight and
smooth.
2 - Drill the holes respecting the measures
as in Pic.A.
3 - Insert the dowels (stand. equipment)
or threaded M8 screws.
4 - Insert the screws but leave them
loosen (~6 mm) in order to hook up
and shift (rightward) the automation.
5 - Fasten firmly the automation to the
wall tightening the M8 screws.
20 mm from door hinge 30 mm from door hinge
X*
electric cable entry electric cable entry
LEFT DOOR HINGE
RIGHT DOOR HINGE
= Drill a hole Ø6,5 and thread it in order to use M8 screws - Drill a hole Ø14 if you prefer to use Fischer dowels.
UP INSTALLATION with sliding arm for inward openings
