41
OPEN

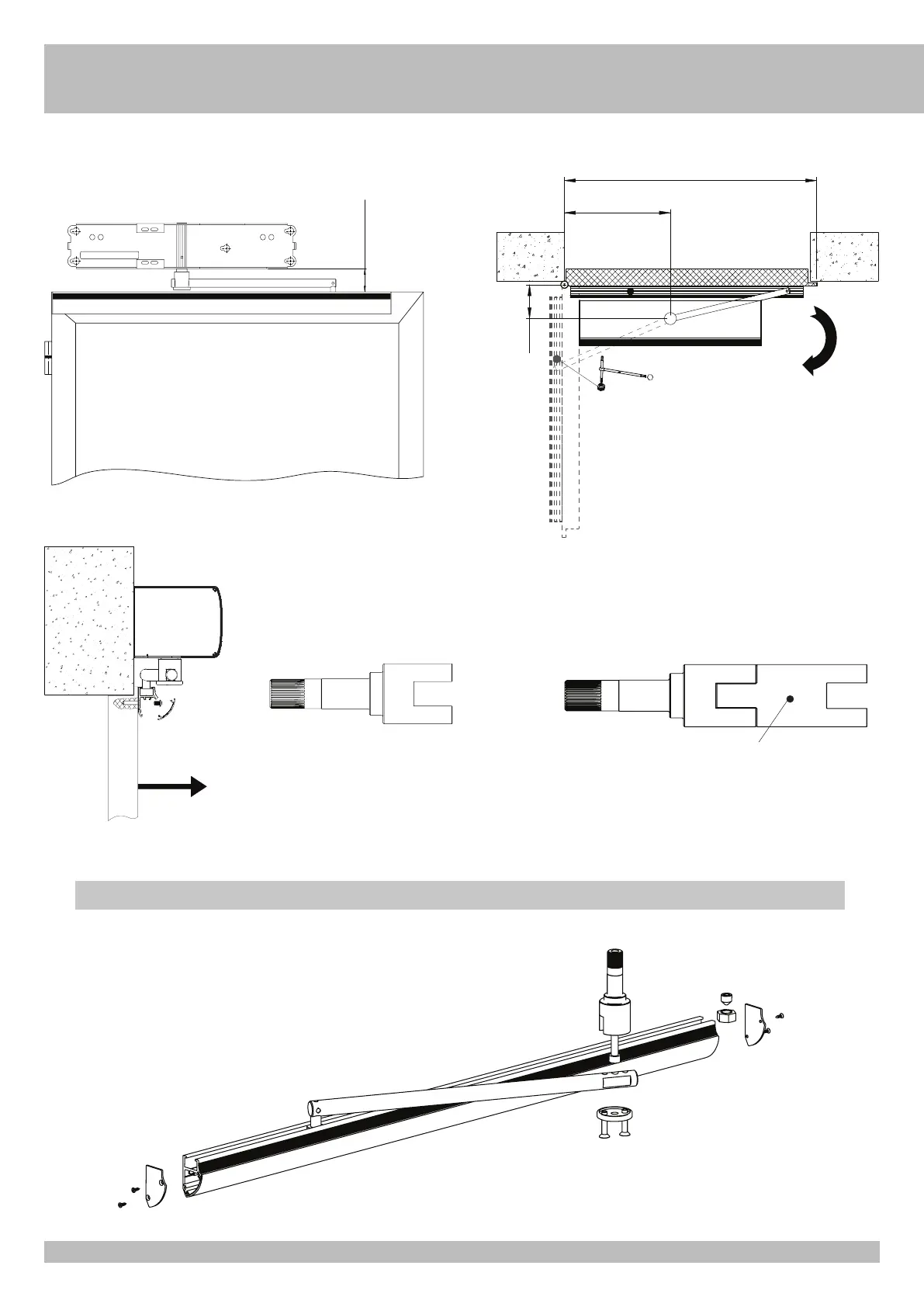

Fasten the sliding track on top of the leaf as shown in the pictures, respecting the given measures and cutting the part of the track in excess if the
leaf is too narrow.
(*) If needed, use the extension bush ACG9485 to increase the gap between the automation and the track to 110 mm.
Adjust the opening stopper
Sliding arm
Operate manually the leaf both in opening and closure to check the absence of frictions.
Adjust the position mechanical stops of the leaf inside the track, as shown in the picture.
X* = 52mm (STANDARD) X* = STANDARD + ACG9485 (110 mm)
G
B
