Ribind UP - Safety Radar Connection

51

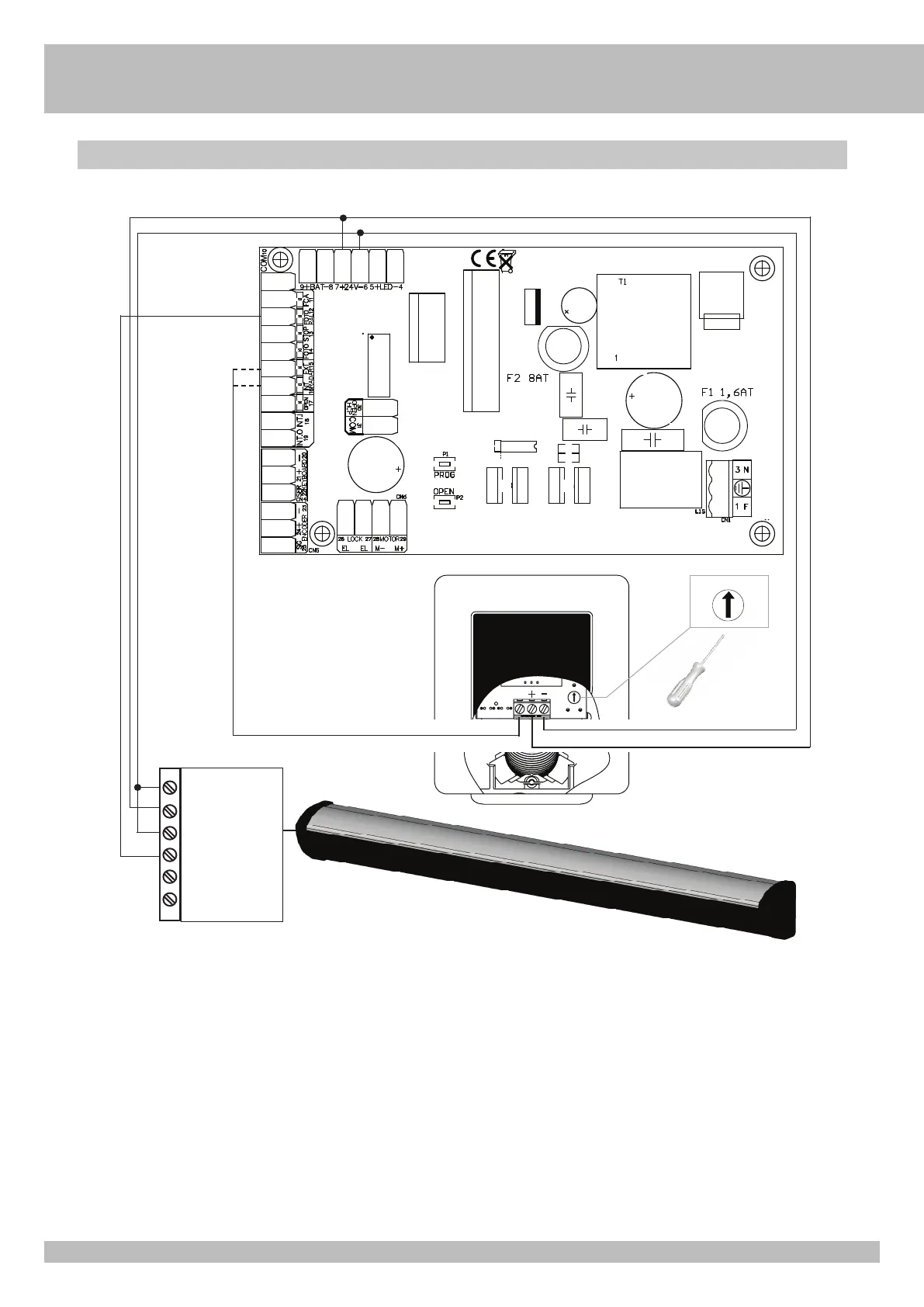

Safety Radar electrical connections
cod.AC08003
SIG.
- +
SENSIBILITY
- +
7 +
6 -
6 -
7 +
RADAR INT. / EXT
1 -
2 +
3 com
4 nc
5 no
6 Test input
7 +
6 -
cod.ACG9478
cod.ACG9420
Connection for safety sensor (cod. ACG9478) in opening
4nc radar terminal with FOTO12 terminal control unit
Connection for safety sensor (cod. ACG9478) in closure
4nc radar terminal with FOTO14 terminal control unit
COM10
G
B
