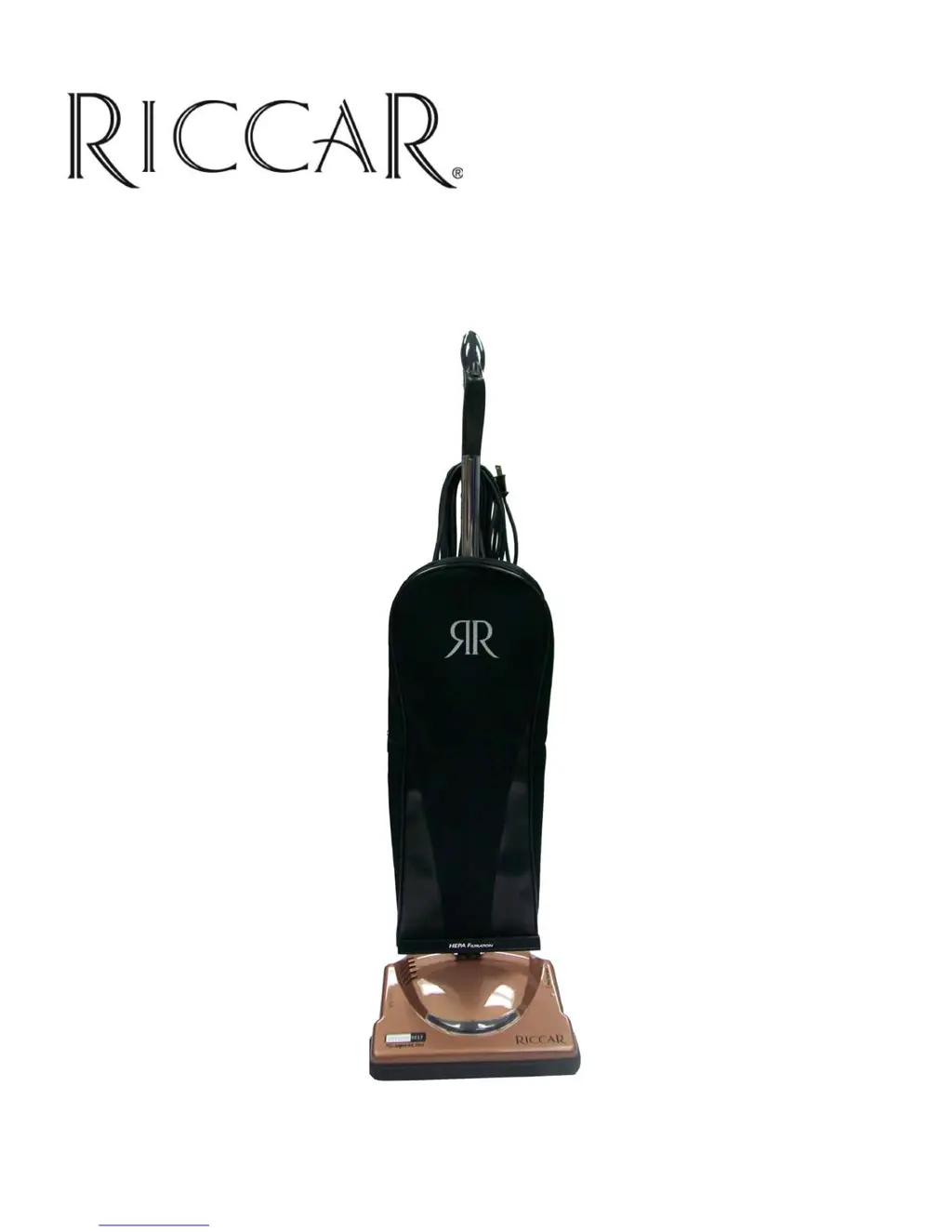

Ultra Lite Weight Vacuum
Service Manual
RSL1 RSL1A RSL1AC RSL2 RSL3 RSL3C RSL4 RSL5 RSL5C
Revision: 1.1
Issued: 08-22-2012

Table of Contents

Questions and Answers

  • M
    Mallory MarshAug 19, 2025
    What to do if my Riccar Vacuum Cleaner has no power or is turning on/off?
    • L
      lmillerSep 12, 2025
      If your Riccar Vacuum Cleaner is not getting power or is turning on and off, there are several things you can check: * Ensure the outlet has power. * Inspect the power cord for any breaks and replace if necessary. * Check and reset the circuit breaker located on the back of the vacuum. * If the vacuum shuts off when the handle is moved, inspect the wiring in the grip for pinched or cut wires. * Test the handle switch continuity and replace if damaged. * Inspect the motor for damage, burning, or loose connections and replace if needed.
  • J
    Julie BlankenshipAug 21, 2025
    Why is my Riccar RSL1 belt wearing too fast or breaking constantly?
    • C
      Catherine KimAug 21, 2025
      If the belt on your Riccar Vacuum Cleaner is wearing too fast or breaking constantly, it could be due to: * A defective belt: Replace the belt. * The agitator bearing seizing: Replace the bearing (steel) or the agitator (wood). * The motor shaft being contaminated: Clean the motor shaft. * A problem with the motor: Check the armature shaft for play.
  • T
    Tracy MurrayAug 25, 2025
    Why is my Riccar RSL1 not cleaning the floor surface properly?
    • C
      Cynthia BallAug 25, 2025
      Your Riccar Vacuum Cleaner might not be effectively cleaning the floor due to several reasons: * A weak belt: Replace the belt. * Worn brushes: For wooden brushrolls, flip the agitator end caps over so that the rounded side touches the baseplate to extend their life. * A full bag: Change the filter bag. * A clog: Remove the clog. * Compromised motor seals: Replace the motor seals.
  • C
    christina73Aug 26, 2025
    What to do if my Riccar Vacuum Cleaner motor stops and the brush roll jam light is flashing?
    • F
      Frank GomezAug 27, 2025
      If the motor stops and the brush roll jam light is flashing on your Riccar Vacuum Cleaner, the following could be the reason: * There is an obstruction in the brushroll or motor fan: Remove the obstruction. * The belt is broken or stretched: Replace the belt. * Hall Sensor or PC board problem: Bypass the hall sensor using the hall sensor test plug ( part number D001-0000.) If the problem persists during hall sensor bypass, replace PC board. If the problem is not present during hall sensor bypass, replace hall sensor assembly
  • S
    Spencer FloresAug 28, 2025
    Why is my Riccar RSL1 not picking up well?
    • J
      John HouseAug 28, 2025
      If your Riccar Vacuum Cleaner isn't picking up well, it could be due to: * A stretched or worn belt: Replace the belt. * A full filter bag: Replace the filter bag. * Worn brush strips: Flip the agitator (wood) over or replace the brush strips (steel). * The bottom plate not installed correctly: Snap the bottom plate in place.
  • N
    Nicole NelsonAug 30, 2025
    Why does my Riccar RSL1 Vacuum Cleaner have excessive vibration or loud noise?
    • R
      Rebekah HudsonAug 30, 2025
      Excessive vibration or loud noise in your Riccar Vacuum Cleaner can be caused by: * A damaged agitator bearing: Replace the bearing or agitator. * The agitator being out of balance: Replace the agitator.
  • J
    James NolanSep 2, 2025
    Why does my Riccar RSL1 Vacuum Cleaner motor go on and off or not start at times?
    • D
      Danielle CarterSep 2, 2025
      If your Riccar Vacuum Cleaner motor is going on and off, or not starting consistently, it could be due to: * Stuck or worn carbon brushes: Replace the motor. * A shorted out armature: Replace the motor.
  • R
    rbarnesSep 4, 2025
    Why is my Riccar RSL1 Vacuum Cleaner hard to push on deep pile carpet?
    • J
      jasonmillerSep 4, 2025
      If your Riccar Vacuum Cleaner is hard to push on deep pile carpet, consider the following causes: * A stretched belt: Replace the belt. * Grime on the bottom plate: Clean the bottom plate. * Worn brushes: For wood agitators, flip the agitator over or replace it. For steel agitators, replace the brush strips. * Wheels not turning: Lubricate the wheels with grease. * Bottom plate out of place: Snap the bottom plate in place.
  • T
    tyler22Sep 6, 2025
    Why does my Riccar Vacuum Cleaner keep tripping the circuit breaker?
    • S
      sjenningsSep 6, 2025
      Your Riccar Vacuum Cleaner might be tripping the circuit breaker due to: * An obstruction in the brushroll or motor fan: Remove the obstruction. * A weak circuit breaker from repeated tripping: Replace the circuit breaker. * The agitator seizing up: Replace the agitator. * A defective motor: Replace the motor.
  • C
    christianmichaelSep 9, 2025
    Why is my Riccar RSL1 power cord getting hot?
    • T
      Thomas MillerSep 9, 2025
      If your Riccar Vacuum Cleaner's power cord is getting hot, it could be due to: * A short in the vacuum: Check the Amps. * The cord not being uncoiled: Uncoil the power cord.

Summary

Basic Assembly and Operation

Parts Identification

Identifies key components of the vacuum cleaner with labels and images.

Grounding Instructions

Explains the importance and method of grounding the vacuum for electrical safety.

Installing the Handle

Vacuum Operation

Details how to operate the vacuum cleaner, including on/off functions and lowering the handle.

Circuit Breaker Protector

Explains the function of the circuit breaker and how to reset it if tripped.

Maintenance

How to Change the Vacuum Bag

Replacing the Belt (RSL1-RSL4)

Step-by-step guide for replacing the drive belt on specific vacuum models.

Replacing the Belt (RSL5, RSL5 C)

Instructions for replacing the drive belt on RSL5 and RSL5C vacuum models.

Replacing the Power Cord (RSL1-RSL1 AC)

Step-by-step guide for replacing the power cord on RSL1, RSL1A, and RSL1AC models.

Replacing the Power Cord (RSL2-RSL5 C)

Instructions for replacing the power cord on RSL2, RSL3, RSL3C, RSL4, RSL5, RSL5C models.

Replacing the Switch

Replacing the Circuit Breaker

Details the process for replacing the circuit breaker on applicable vacuum models.

Replacing the PC Board (RSL4)

Replacing the PC Board (RSL5, RSL5 C)

Accessing the Handle Duct and Motor

Removing Clogs

Replacing the Motor Fan

Replacing the Motor

Replacing the Hall Sensor Assembly

Agitator Disassembly

Troubleshooting

Vacuum Performance Issues

Belt Wearing or Breaking

Operational Problems

Motor and Electrical Problems

Troubleshooting for motor issues, sparks, smells, power loss, and cord heating.
