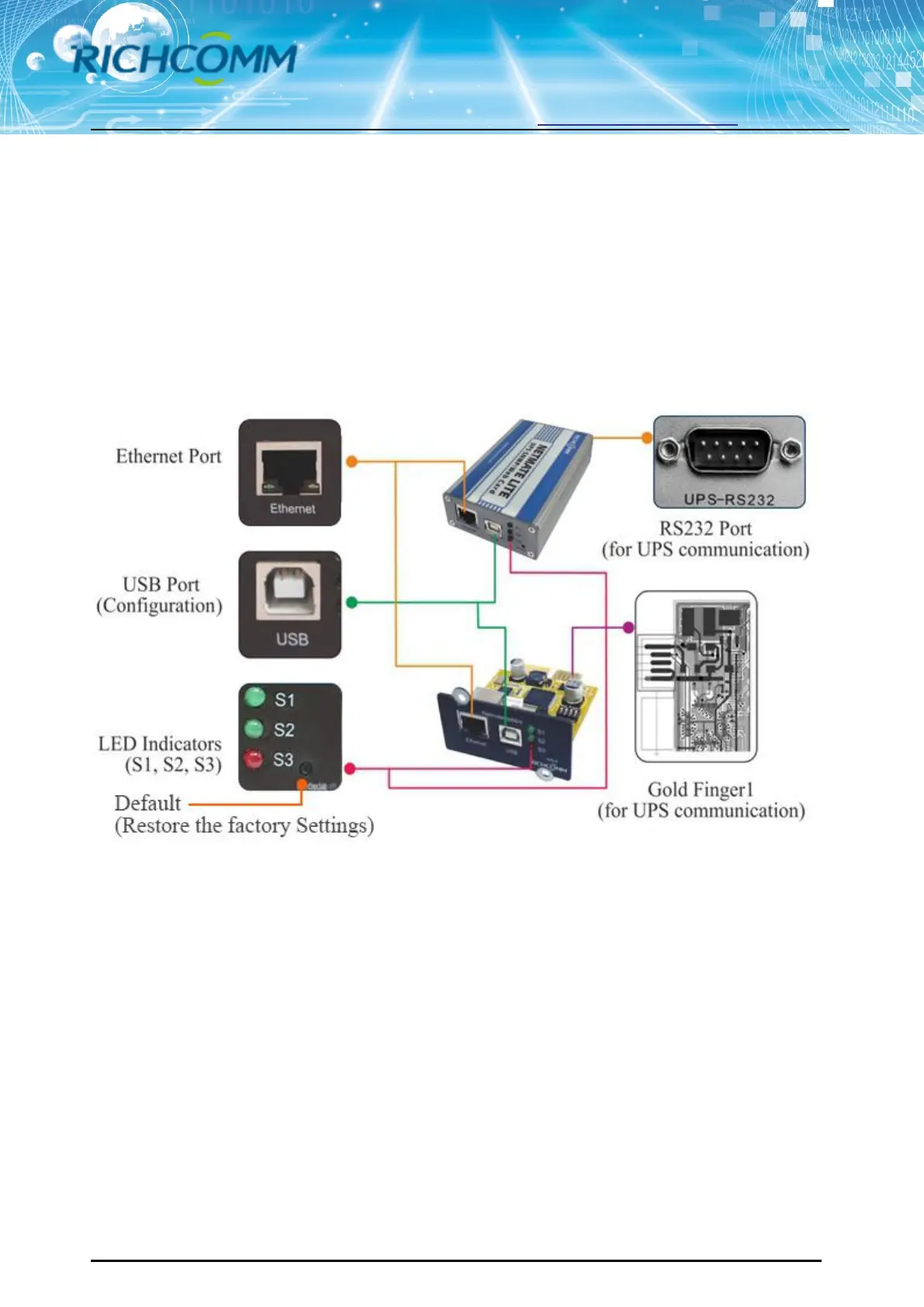

1. Ports Definition
NetmateLite/NetmateLite Mini/NetmateLite SE Available
① Ethernet Port: UTP 10/100M RJ45 Ethernet port.
② USB Port: For initial configuration;
③ S1 (Green): Running indicator, flash is normal;
④ S2 (Green): SNMP running indicator, flash is normal, flash frequency is determined by
SNMP inquire cycle;
⑤ S3 (Red): Device status indicator (red), continuous on shows connected well with UPS and
have communication, flash shows device disconnected or communication failed;
⑥ Default: Factory default switch;
⑦ RS232 Port(External card): Connect with UPS;
