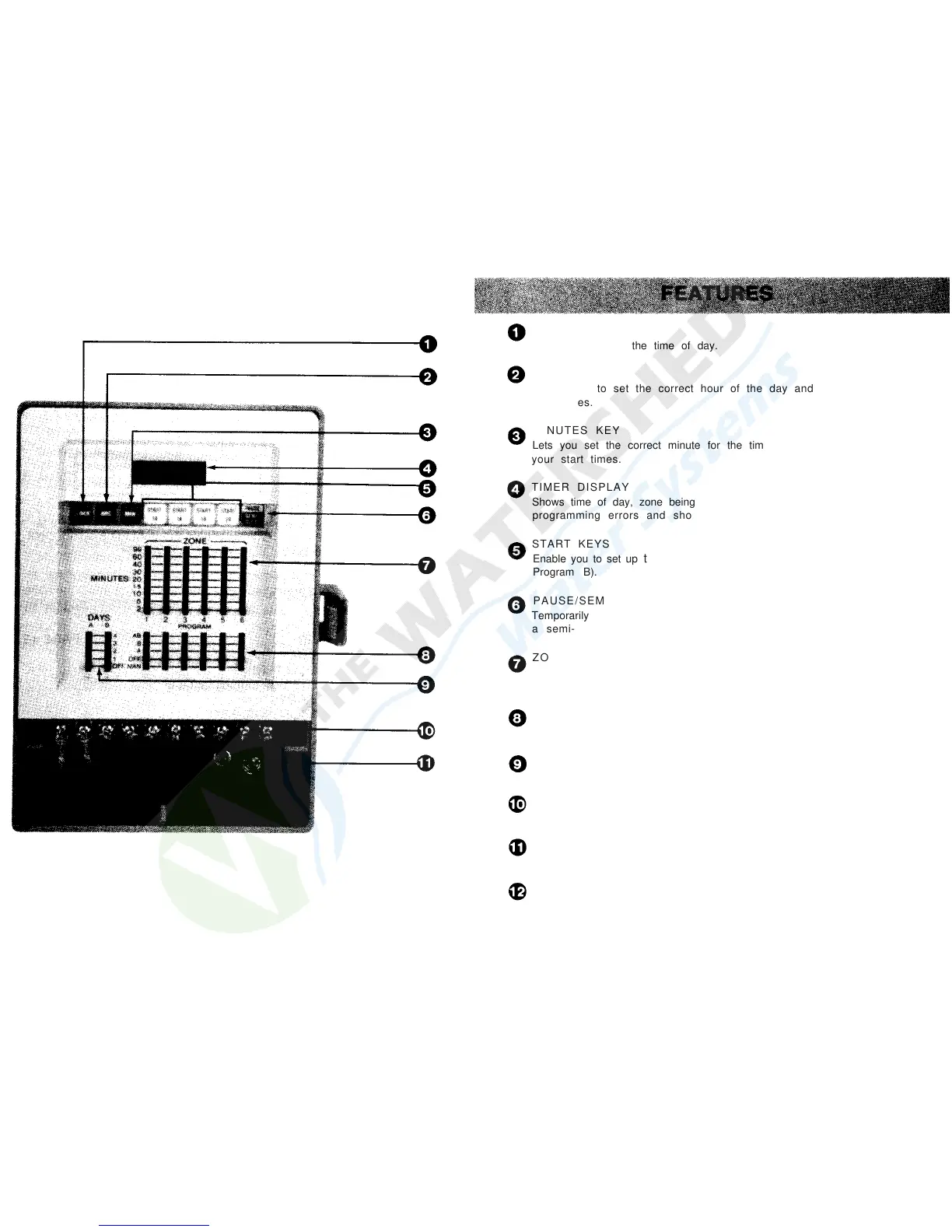

CLOCK KEY
Allows you to set the time of day.
HOURS KEY
Allows you to set the correct hour of the day and the hours for your
start times.
MINUTES KEY
Lets you set the correct minute for the time of day and the minutes for
your start times.
TIMER DISPLAY
Shows time of day, zone being watered, watering run
time. Also
indicates
programming errors and short circuits.
START KEYS
Enable you to set up
to four start times per day. (2 on Program
A and
2 on
Program B).
PAUSE/SEMI-AUTO KEY
Temporarily interrupts a watering cycle in progress or allows you to start
a semi-automatic watering cycle.
ZONE-MINUTES SWITCHES
Allow you to choose a separate watering time for each zone
-
from 2
minutes to 99 minutes.
ZONE-PROGRAM SWITCHES
Let you set a different program for each zone. (A, B, or AB).
PROGRAM-DAY SWITCHES
Let you set up different day intervals for each program.
TERMINAL SCREWS
Connect valve wires to terminal.
BATTERY CONNECTOR
Connects to a 9 volt battery for safetyclockback-up.
PLUG IN TRANSFORMER (NOT SHOWN)
Enables timer to run from a conventional 120 volt wall outlet.
5
