Richell 80004 - Assembly Instructions; Install Back and Side Panels; Install Front Panel; Install Door Lock Receivers

How to Assemble
Use a Philip-head screw driver for assembly.
※Finish tightening all bolts after the product is assembled.
2
Installation of Front Panel
2.
Installation of Door Lock Receiver and
Side Receiver
3.
Bolts
Flat Washers
Spring Washers

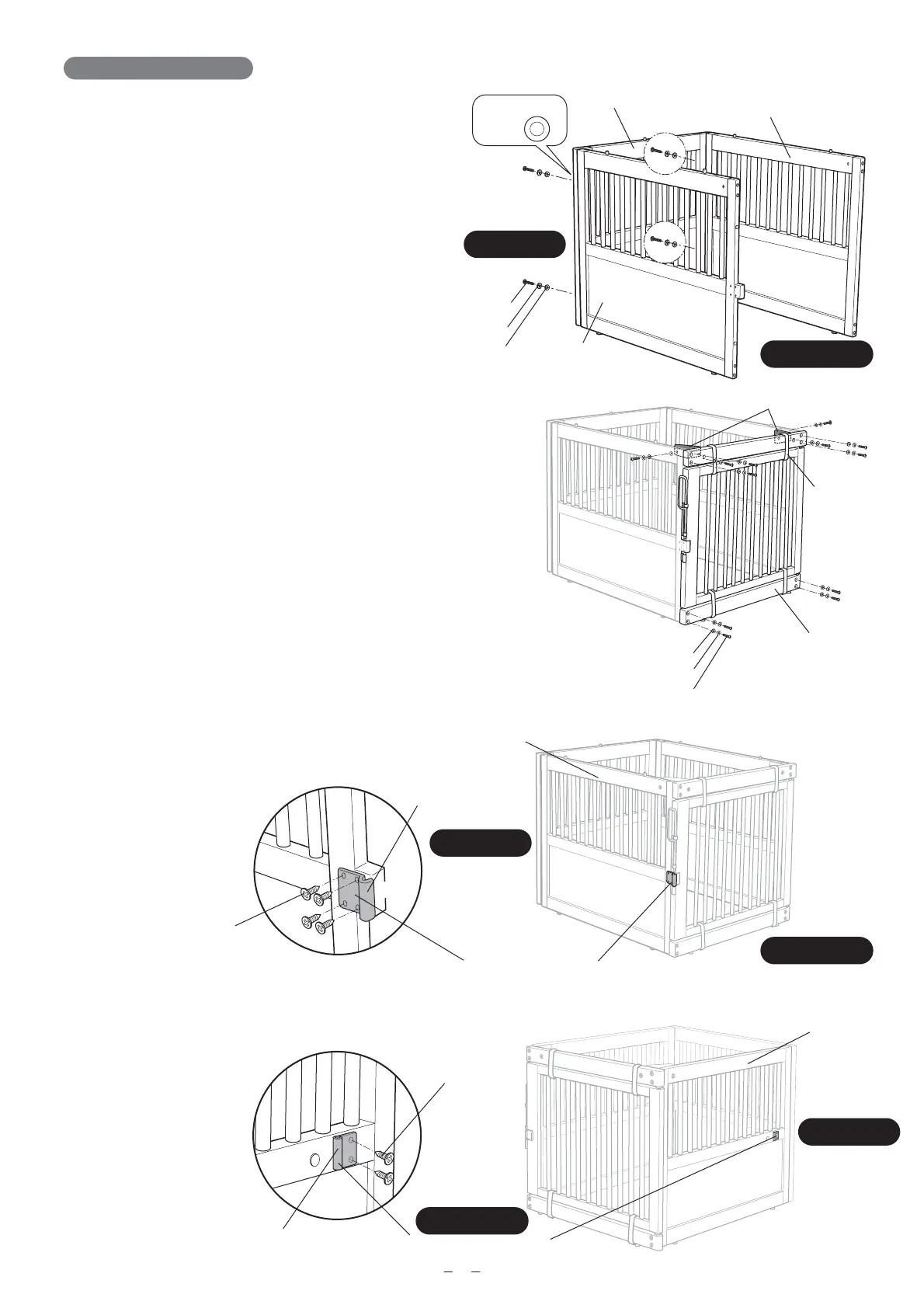

Attach Right/Left Side Panels to Front Panel using
Flat Washers, Spring Washers and Fixing Bolts. (8 places)
※Do not remove Protective Tape (Top and Bottom) on
Front Panel.
Attach Door Lock Receiver on Left Side
Panel using Fixing Bolts. (4 places)
Make sure lock receiving part of Door
Lock Receiver faces front side of this
product as shown below.
（1）
（1）
（2）
Attach Door Lock Side Receiver on Right Side
Panel using Fixing Bolts. (2 places)
Make sure lock receiving part of Door Lock Side
Receiver faces front side of this product as
shown below.
（2）
Attach Right/Left Side Panels to Back Panel using
Flat Washers, Spring Washers and Fixing Bolts.
(4 places)
・Back side of Right/Left Side Panels have 2 holes
on one place.
・Back side of the Back Panel has larger hole than
Front side.
Installation of Back Panel and Side Panels
1.
Bolts
Flat Washers
Spring Washers
Hole for the
Fixing
Bolt
Back Panel
Right Side Panel
Door Lock Side Receiver
Lock receiving part
Door Lock Receiver
Screws
Left Side Panel
Left Side Panel
Right Side Panel
Screws
Lock receiving part
Front
Front side
Front side
Front side
Back side
Back side
Back side
Front
Front Panel
Protective
Tape
Stiffener
Attach Stiffeners to Front Panel and Right/Left Side
Panels inside the crate using Flat Washers, Spring
Washers and Bolts. (Front has 2 places, Right/Left
on both sides have 1 place each.)
