Richell 80004 - Install Top Panel; Install Tray and Lock Door Mechanism

How to Lock/Release the Door Lock
How to Lock/Release the Door Lock
3
Release the Door Lock
(See ),
Then open the Door and slide the Tray in.

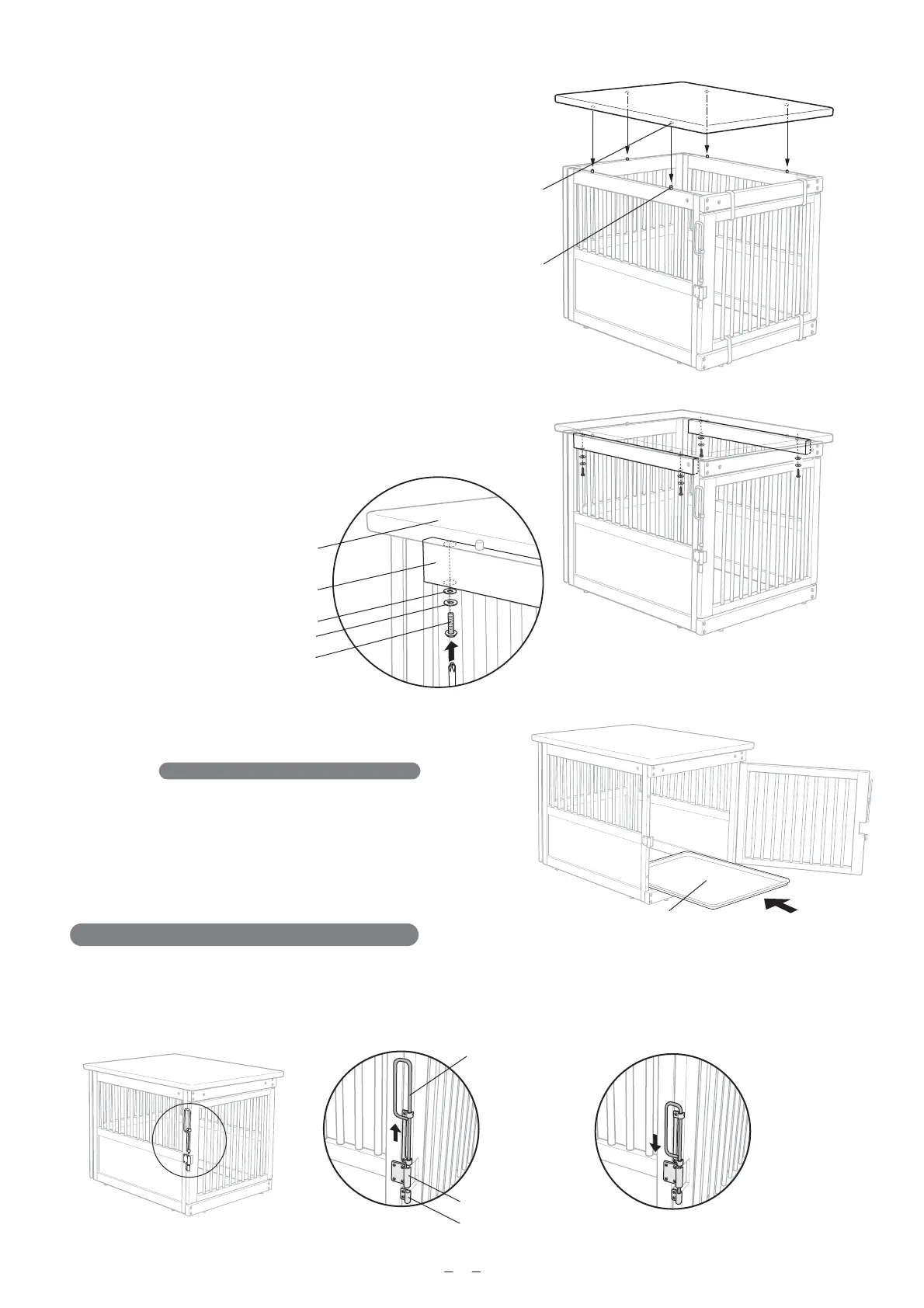

Installation for Top Panel
4.
Installation of Tray
5.
Insert dowels on top of Right/Left Side Panels (4 places)
and Back Panels (1 place) to holes of the back side of
Top Panel.
（1）
（1）
Attach Front Panel to Right/Left Side Panels using
Flat Washers, Spring Washers and Fixing Bolts. (4 places)
※Make sure to check Front Panel is attached to
Side Panels properly.
※Remove Protective Tapes (Top and Bottom).
Lift the Door Lock
all the way up.
<How to lock>
※Release Door Lock, using reverse procedures.
（2）
Then slide down the Door Lock to
insert the bottom of Door Lock into
the Receiver.
（2）
Tray
Bolts for Top Panel
Flat Washers
Top Panel
Dowel on the Side Panels
Hole of the back side of Top Panel
Top Frame of Side Panel
Spring Washers
Door Lock
Door Lock
Receiver
Receiver
