Remote Firmware Update
In addition to using an SD card, it is also possible to update the firmware by transmitting the firmware
files to the MFP/LP via a remote connection. Since these files are transmitted over public Internet
communication paths in some cases, routed through multiple servers before reaching their destination,
it is necessary to use the authentication process described above for remote updates as well. The
process for remote updates is virtually the same as that for the SD card-based update described
above, with the following differences:
Remote headers are attached to the digital signature before the files are sent to the MFP/LP.
If the update is interrupted for some reason, it is possible to retry the update by resending the file.
There are three main scenarios in which a remote firmware update is performed, the process for which
is the same as described above (see illustrations below). In each scenario, all of the security features
described above are employed.
The update is performed by a field engineer in the field via a PC
The update is performed using the @Remote function, normally by an individual with access rights
to the @Remote Center GUI
The update is performed via Web SmartDeviceMonitor Professional IS, usually by the end user
Digital
signature
Program
5. Generate MD1
using SHA-1
MD１
MD２
Public key
6. Decryption
7. Compare
MD and MD2
If MD1 ≠ MD２
Update process is cancelled and
new firmware is not installed
If MD1 = MD2
3. Verification of firmware version
8. Firmware is overwritten
with new files
2. Verification of model and target
machine functions (Copier, Printer, etc.)
Ricoh license server
Digital signature
2. Generate
digital signature
Program
1. Generate MD
using SHA-1
MD
Private key
3. Download
1. Check remote headers to confirm that a
remote update is being requested
Ricoh distribution server
Client PC
4. Files are sent
Program + digital
signature
Digital
signature

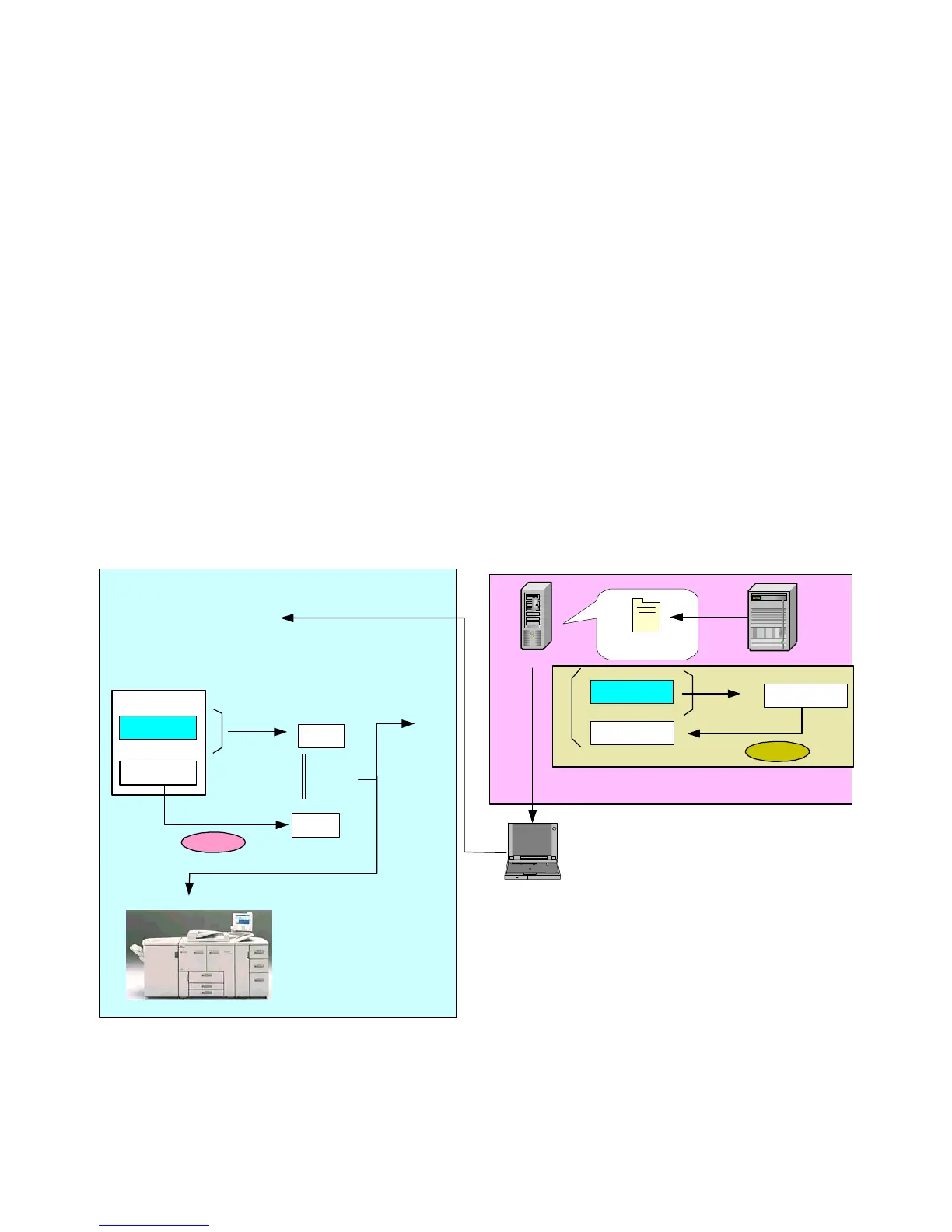

Remote Firmware Installation Performed by a Field Technician
(from a client PC)
