Ricoh D124 - Page 114

114
MO-C1 Training
Slide 114

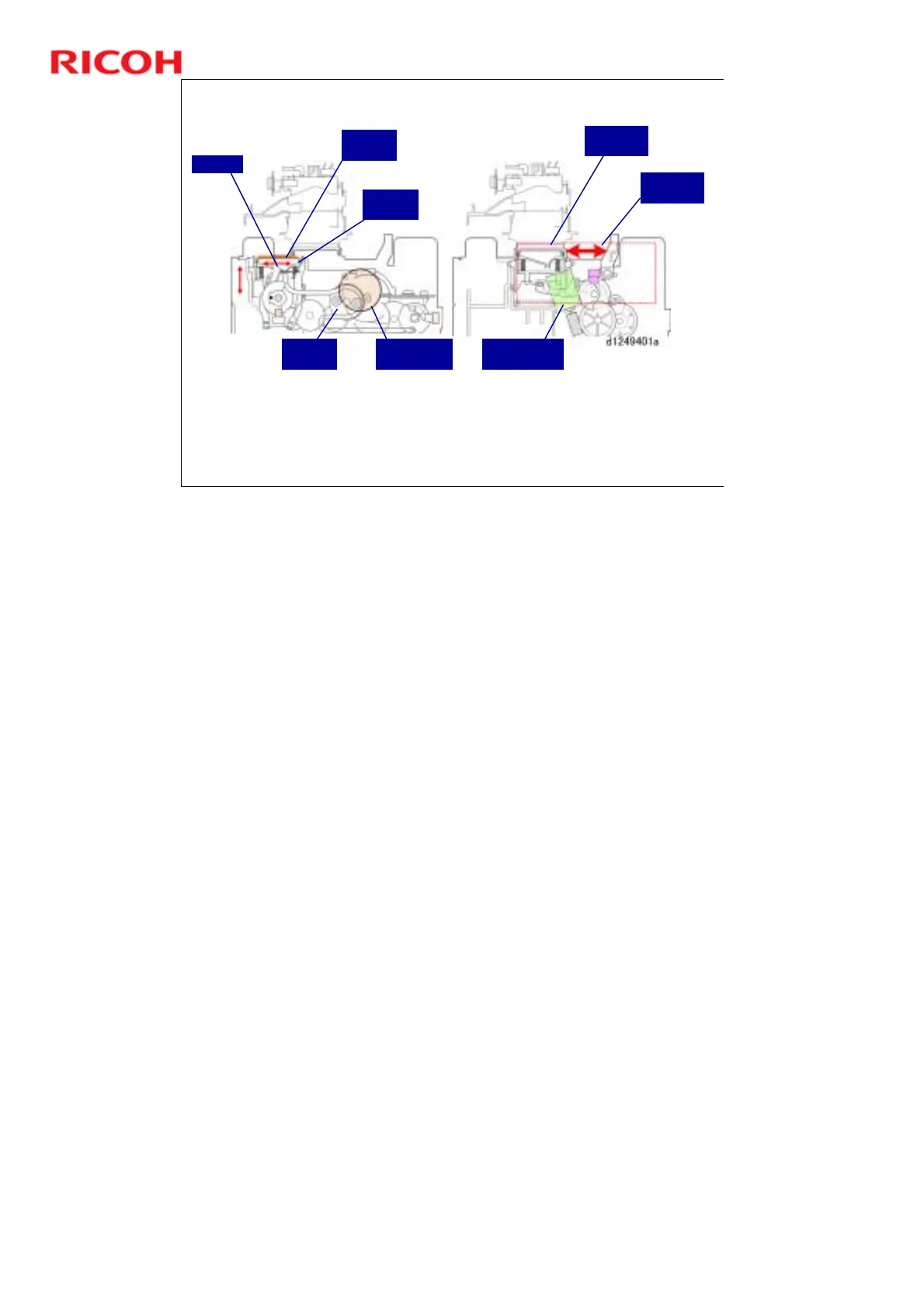

Maintenance Unit
 The maintenance unit, mounted on the right side of the machine, cleans the print
heads.
 Maintenance motor: Raises the suction cap that cleans the print heads and caps the
K1 print head, raises the rubber scraper, moves the wipers, and drives the suction
pump.
 Maintenance lift motor: Raises the print head cap for K2, C, M, and Y that protects
the print heads from drying out, and slides the cleaning unit (which includes the
suction cap) forward and backward.
Maintenance
Motor
Maintenance
Lift Motor
Print Head
Caps
Cleaning
Unit
Suction
Cap
Rubber
Scraper
Wipers
Suction
Pump
 Previous ink jet machines had only one motor, the maintenance motor.
 The maintenance lift motor and the sliding cleaning unit are new. These and
other features of the maintenance unit are explained in a later section.
 Why move the cleaning unit forward and backward?
¾ The print heads are not all in a line. This will be explained later.
