Mounting the Scanner Unit - 1
Mount the scanner unit immediately after you remove it from the
pallet and open the box. Don’t leave it lying around while you go
off for a break.
Two people must mount the scanner unit on the stand.
Remove the orange tape from both sides of the scanner unit
before you mount the scanner unit.

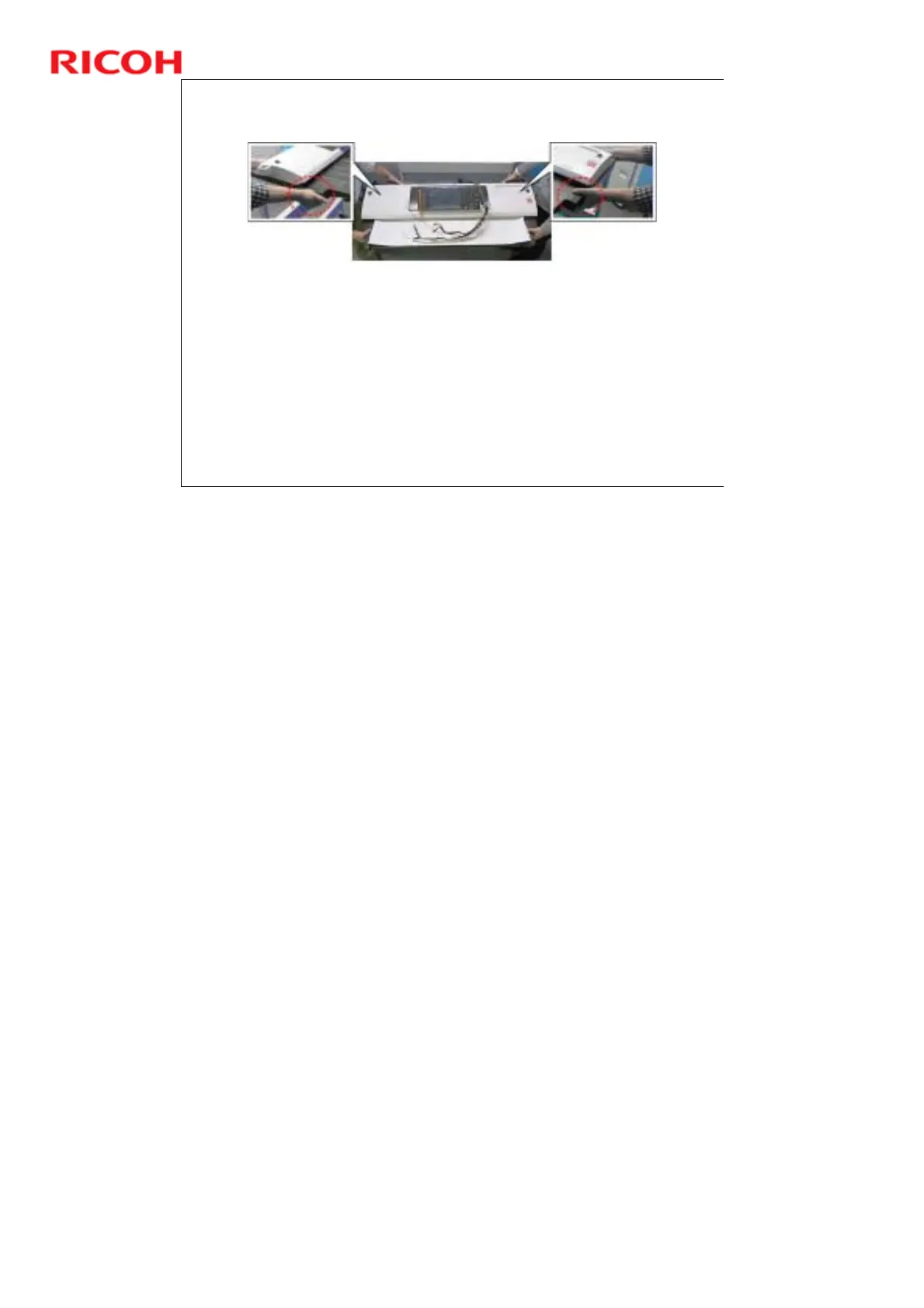

When you mount the scanner unit, keep the harnesses at the
front as shown in the photo above.
There are at least three separate boxes (scanner stand, scanner unit, main unit,
and each box contains a lot of screws). Each unit should be unpacked in the
order of installation and then installed immediately to prevent mixing screws,
brackets, parts, etc. If all the boxes are opened up and the contents all mixed up
before starting the installation, you could have some problems.
Also, it is not a good idea to lay the scanner unit down with the exposed CIS
glass on the bottom.
