Ricoh D124 - Page 56

56
MO-C1 Training
Slide 56

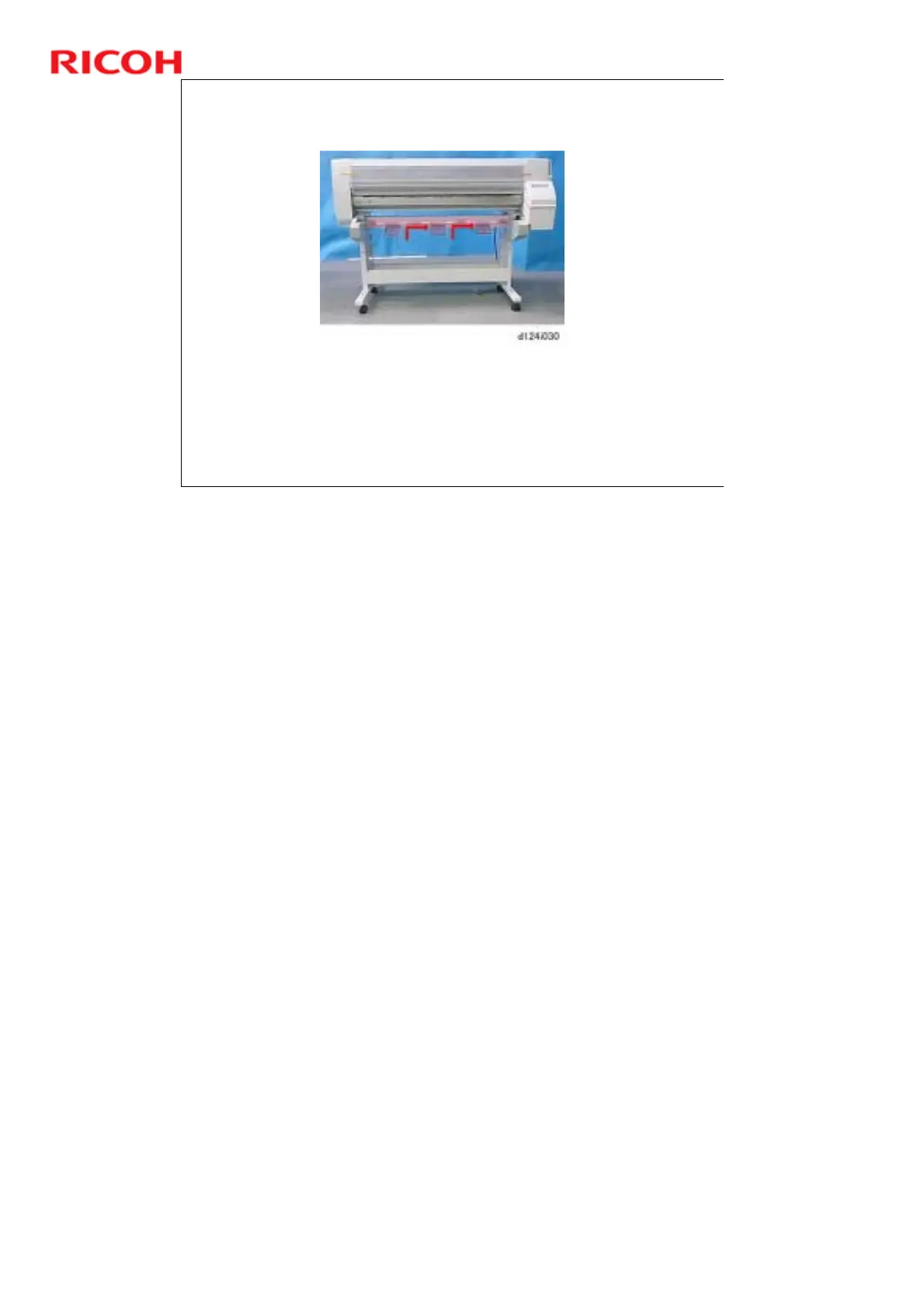

Installing the 1
st
Roll Unit - 2
 While holding the unit with both hands:
 Set the positioning pins on the left and right ends of the roll
feed unit into the cut-outs in the supports
 Push the roller feeder in.
 Slide it slightly to the right to lock the unit in place.
No additional notes
