Ricoh D124 - Page 60

60
MO-C1 Training
Slide 60
Installing the 1
st
Roll Unit - 6

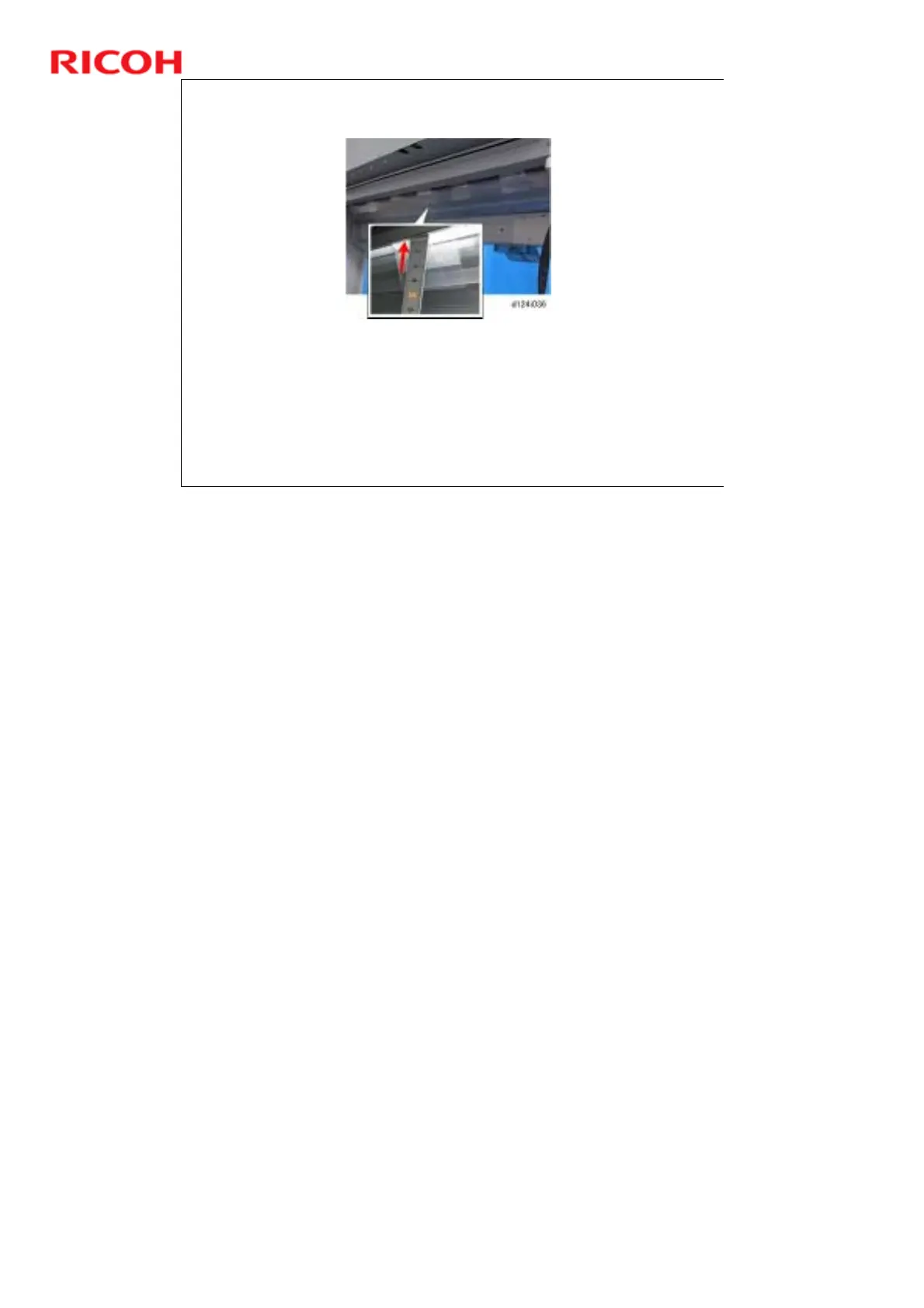

 There are six mylar tongues.
 Use a thin edge (like the end of a metal scale) to push them
up and behind the plate.
 Paper will not feed from the roll correctly if these mylars
not pushed behind the plate.
No additional notes
