CAUTION
Do not open pump release valve more than ¼ turn. Opening valve further may
cause it to disengage from pump body, which will disable manual pump.
c. Refer to Figure 2-13. Open release valve by turning it 1/4 turn counter-clockwise and
platform will begin to lower.
d. Refer to Figure 2-14. When platform reaches vehicle interior floor level turn valve
clockwise to close; do not over-tighten valve
. Do not lower platform below vehicle
floor level. The rear edge of bridgeplate must rest flat on vehicle floor.
e. Load Passenger
Carefully place wheelchair in center of platform, facing outward (away from vehicle),
and lock wheelchair brakes.

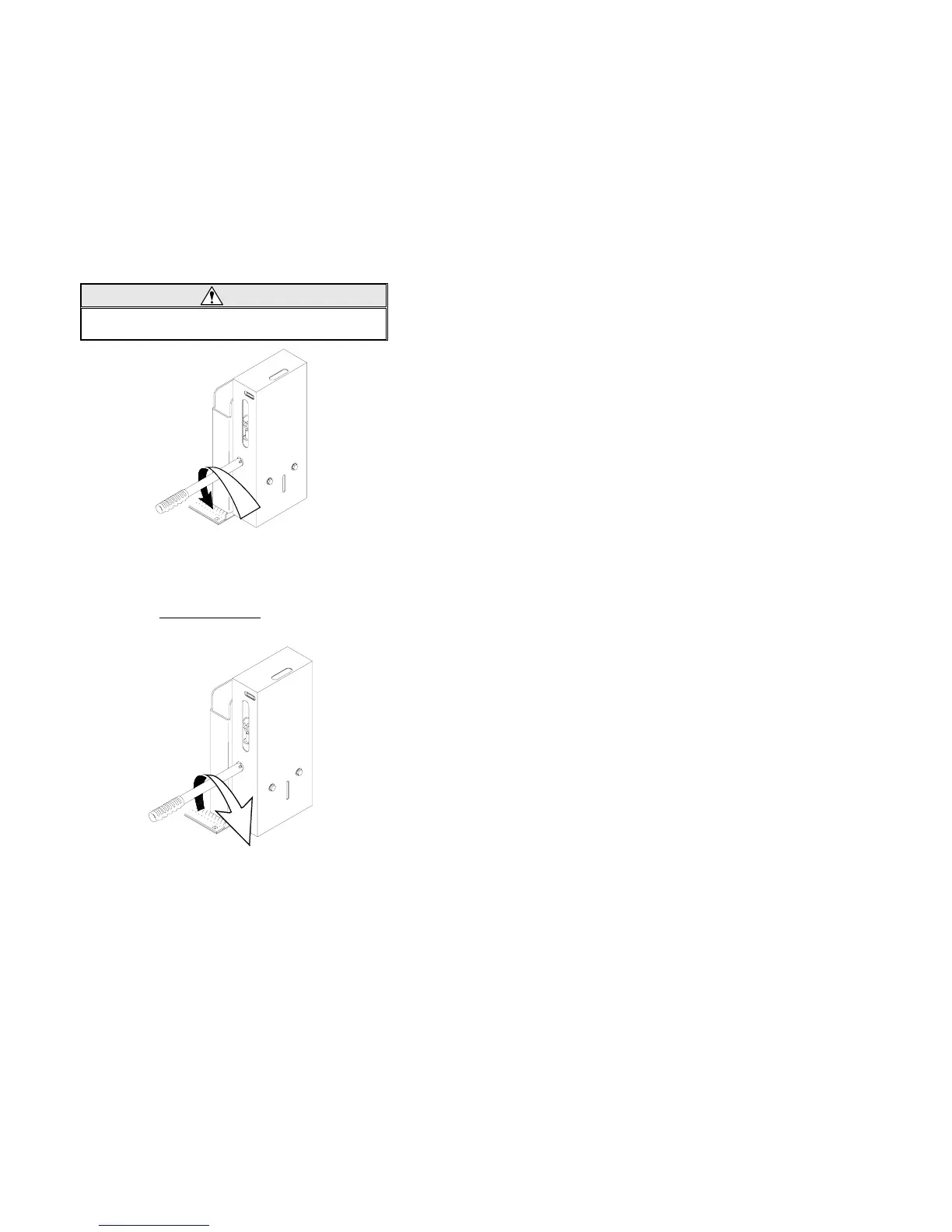

FIGURE 2-13: OPEN RELEASE VALVE
FIGURE 2-14: CLOSE RELEASE VALVE
