Mounting/dismounting of battery
Batteristatus
Button
Key

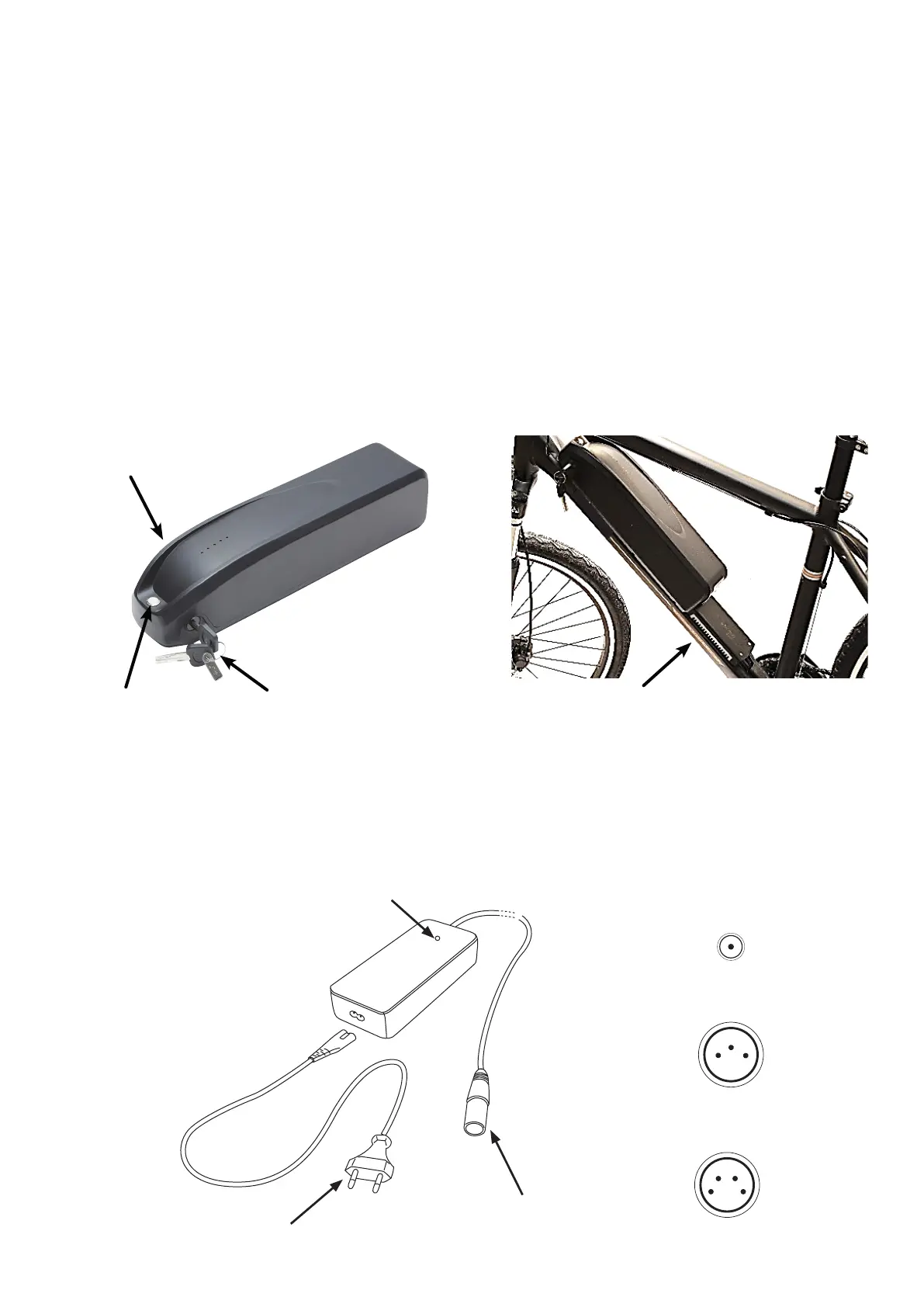

The e-bike is equipped with a downtube 2 battery.
1. Slide the battery onto the controller bracket on the frame
2. Use the key to lock the battery in place
3. Remove the battery by turning the key left and push the battery up and out
Note! The USB plug is for service and NOT for charging of other devices
Controller
bracket
Chargeplug
Battery charger
The charger will be supplied with one out of three dierent charging sockets illus-
trated below.
Charging sockets
Single
3-Pins
4-Pins
Charging socket
Power connector
Power/Charge diode
