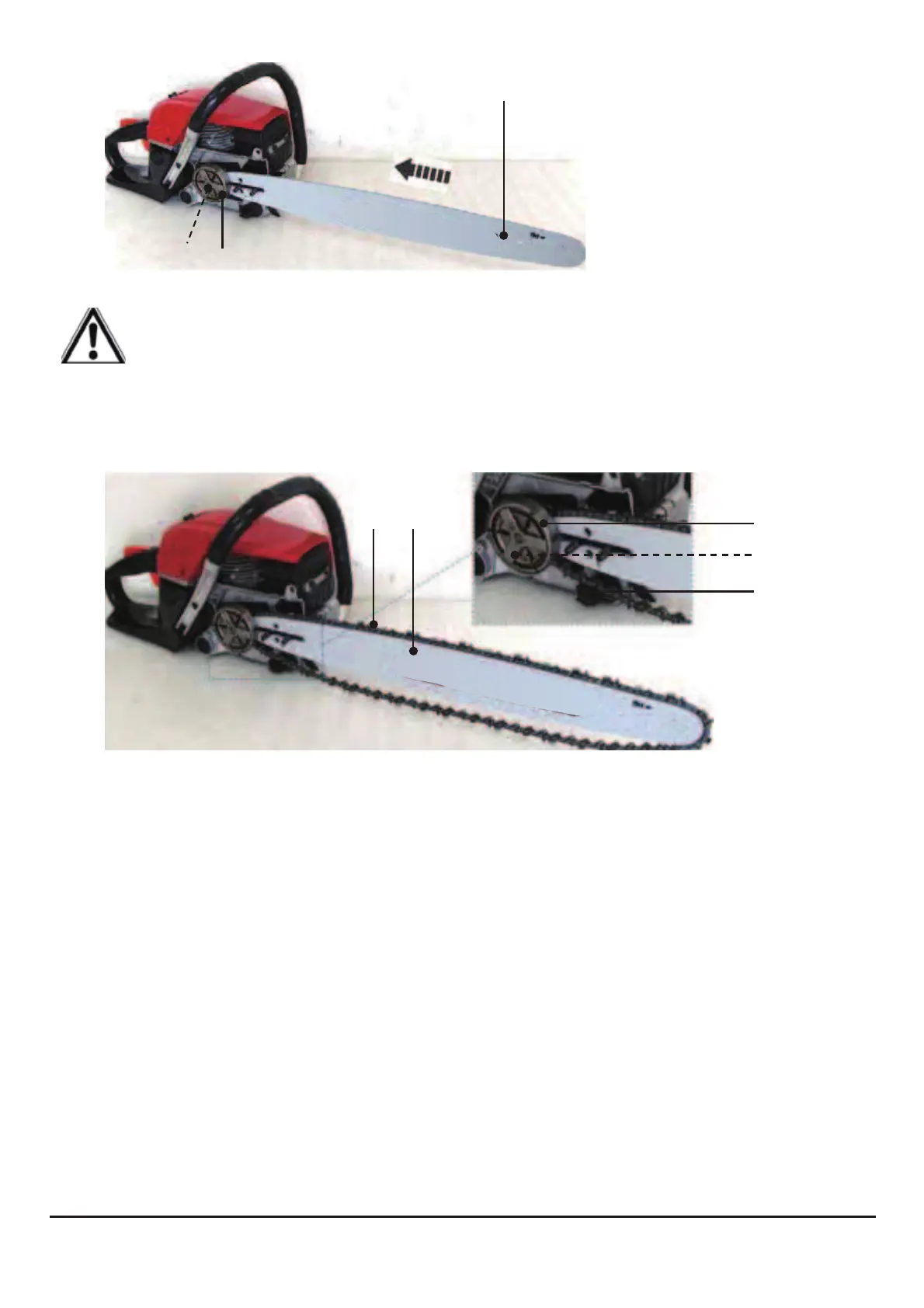

Fig. 3
WARNING! The direction of the saw chain ‘cutters’ must be as
indicated by the symbol and arrow on the guide bar!
6. Place the saw chain (7) over the drive sprocket (18) (behind the clutch (17))
and fit around the guide bar (8). Make sure the saw chain is placed above the
chain catcher (16) (Fig. 4).
Fig. 4
7. The saw chain movement is as indicated by the arrow (Fig. 5). Make sure the
chain is properly placed over the sprocket wheel (8b) of the guide bar (8).
8. Pull the guide bar (8) carefully towards the right to tighten the saw chain (7)
(Fig. 5).
8
17
18
18
24
