ASSEMBLY
Lock the brackets in position by lowering the locking levers.
NOTE: Continue to hold the mounting bracket assembly
with one hand until both levers are securely locked.
Check position and adjust, if necessary, to make sure
the weight of the saw is evenly balanced over the rails as
shown in figure 10.
Ensure the saw is fully seated and locked in position. En-
sure the four bolts holding the saw to the saw mounting
brackets are securely tightened and that the mounting
brackets are parellel to each other.
To remove saw from stand:
Raise the locking levers to unlock the saw and mounting
bracket assembly.
Lift up and away from the rear rail of the stand to disengage.
Withtheassemblytiltedslightlytowardyou,liftthefront
part of the assembly to disengage from the front rail of the
stand.

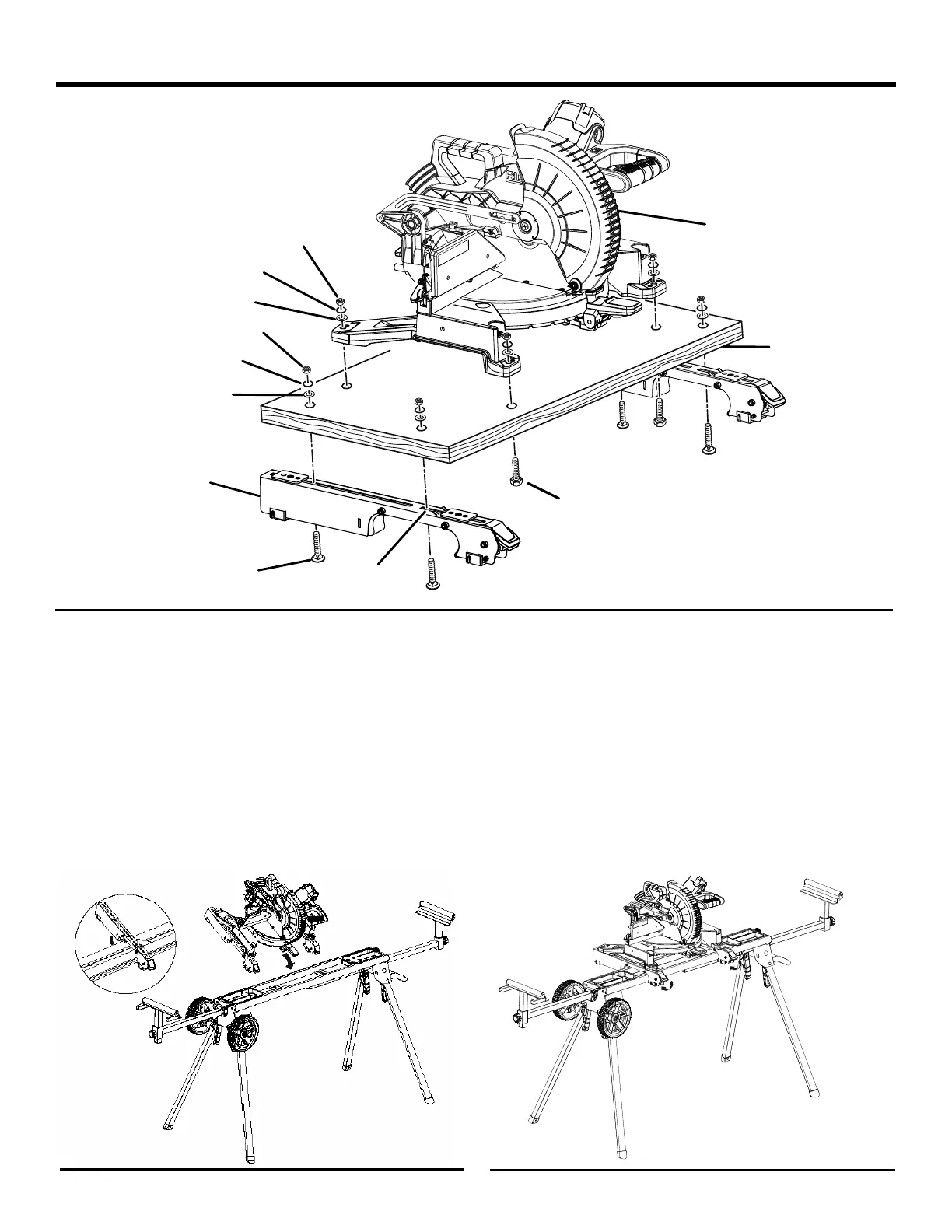

Fig. 8
MITER SAW
SAW
MOUNTING
BRACKET
SLOT
CARRIAGE BOLT
(not provided)
NUT
(not provided)
MOUNTING
SURFACE
LOCK WASHER
(not provided)
NUT
FLAT WASHER
(not provided)
LOCK WASHER
FLAT WASHER
HEX HEAD SCREW
(not provided)
Fig. 9
Fig. 10
LOWER
LOCKING LEVERS
TO SECURE
TO STAND
