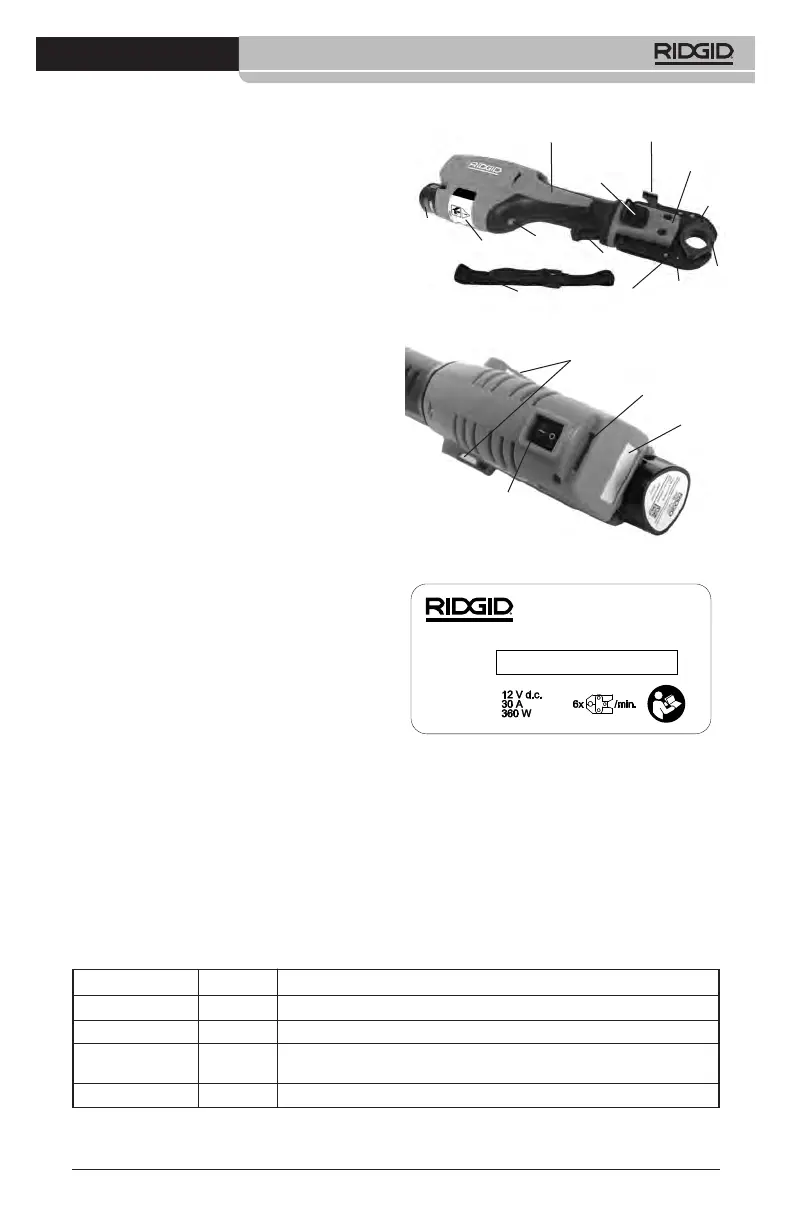

Figure 1 – PEX-One Crimp Tool
Figure 2
Figure 3 – Machine Serial Number -
The first 4 digits (Circled) indicate
the year and month of the manu-
facture. (12 = year, 06 = month).
Description
The RIDGID
®
PEX-One Crimp Tool is an elec-
tro-mechanical tool, which when used with ap-
propriate dies, is designed to crimp fittings
(such as ASTM F1807) to the required dimen-
sions for proper installation.
When operated, an internal electric motor pow -
ers a screw forward applying force to the jaws
to close the dies on the fitting. The tool auto-
matically retracts when the crimp has been
completed.
The jaw lever is used to open the head to allow
one handed operation. An adjustable hand
strap is supplied that can be mounted to either
side of the tool to improve one handed grip.
The tool head includes a die detent to allow
dies to be quickly and easily changed. A work
light is supplied for better visibility and also to
indicate the tool’s status (tool ON/OFF, temper-
ature out of range, charge battery, etc.).
5
085-003-980.10_REV. A
PEX-One Crimp Tool
Ridge Tool Company
Elyria, Ohio / USA
Electro Crimp ToolModel No. PEX-One
Serial No.
Control Marking Description
On/Off Switch
I/O Main tool power switch (I = On, O = Off)
Run Switch — Depress to crimp fitting. Release when crimp complete.
Reverse Button — Allows tool to be reversed without completing crimp. If used, crimp
is NOT complete and must be repeated.
Jaw Lever — Used to open jaws. Tool will not run when jaws are fully open.
Figure 4 – Controls Chart
Work
Light
Jaws
Hand
Grip
12V
Battery
Warning
Label
Reverse
Button
Jaw
Lever
Hand Strap
Moveable
Strap Anchor
(one per Tool)
Die
Detent
Run Switch
Side
Plate
Dies
ON/Off
Switch
Die
Caddy
Slot
Serial
Plate
Fixed
Strap
Anchors
