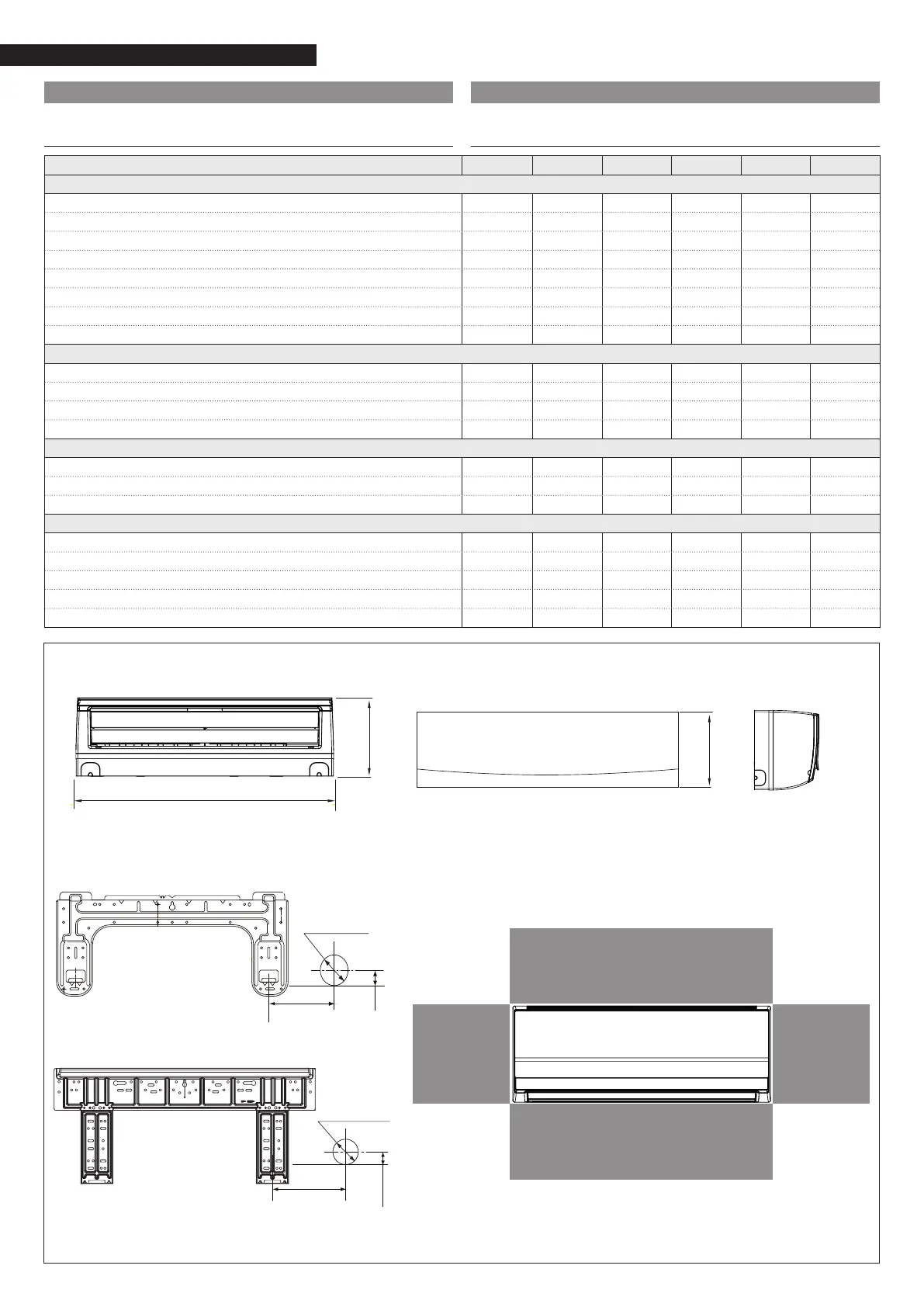

Riello AMW Series User Manual

AMW
8
Modello / Size 20 25 35 50 70
Dimensioni / Dimensions
L/ L mm 805 805 805 960 1085
P/ P mm 205 205 205 235 245
H/ H mm 272 272 272 310 330
L1 / L1 mm 100 100 100 100 100
L2 / L2 mm 100 100 100 100 100
H1 / H1 mm 50 50 50 50 50
H2 / H2 mm 2300 2300 2300 2300 2300
Peso / Weight kg 9 9 9 11,5 14,6
Dimensioni imballo / Packaging dimensions
L/ L mm 890 890 890 1036 1175
P/ P mm 280 280 280 313 341
H/ H mm 335 335 335 375 416
Peso / Weight kg 11 11 11 13,5 17,8
Dimensioni dima / Template’s dimensions
A /A mm 145 145 145 150 150
B/ B mm 70 70 70 70 70
C /C mm 30 30 30 35 35
Attacchi connessioni / Connections
Linea liquido / Liquid line Ø mm 6,35 6,35 6,35 6,35 9,52
Linea gas / Gas line Ø mm 9,52 9,52 9,52 12,7 15,88
Coppia di serraggio liquido / Liquid’s tightening torque N.m 18 18 18 18 18
Coppia di serraggio gas / Gas’s tightening torque N.m 40 40 40 55 55
Scarico condensa / Condensation discharge Øe mm 16 16 16 16 16
L
H
P
H1
L1 L2
H2
mod 20 - 25 - 35
mod 50 - 70
A
A
B
B
C
C
IT
6. Dimensioni
EN
6. Dimensions
