18
INSTALLATION
BOILER
EXHAUST

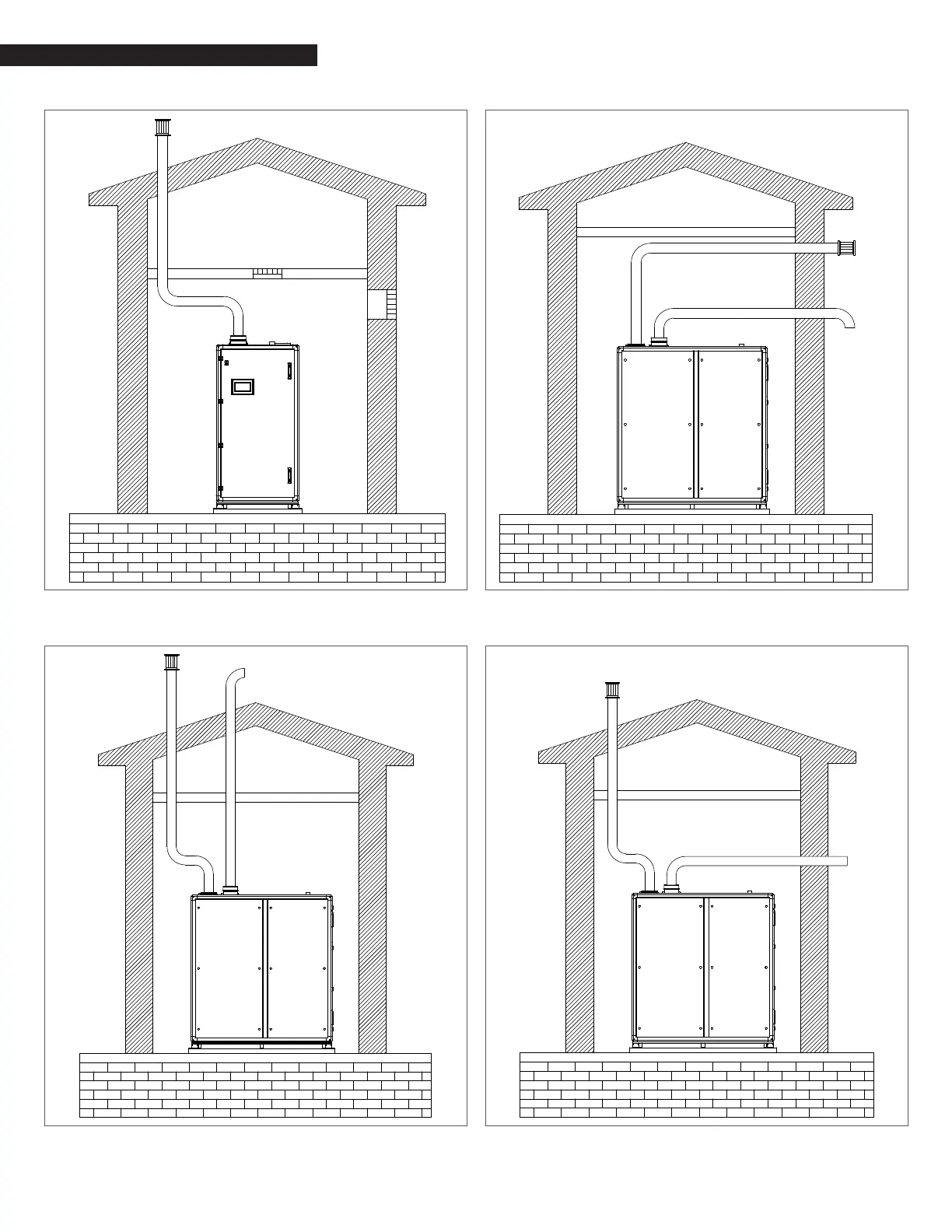

Fig. 30
All Combustion Air from Outdoors through Single Combus-
tion Air Opening
BOILER
EXHAUST
Fig. 31
Sealed Combustion located on same side with Exhaust
(vertical)
EXHAUST
BOILER
Fig. 32
Sealed Combustion located on same side with Exhaust
(horizontal)
BOILER
EXHAUST
Fig. 33
Sealed Combustion located on side wall
