INSTALLATION
System B - Larger sizes
2
1

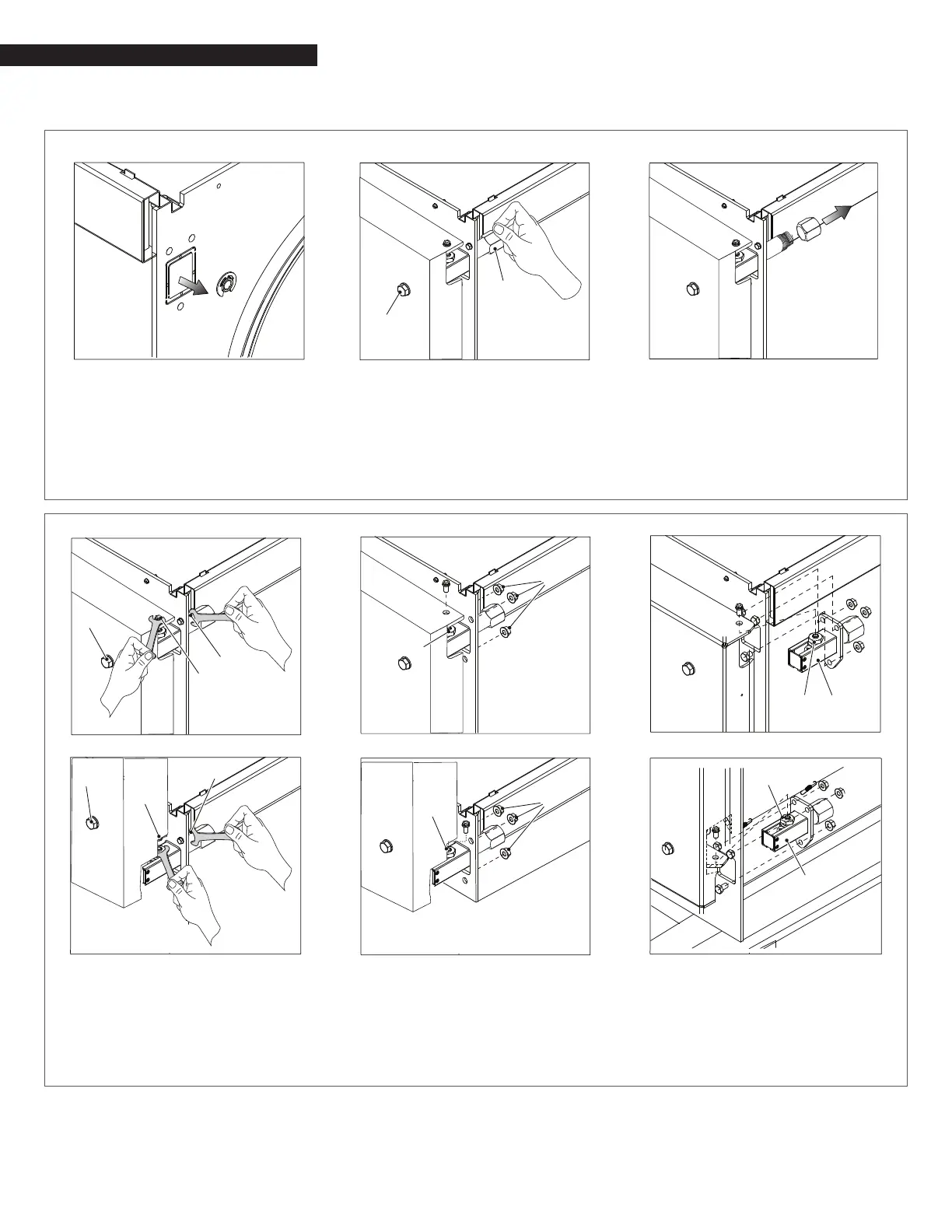

Open the door and use a hacksaw or le
to remove the cutouts (top and bottom)
on the opposite side of the head.
Hermetically close the door again by tightening the bolts (2) until the door compresses
the braided seal.
Remove the plug (1) taking care not to lose the compressed spring inserted in the
threaded tube.
2
3
4
2
3
6
6
5
6
5
6
4
4
4
Remove the bolt (3) and the nuts (4). Remove the nuts (4) that secure the hinge plate (5) to the door and remove the plate.
Remount the hinge plate on the opposite side, ensuring that the cylinder projecting above the nut (6) enters into its slot. If necessary
tighten the nut (6) to raise it. Lastly, tighten the bolt (3).
Also need to reattach nuts (4) on the new side.
