Riester ri-focus LED - Focus Adjustment and Mirror Replacement

22
2.3.5 Battery compartment cover

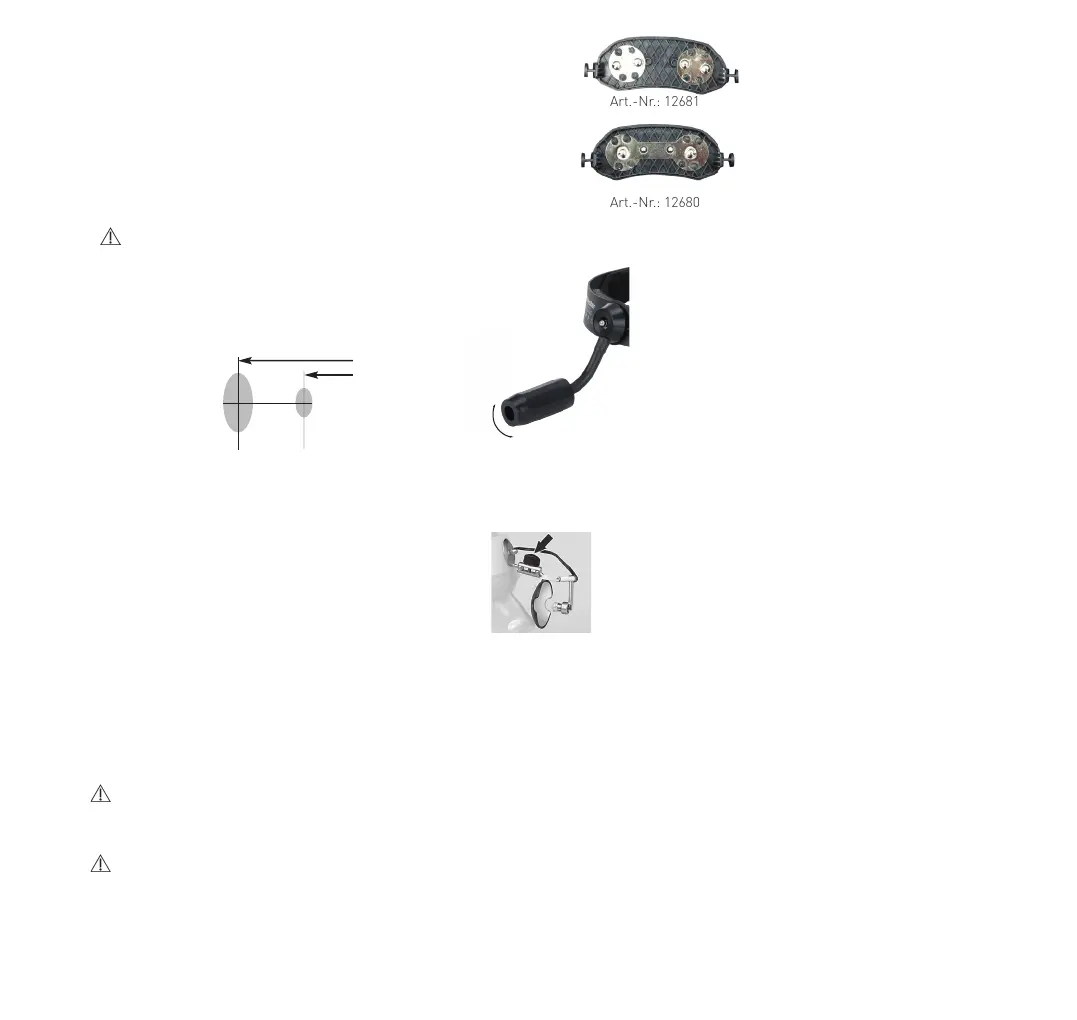

Battery compartment cover for AAA (rechargeable) batteries (4 units) Art.-Nr.: 12681
Battery compartment cover for CR123 batteries (2 units)
Art.-Nr.: 12680
Attention:
Make sure the correct battery compartment cover is used, otherwise the device will not work.
2.3.6 Focusing the ri-focus® LED
Turn the front of the lamp to adjust the focus.
clar N 55
Manual movement of the light fixture towards and away from the mirror.
2.3.7 Replacing the headlight/head mirror
ri-focus® LED
The lamp head is integrated to the headband. To replace the lamp head, the headband must also be replaced.
Clar N LED
Loosen the plastic screw to open the clamp on the headband until the ball joint on the mirror can be inserted. Fix the mirror in position by tightening the plastic
screw on the headband.
Caution!
Before replacing the entire mirror, the electrical plug located at the joint of the light must be removed. Once the mirror has been replaced, reinsert the plug.
If the lamp does not work after plugging in the cable, the plug must be inserted offset by 180°.
Caution!
Never touch the bulb during operation.
They can get very hot!
While using the ri-focus® LED model, make sure you only touch the focusing ring on the front of the lamp head or the handle on the back of the lamp head. All other
parts can become very hot.
With the clar N model, you can touch the following parts during operation: the plastic shell on the mirror, the adjusting knob and the swivel arm.
